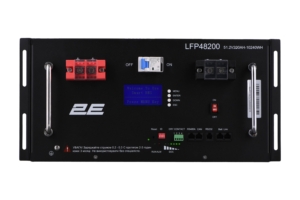

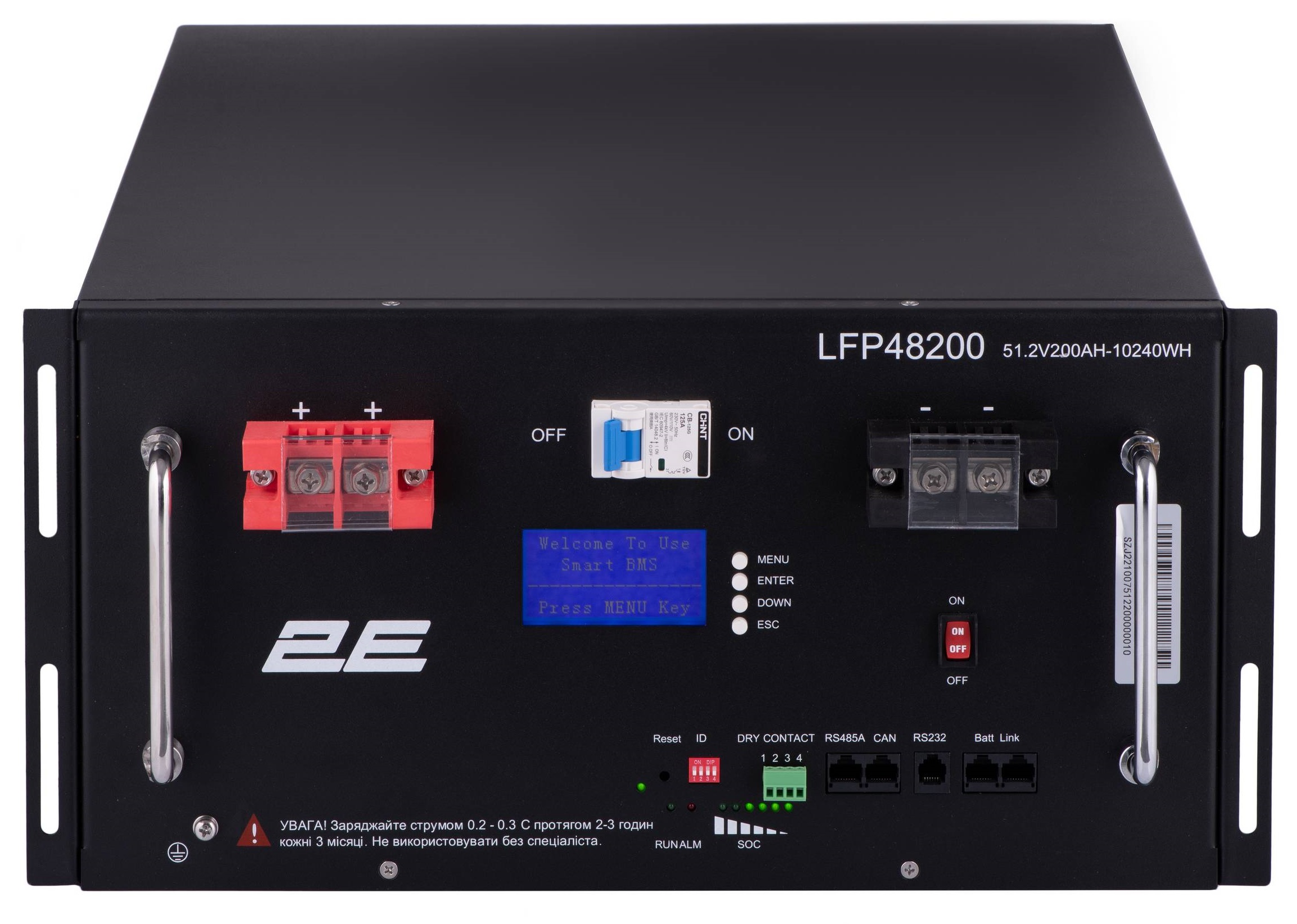

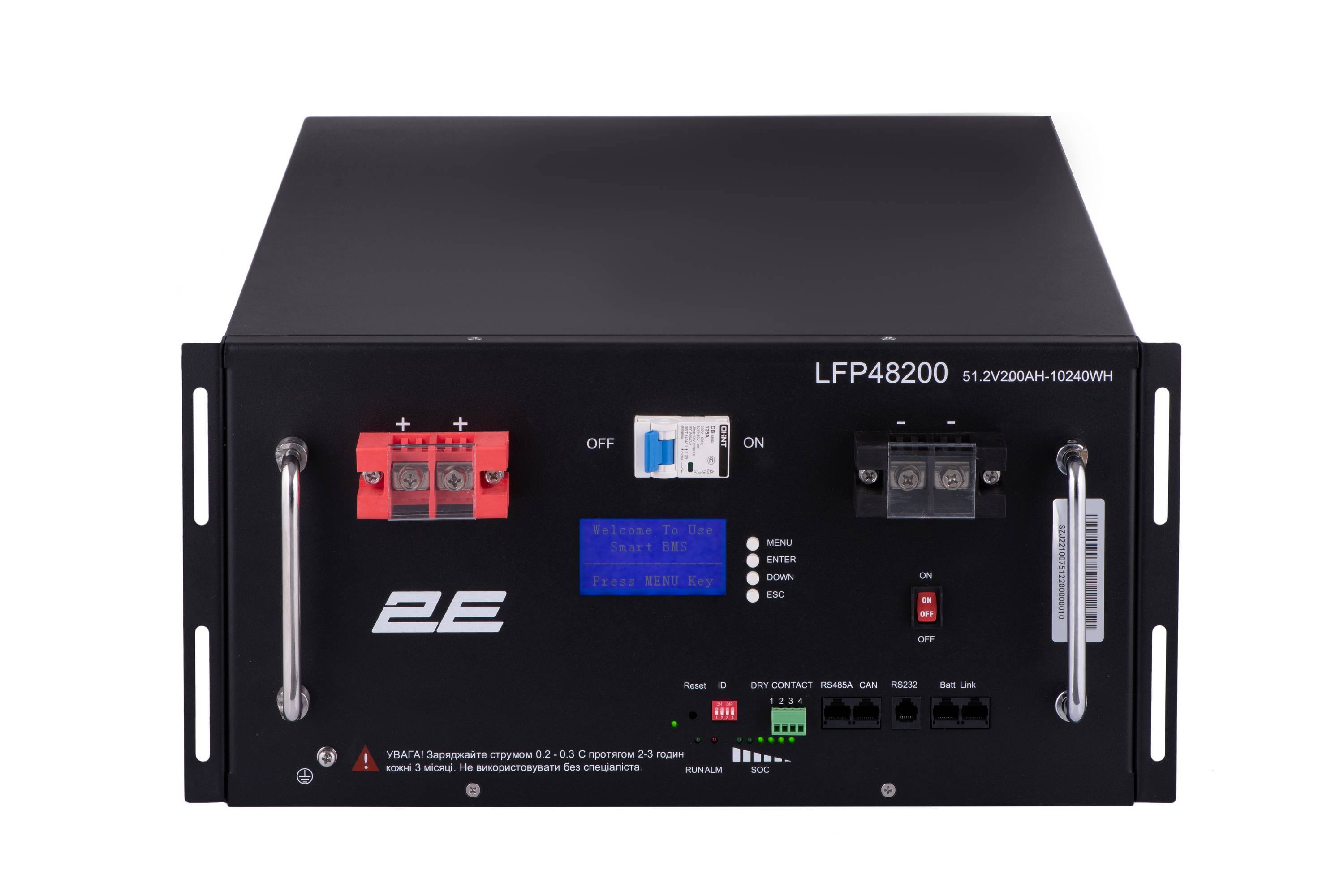

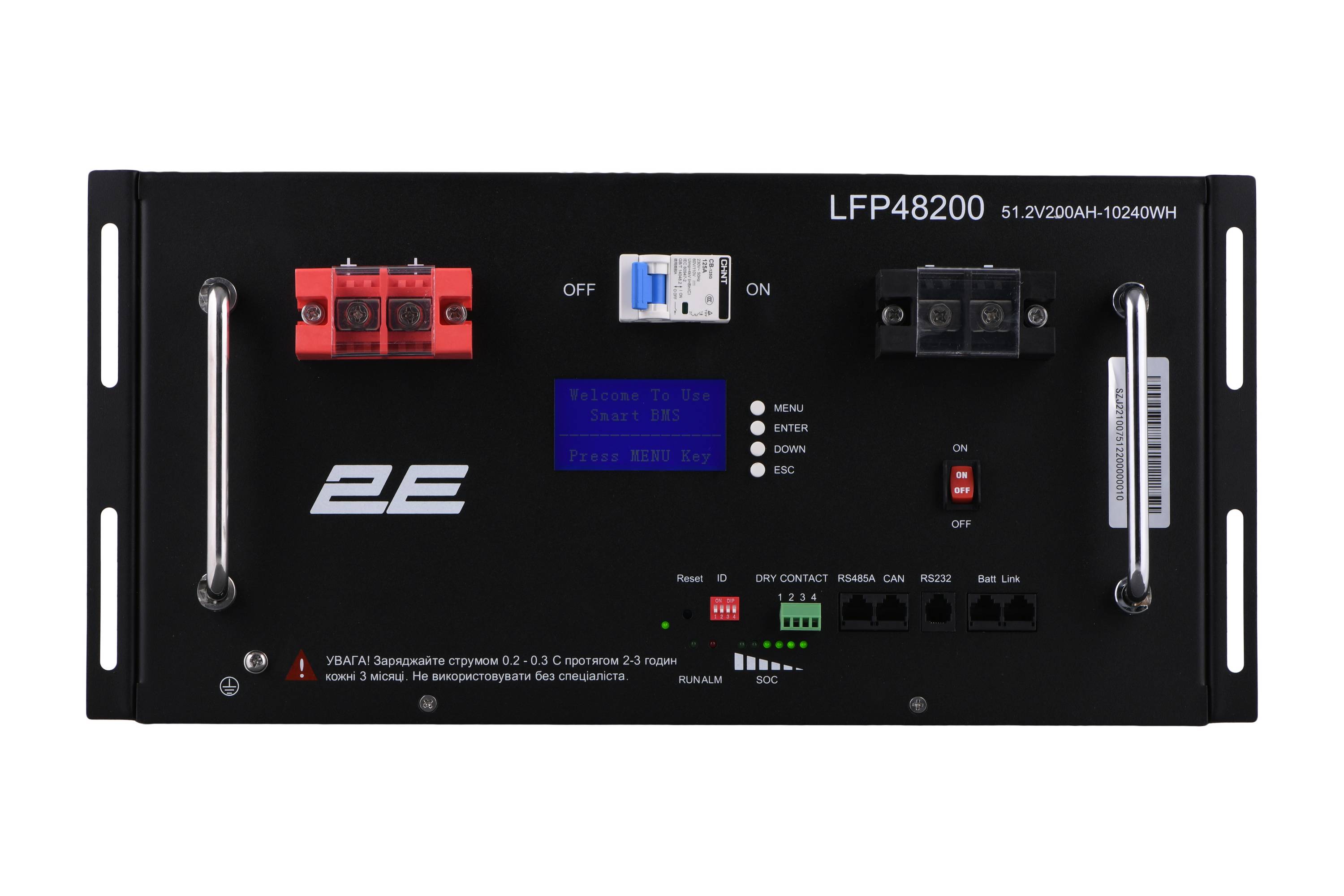

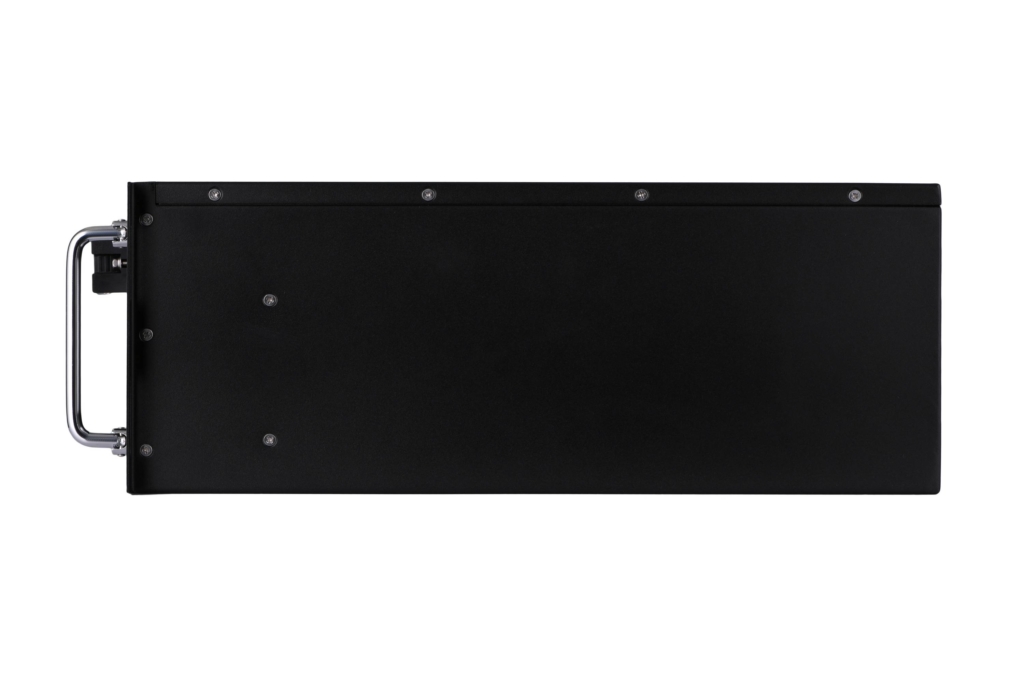

2E-LFP48200 48V/200Ah 19″ LiFePo4 Battery

Product code: 2E-LFP48200-LCD

LiFePo4 model 16S is a rechargeable battery for uninterruptible power systems in the telecommunications, conventional and alternative power supply sectors. Compatible with major inverter systems from Vicrton, Voltronic, Luxwell, etc. Mounting Type: Stand/Wall. M6 connection terminals. Rated voltage is 51.2 V. Rated capacity is 200 A hour.

69 060 uah.*
Main characteristics:
A type Rechargeable battery
Rated voltage 51.2 V
The nominal capacity 200 Ah (0,2С до 43.5В при t-25С)
Mounting type 19 ”rack / wall-mounted
Features protection degree IP35
Maximum charge current 150A

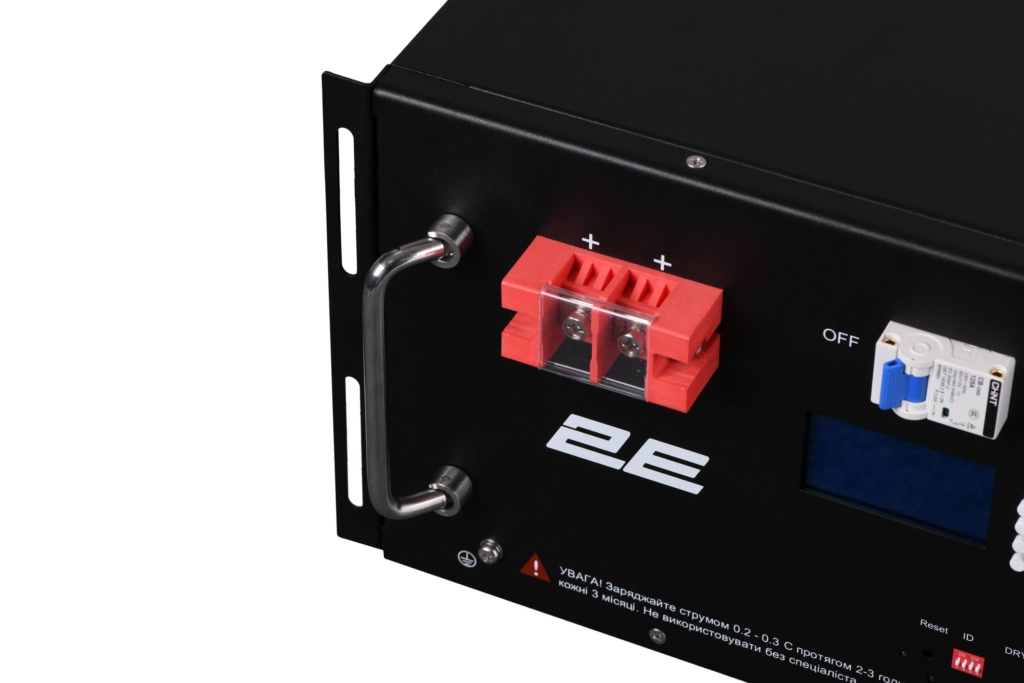

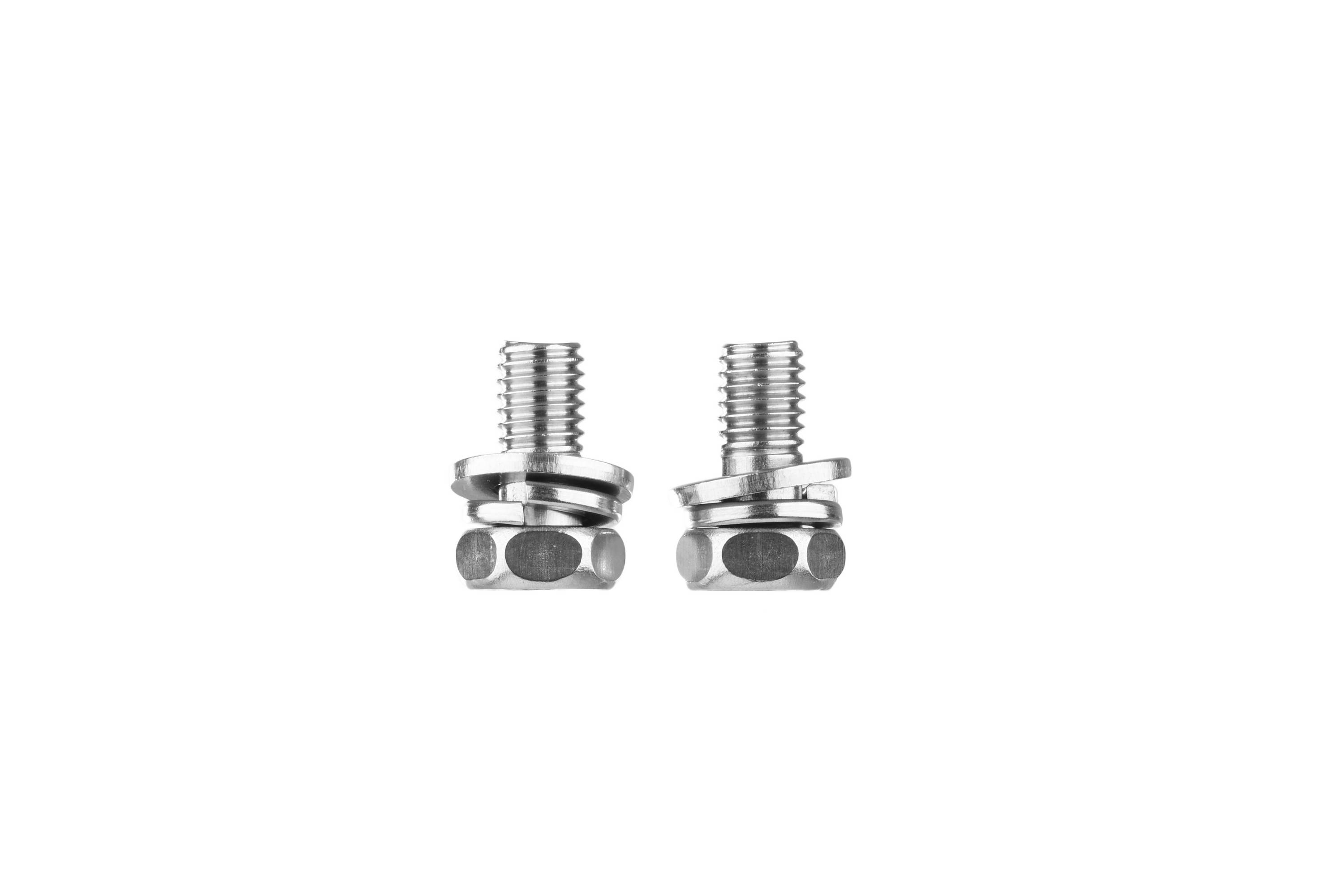

Type of terminals М6
Number of charge-discharge cycles >4000 cycles at 1C, DOD=80% / SOH=80% / >6000 cycles at 0.25C, DOD=80% / SOH=80%
Operating voltage range 45-57
Charge current (rated) 20
Data exchange interfaces RS232 / RS485
Indicators ALM / RUN / SoC
Signals and warnings overcharge / short circuit / over current / over temperature protection / low temperature protection / reload
Cooling passive
Additionally:
Discharge current (pulse) 200 А
Maximum discharge current 150 A
Parallel connection to 16 pcs
Serial connection not allowed
Cut-off voltage 43.5
The optimum operating temperature -3°С - +65°С заряд / -23°С - +65°С разряд / +10°С - +25°С рекомендовано

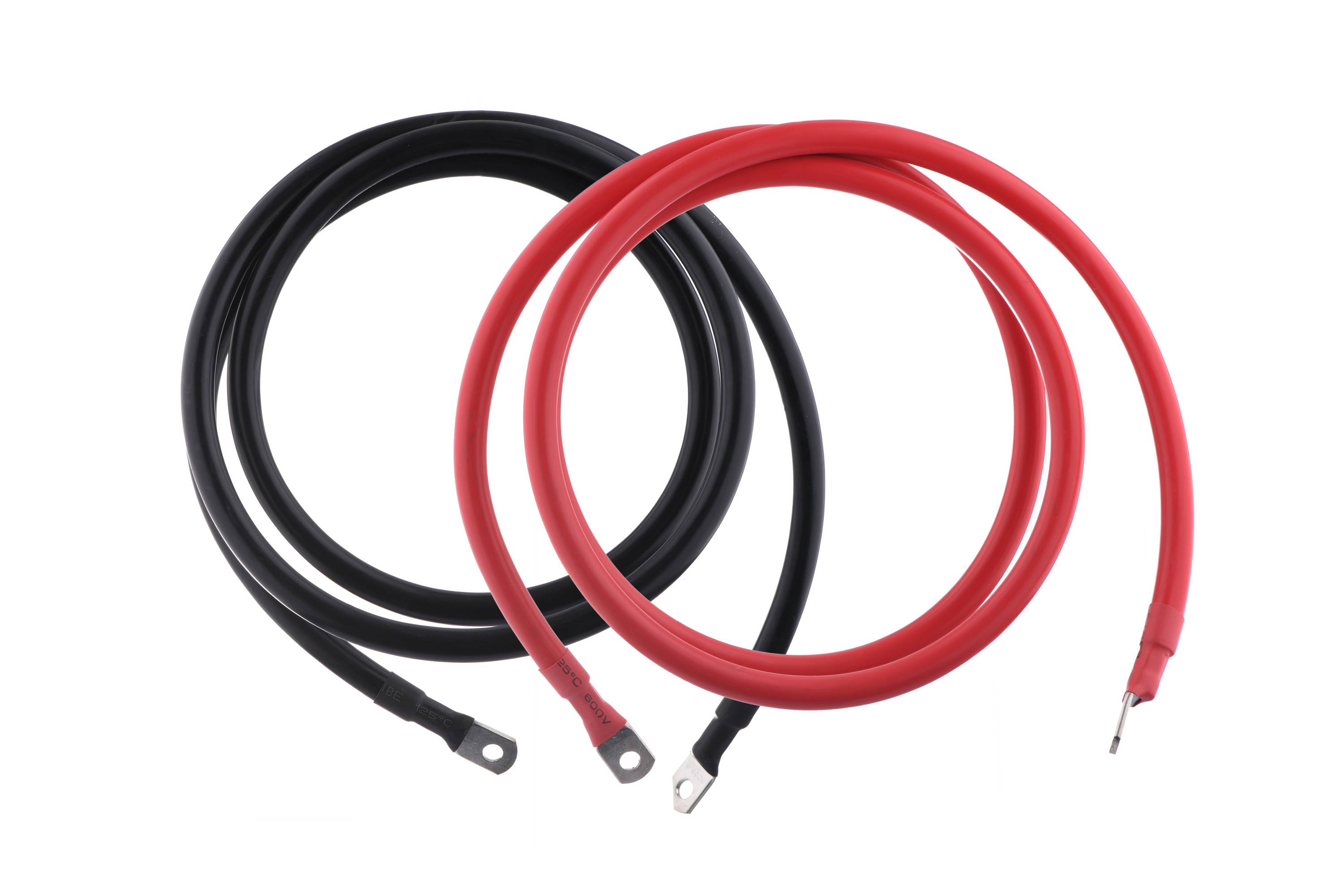

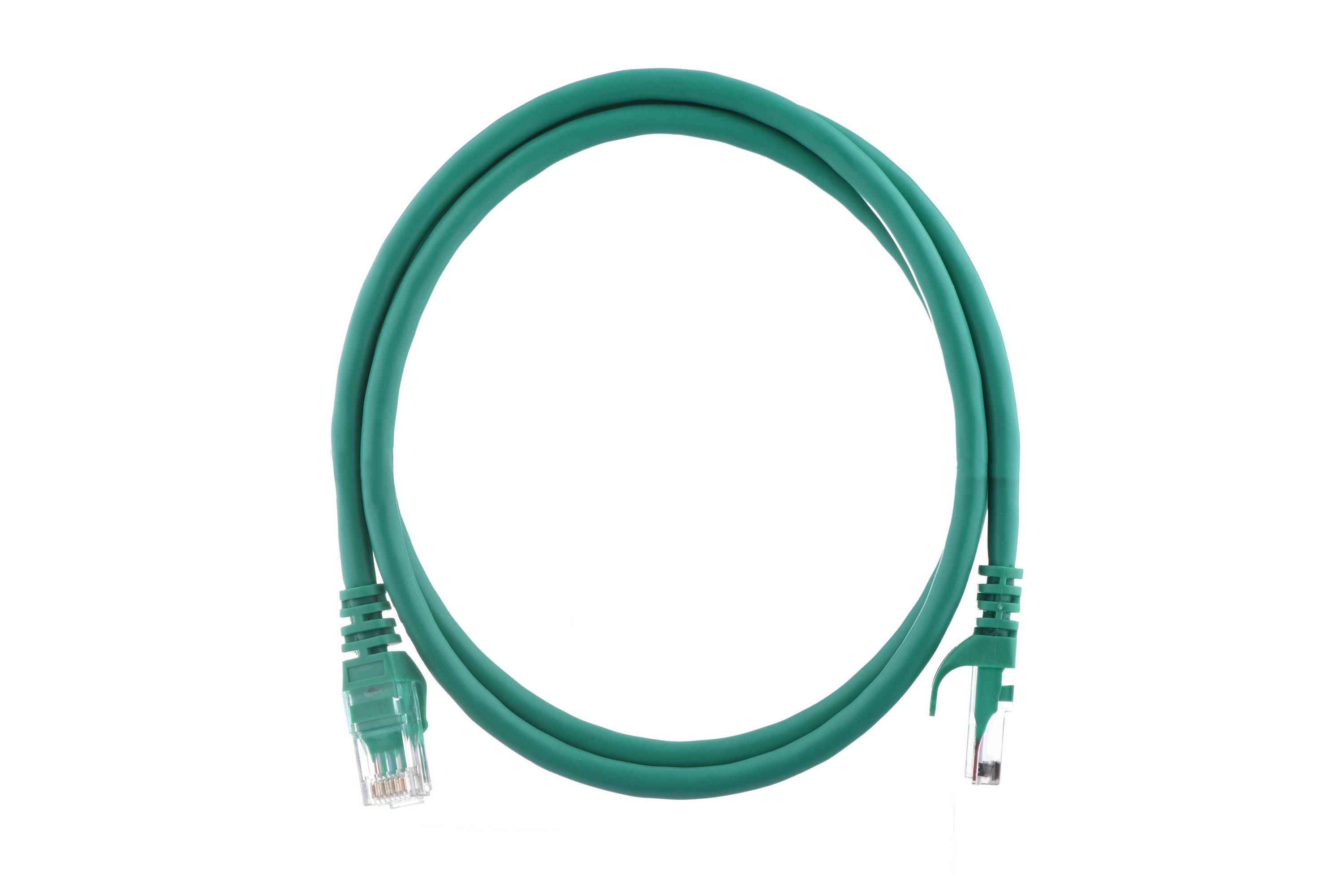

Package Contents battery 1 pc / LCD screen інтегрований у батарею 1 шт / DC wires червоний/чорний 2 шт / communication connection cable 1 pc
Height <4000 m
Humidity 5-95% without condensation
Certification ISO9001 / ISO14001 / CE / TLC / TÜV / IEC62133
Physical characteristics:
Colour black
The weight 82 kg

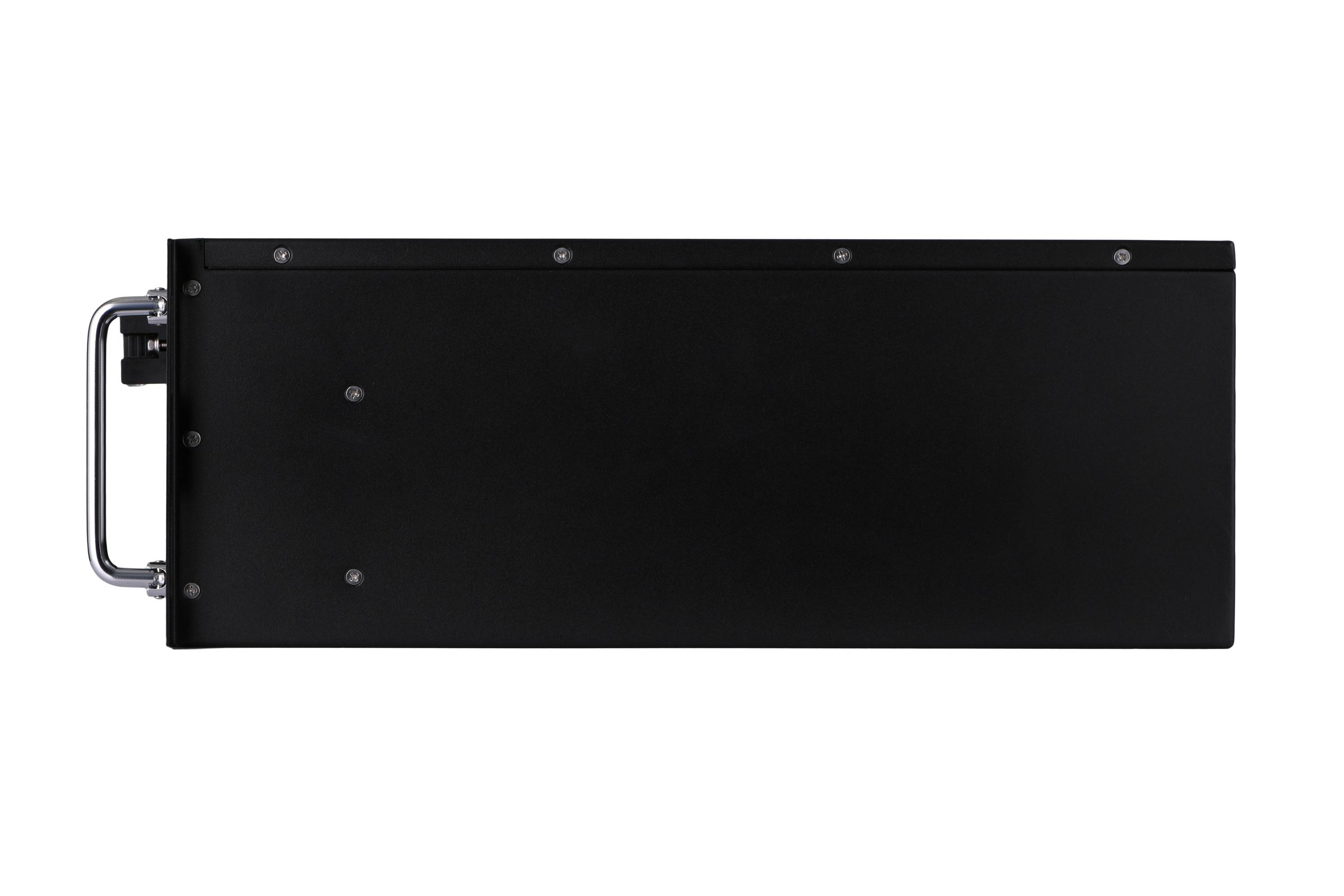

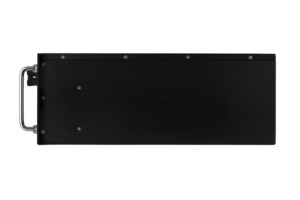

Dimensions (LxWxH) mm 226 x 442 х 580

Interfaces, high density

Communication interfaces: optional RS232/RS485 (CANBUS). Indicators: ALM/RUN/SOC. High energy storage density with a weight of 82 kg and dimensions (w x h x d): 442 x 580 x 226 mm. High charge and discharge currents (short charge period). Long service life and high cycling


Operating limits

Wide temperature limits of performance: charge from -3 °С to +65 °С / discharge from -23 °С to +65 °С; recommended: from +10°С to +25°С. Parallel connection of up to 16 pieces is possible. Lifetime predictability controlled by BMS.
