2E SD10000RT UPS, 10kVA/10kW, RT4U, LCD, USB, Terminal in&out 2E-SD10000RT
In view of the military present, the source of uninterrupted power supply of 2E brand is a must-have for business and the stable functioning of critical public institutions, in particular, maternity hospitals, laboratories, etc. The model has a power of 10 kW. 2E SD10000RT type: online double conversion. UPS of this class provide the most reliable protection of the connected equipment against interruptions in the power grid, which undoubtedly compensates for the costs of its purchase and installation.
| Device type | online with double conversion |
| View | Server and network equipment UPS |
| Mounting type | classic (tower) / rack mount |
| Typical recharge time (up to 90%) | 9 h |
| THDi | ≤ 5% |
| SPS | ≤ 1% linear load / ≤ 4% non-linear load |
| Overload | 105% - 110% for 10 min / 110% - 125% for 1 min / > 126% - 150% for 30 s |
| Input | Single-phase three-wire (1F + N + PE) |
| Input voltage range | 110-176 V лінійне зниження характеристик між 50% та 100% навантаження / 176-288 V без погіршення характеристик |
| Input frequency | 40-70 автоматичне визначення |
| Peak current | 1 A |
| Output | Single phase (1F + N) |
| Output voltage | 220 V / 230 V / 240 V / 208 V |
| Max. Output Power | 10000 VA |
| Effective Output Power | 10000 W |
| Output frequency | 50-60 ± 0,1% Гц у режимі роботи від батареї |
| Maximum efficiency | ≥ 95% (100% load) / ≥ 94% (100% load) / ≥ 98% (ECO mode) |
| Type of output power | Terminal block |
| Established batteries | 16 pcs x 12B 9 Aг |
| Connecting an external battery | ✔️ 16 шт x 12B 9 Aг (опціонально) |
| Protection | Short circuit protection / Overload protection / overvoltage protection / discharge/overcharge protection перевірки вентилятора / IP 20 |
| Interface | USB / RS-232 / optional SNMP adapter |
| Additional information | microprocessor control / ECO mode |
| Display | ✔️ LCD |
| Noise level | 58 dB |
| Operating temperature | 0-40 °C |
| Relative humidity | 0-95% (non-condensing) |
| Colour | black |
| Dimensions ( HxWxD ) | 176 x 440 х 660 |
| Battery warranty | 1 year (2 роки на електроніку) |
| The weight | 63 kg |
The operation principle is that the input AC voltage is converted by the rectifier into DC, and then by the inverter – back into AC. Even in the presence of large deviations in the input voltage, 2E UPS continues to supply the connected devices with a pure sinusoidal stabilized voltage. The lack of switching between modes (mains to battery) allows to minimize the risk of damage to «sensitive» equipment. In particular, such UPSs are used for uninterrupted power supply of medical equipment, for data centers and enterprises with a continuous production cycle. The input voltage range is: 110 ~ 176 VAC (linear derating between 50% and 100% load); 176 ~ 288 VAC (no degradation). Input: single-phase three-wire (1F + N + PE). Output: single-phase (1F + N), adjustable voltage 208/220/230/240 V is provided.

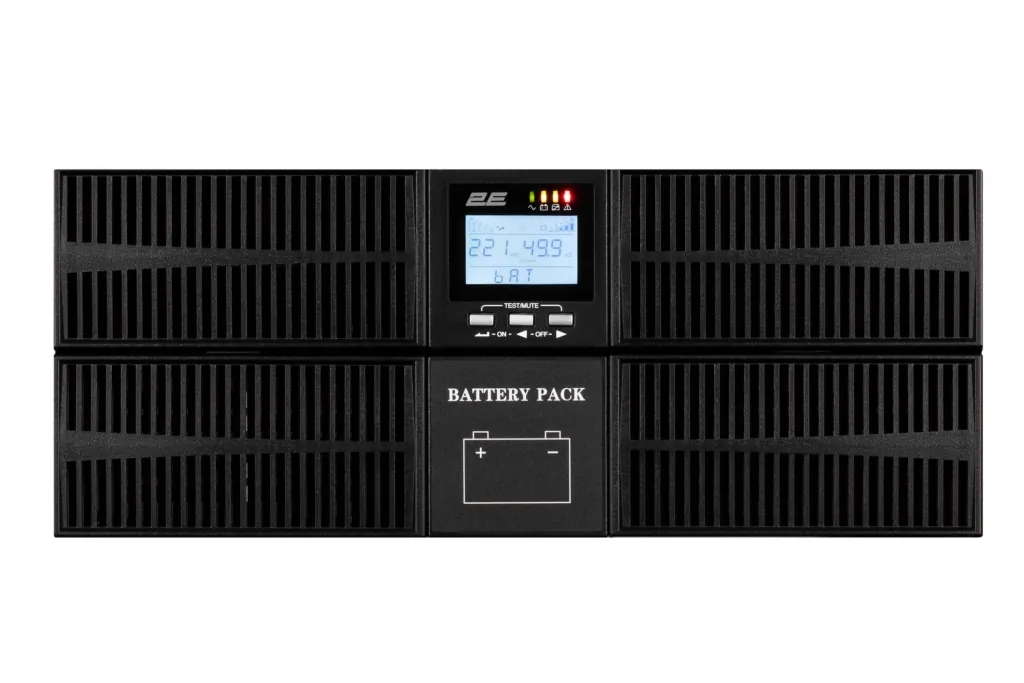

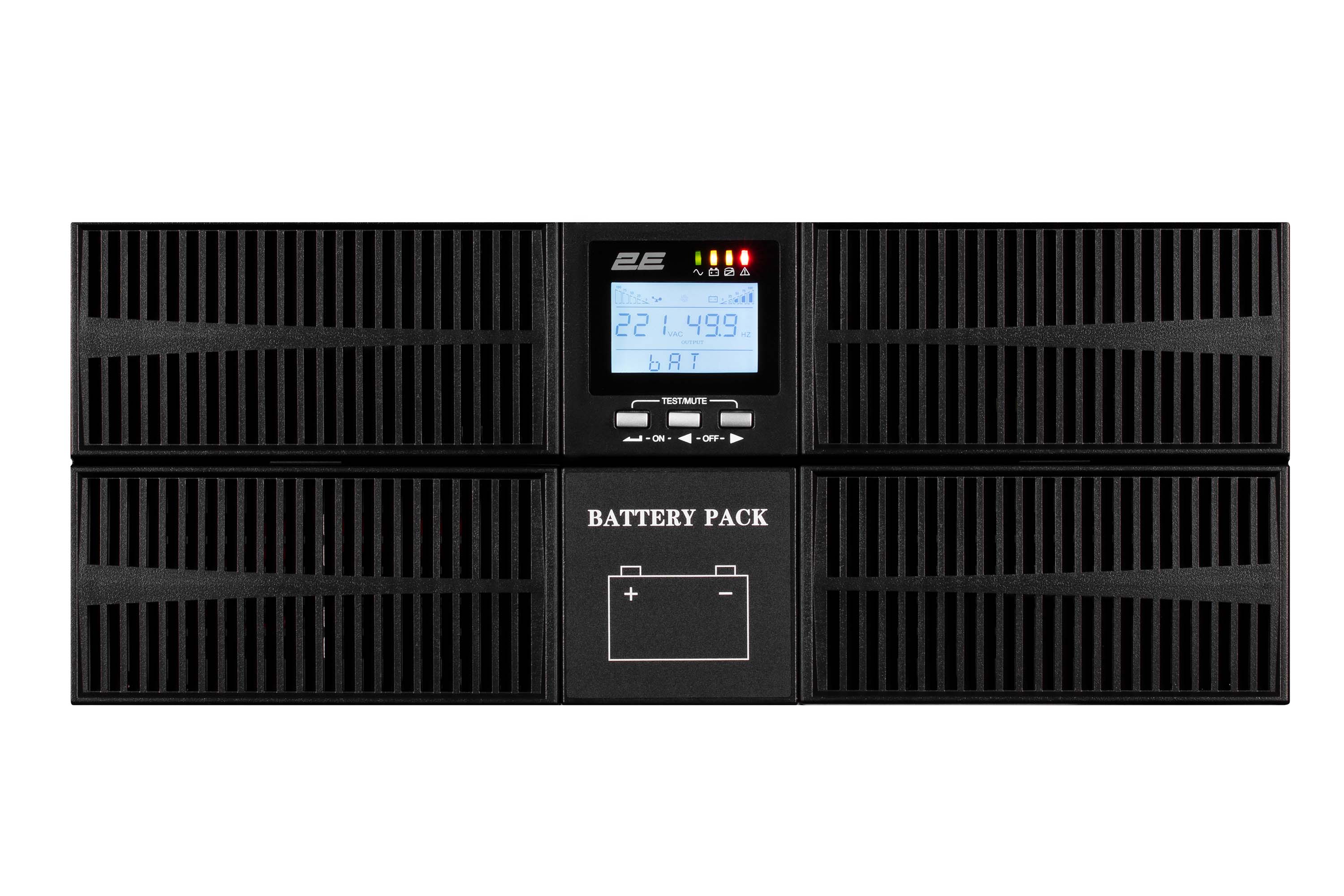

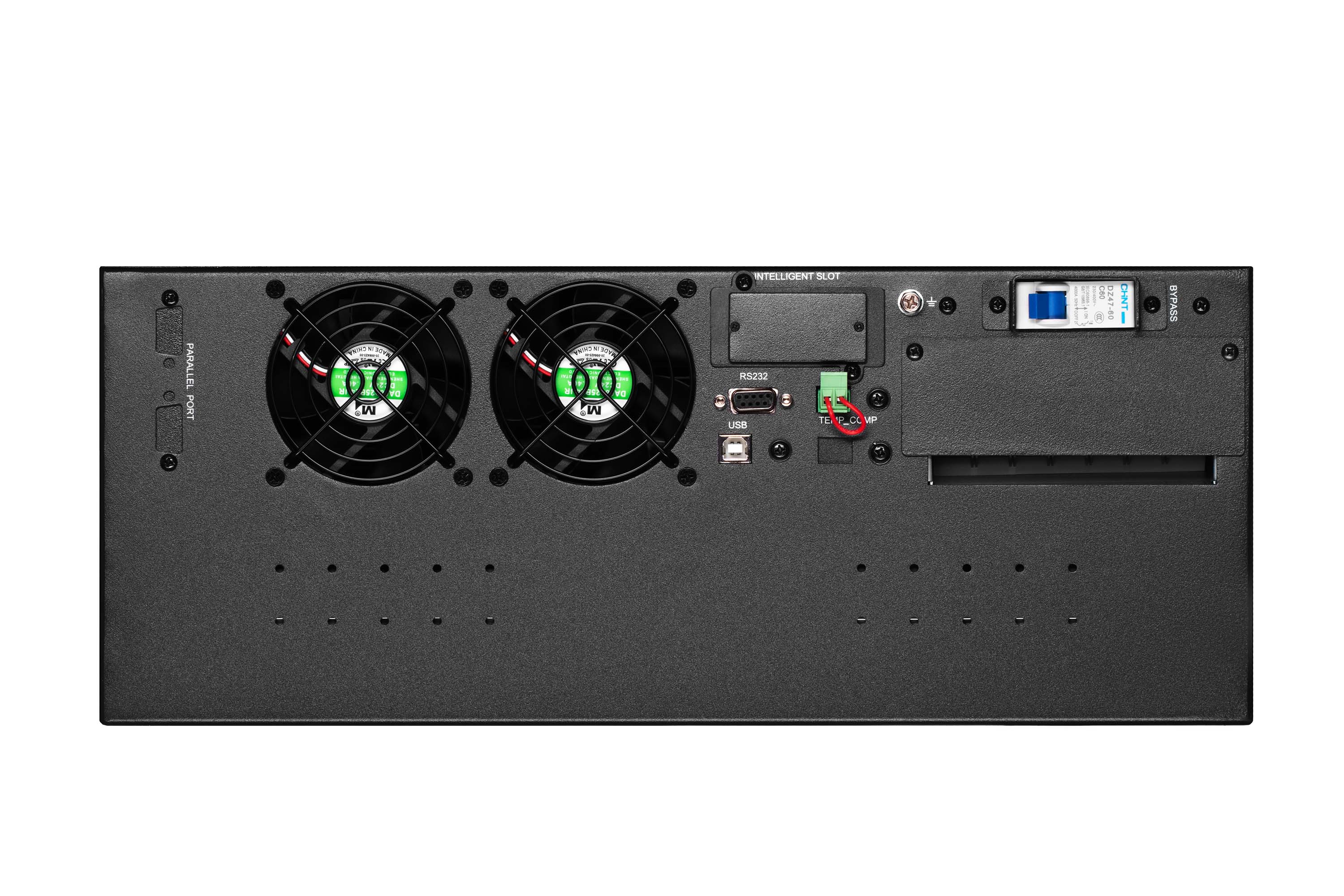

The operating frequency range of 2E SD10000RT model is within 40 ~ 70 Hz (automatic detection). The UPS is equipped with sixteen batteries (12 Bt/9 Ah), which restore the charge to 90% in just 9 hours! The charging current (max.) is 1 A. In addition, various RS-232, USB and an optional SNMP adapter are provided. A multi-function LCD display built into the front panel displays the device’s operating status, including error codes.

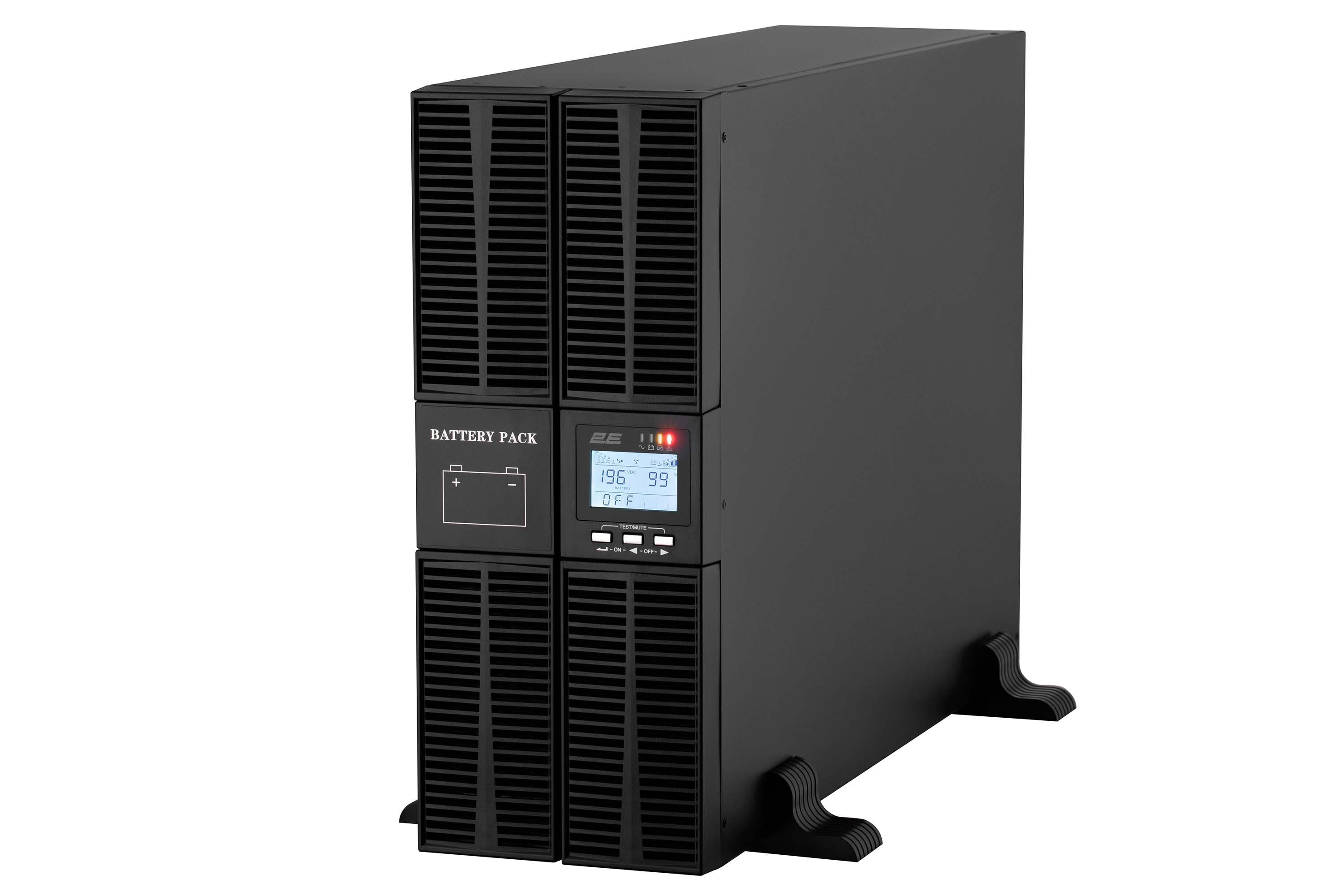

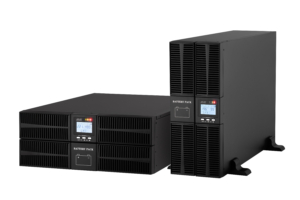

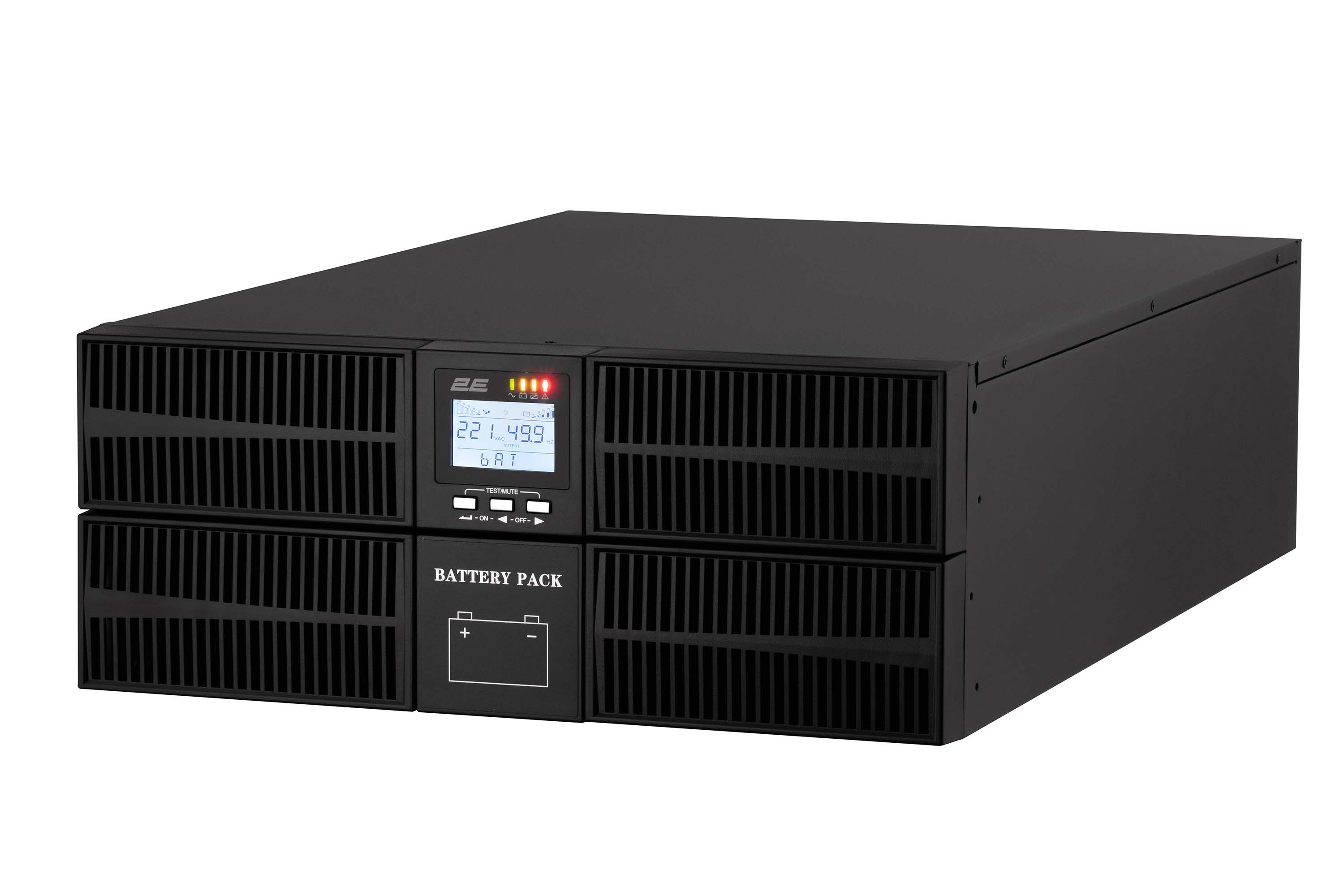

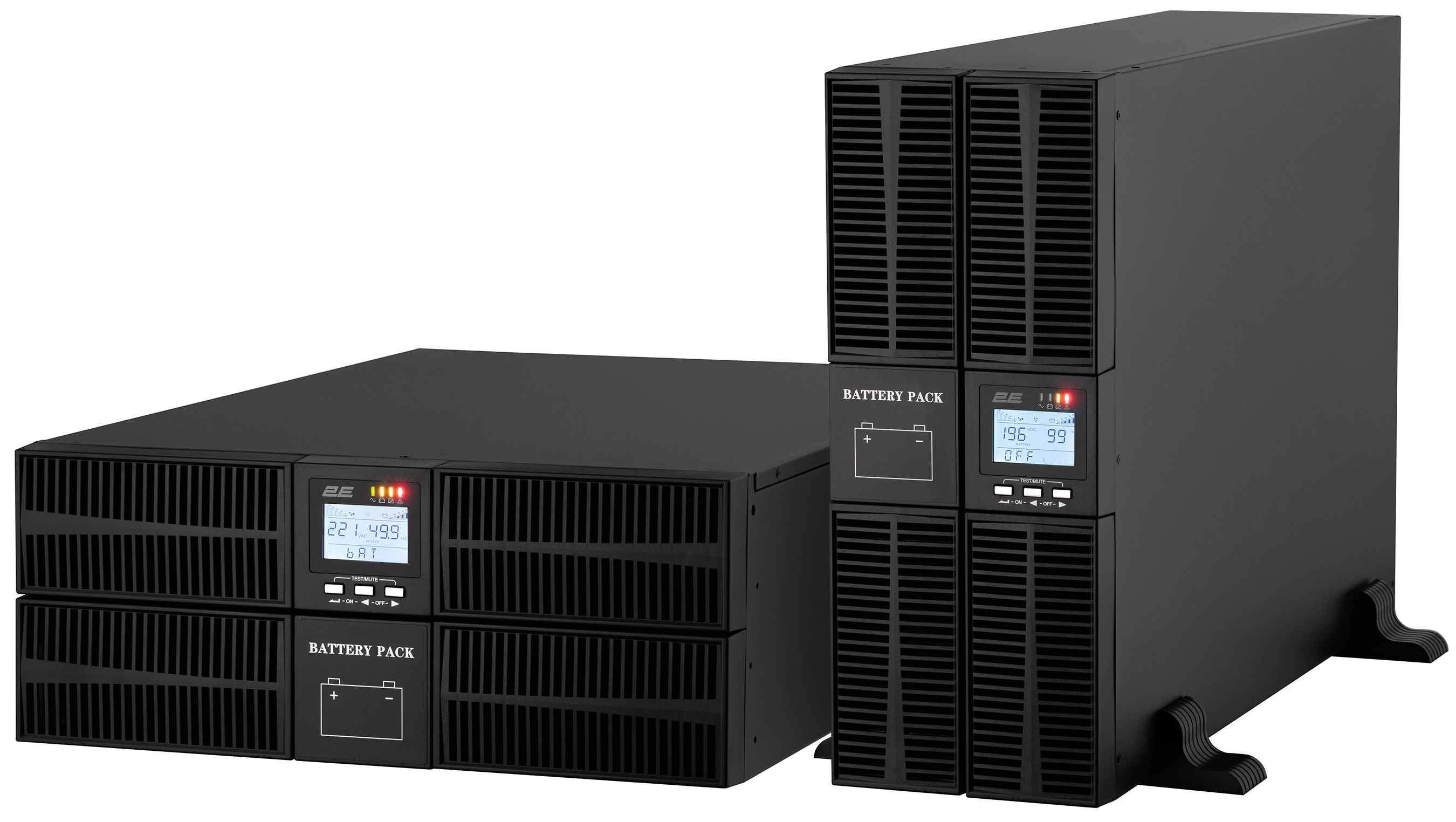

With a weight of 63 kg, the device has dimensions of 440 × 660 × 176 mm. Installation type: universal (RACK/TOWER). The noise level is 58 dB. The product has IP20 protection degree, as well as protection against short circuit, overload, overheating, full battery discharge and fan check ability.
