2E OD2000RT UPS, 2000VA/1800W, RT2U, LCD, USB, 4xSchuko 2E-OD2000RT
The war in Ukraine is not abating, the enemy continues to destroy critical infrastructure, in particular the facilities of the country’s energy system. In order to restore the damaged and ensure the stability of the power system, power engineers resort to fan and sometimes emergency shutdowns. Ukrainians understand the proposed measures and are trying to adapt to new realities: they are looking for solutions to provide electricity not only to their own homes, but also to critical public institutions such as hospitals, medical centers, and to meet business needs.
| Device type | online with double conversion |
| View | Server and network equipment UPS |
| Mounting type | classic (tower) / rack mount |
| Typical recharge time (up to 90%) | 3 h |
| SPS | ≤ 2% linear load / ≤ 5% non-linear load |
| Overload | 105% ~ 125% for 1 min / 125% ~ 150% for 30 s / > 150% for 300 ms |
| Input voltage range | 176-280 V без погіршення характеристик / 110-176 V лінійне зниження характеристик між 50% та 100% навантаження / 280-300 V зниження номінальних характеристик 50% |
| Input frequency | 40-70 автоматичне визначення |
| Peak current | 1 A |
| Output voltage | 220 V / 230 V / 240 V / 208 V |
| Max. Output Power | 2000 VA |
| Effective Output Power | 1800 W |
| Output frequency | 50-60 battery mode / 45-55 synchronized range / 55-65 synchronized range |
| Maximum efficiency | ≥ 91% (Mains mode) / ≥ 86% (Battery mode) / ≥ 96% (ECO mode) |
| Type of output power | SCHUKO x4 |
| Established batteries | 4 pcs x 12B 9 Aг |
| Connecting an external battery | ✔️ 4 шт x 12B 9Aг (опціонально) |
| Protection | Short circuit protection / overvoltage protection / discharge/overcharge protection перевірки вентилятора / overcharge protection / IP 20 |
| Interface | USB / RS-232 / optional SNMP adapter |
| Additional information | microprocessor control / ECO mode |
| Display | ✔️ LCD |
| Noise level | 50 dB |
| Operating temperature | 0-40 °C |
| Relative humidity | 0-95% (non-condensing) |
| Colour | black |
| Dimensions ( HxWxD ) | 88 x 440 х 528 |
| Battery warranty | 1 year (2 роки на електрику) |
| The weight | 21.9 kg |
Considering the military present, 2E brand uninterruptible power supply is a must-have for almost everyone. The model has a power of 2,000 VA/1,800 W. 2E OD2000RT type: online double conversion. The main advantage of devices of this type is the ability not only to prevent interruptions in the power supply of important «consumers», but also to significantly improve the quality of the supplied current. Input 110 ~ 300 V AC, the UPS converts and outputs the required ideal 208/220/230/240 V (voltage adjustable). The lack of switching between modes (mains to battery) allows to minimize the risk of damage to «sensitive» equipment. In particular, such UPSs are used for uninterrupted power supply of medical equipment, for data centers and enterprises with a continuous production cycle.

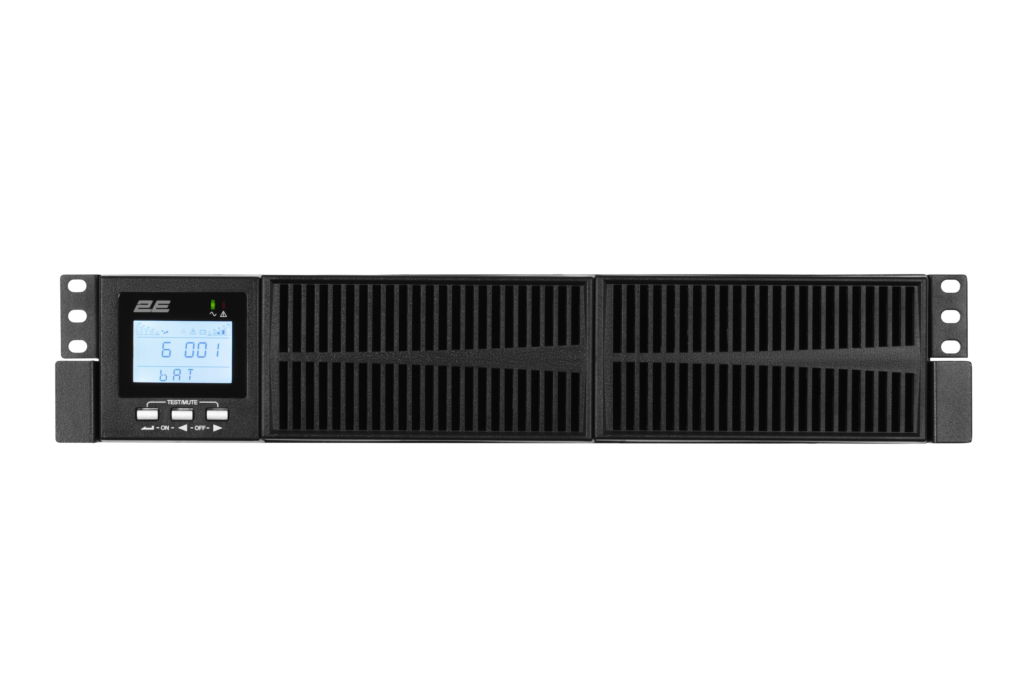

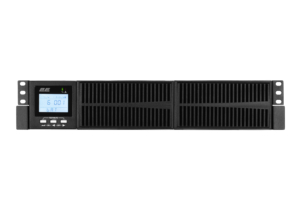

The operating frequency range of 2E OD2000RT model is within 40 ~ 70 Hz (automatic detection). If the inverter of the device fails or the input current is too high, the bypass mode is automatically activated: the bypass voltage range is -25% ~ +15%. The UPS is equipped with four batteries (12 W/9 Ah), which restore the charge to 90% in just 3 hours! The charging current (max.) is 1 A. In addition, four Schuko sockets, RS-232 connectors, USB and an optional SNMP adapter are provided. An LCD display built into the front panel displays the deviceʼs operating status, including error codes.

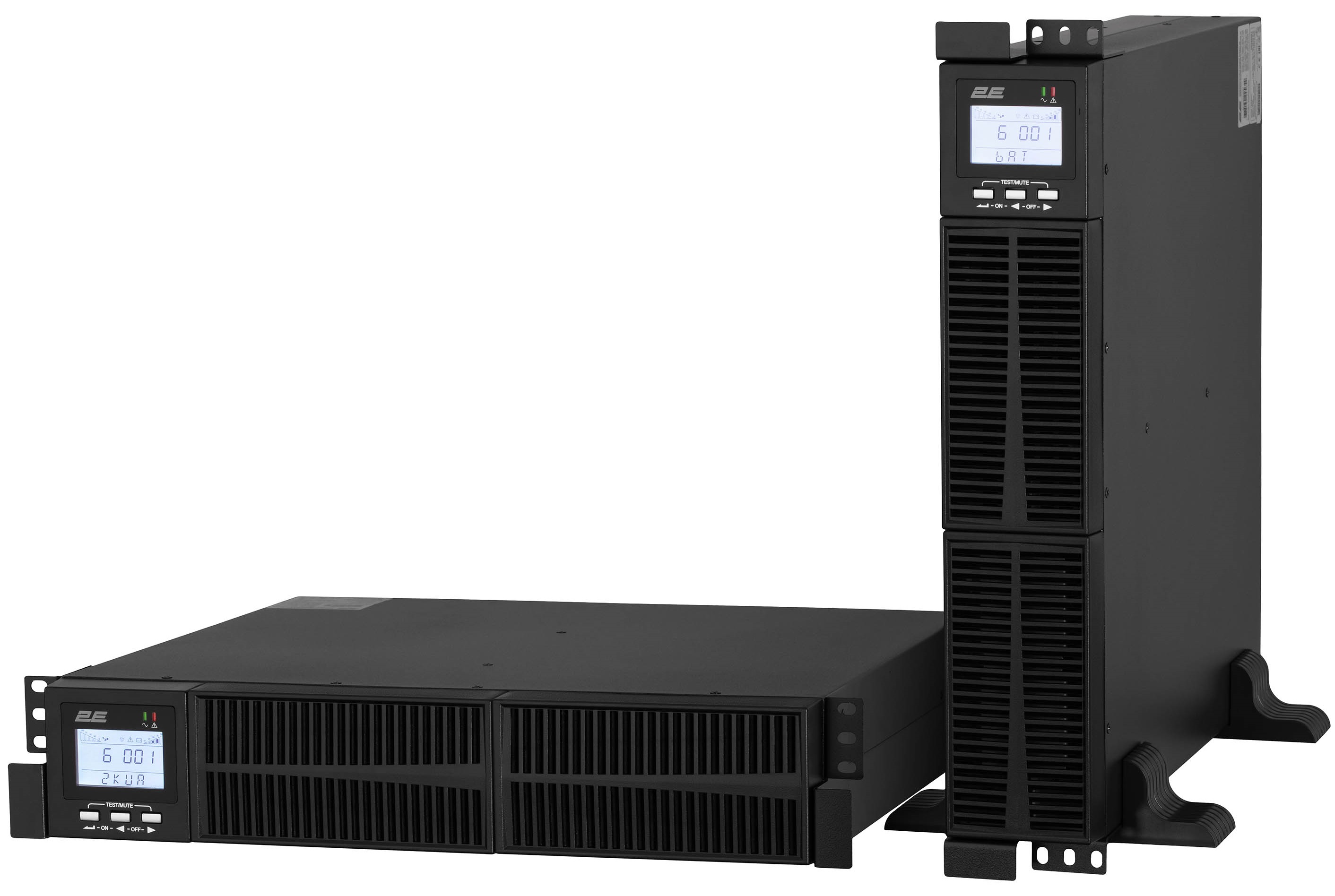

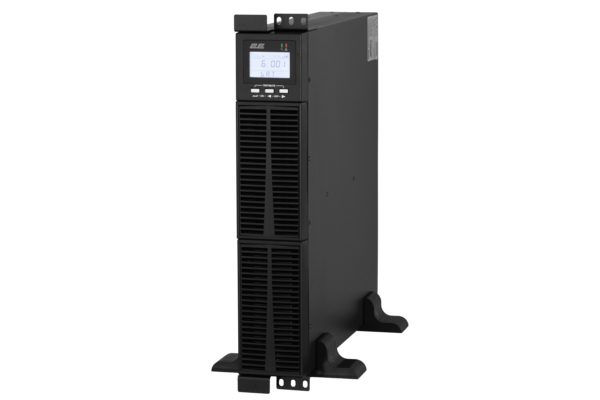

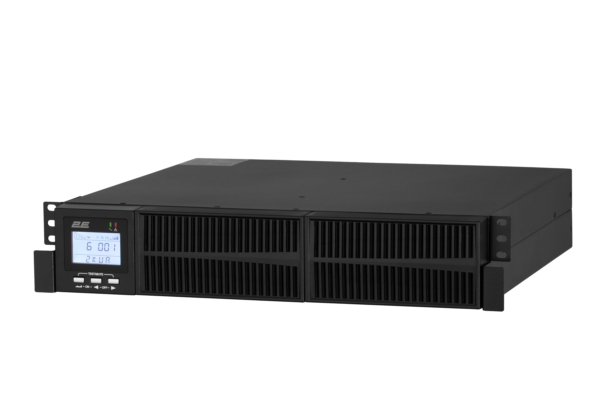

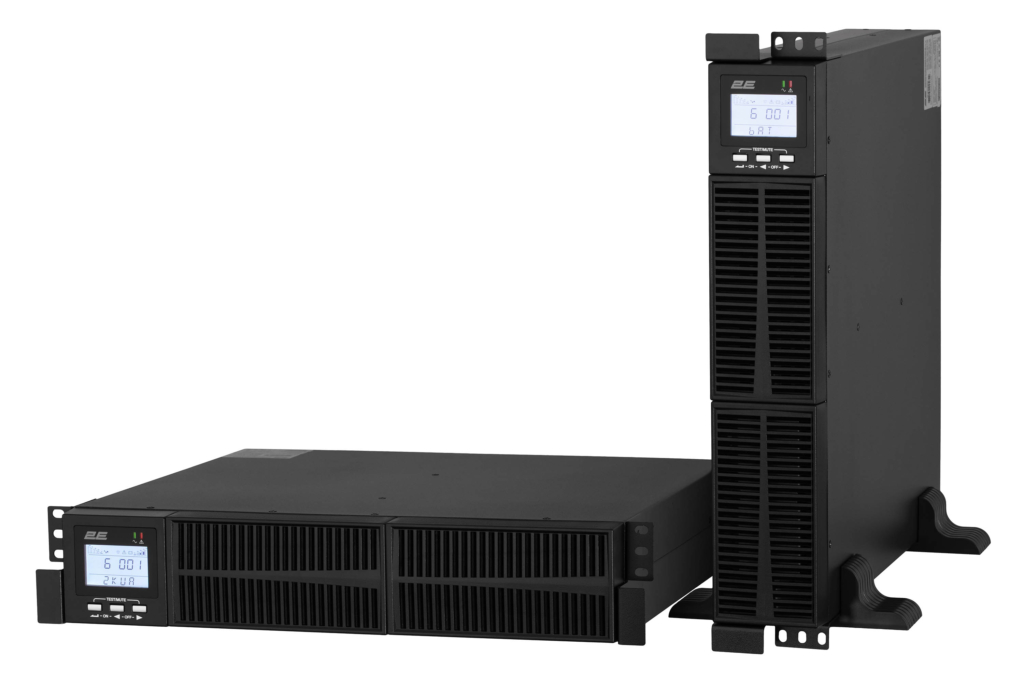

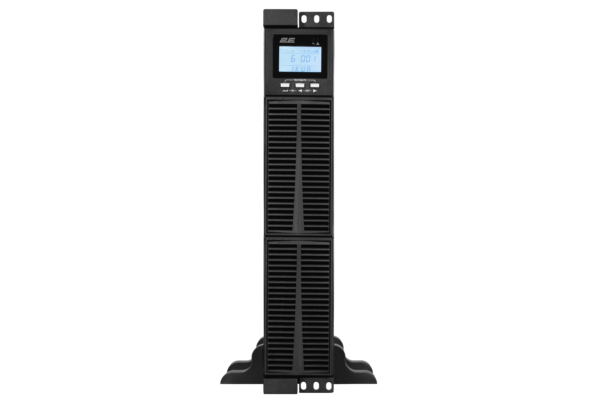

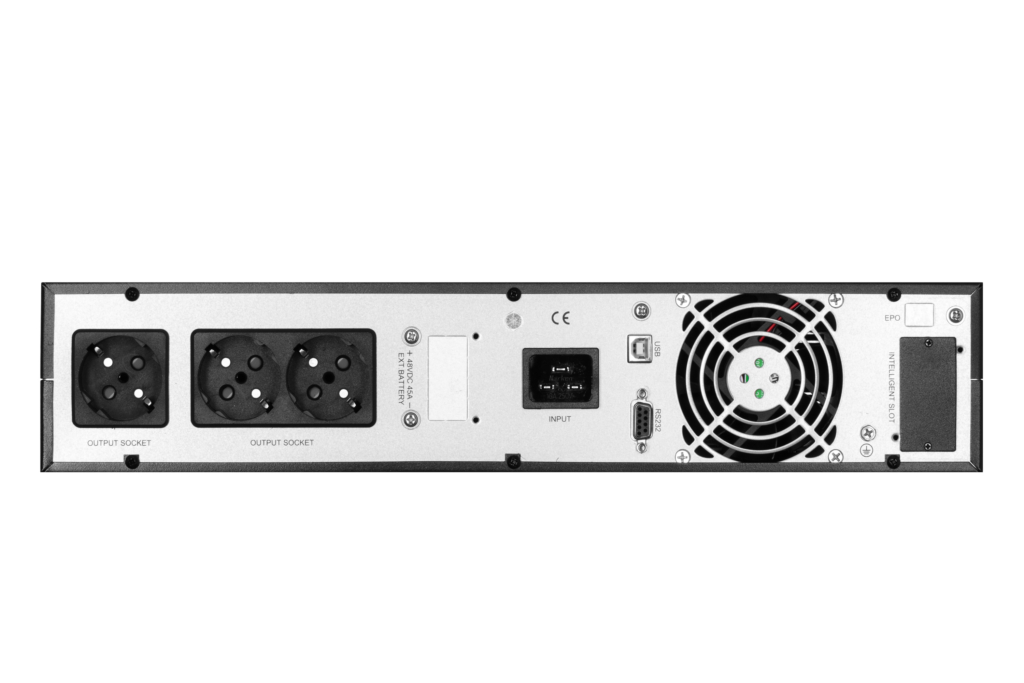

With a weight of 21.9 kg, the device has dimensions of 440 × 528 × 88 mm. Installation type: universal (RACK/TOWER). The noise level is 50 dB. The product has IP20 protection degree, as well as protection against short circuit, overload, overheating, full battery discharge and the fan check ability. In case of emergency, users can use the EPO port, which is built into the rear panel, for emergency shutdown of the UPS.
