Portable Power Station 2Е Volodar, 5000 W, 5120 Wh, WiFi/BT, Capacity Increase, Fast Charging

Product code: 2E-PPS5051

The 2E Volodar is the most powerful, innovative and environmentally friendly portable power station with a 5,120 Wh LiFePO4 battery and a powerful AC inverter that delivers 5,000 Wh of sinusoidal power.

  • Rated input voltage 220 VAC / 230 VAC
  • Input voltage range (170 VAC ~ 280 VAC) ± 2%; (90 VAC - 280 VAC) ± 2%
  • Frequency 50 Hz/ 60 Hz (automatic detection)
  • Frequency range 47 ± 0.3 Hz ~ 55 ± 0.3 Hz (50 Hz) / 57 ± 0.3 Hz ~ 65 ± 0.3 Hz (60 Hz)
  • Rated output power (VA) 5,000 (4,350/4,500/4,800/5,000)
  • Rated output power (W) 5,000 (4,350/4,500/4,800/5,000)
  • Rated output voltage (V) 230 V AC (200/208/220/240 V AC with adjustable voltage)
  • Output frequency range (Hz) 50 Hz ± 0.3 Hz/60 Hz ± 0.3 Hz
  • Peak power 10,000 VA
  • Maximum charging current 60 A
  • Charging voltage range 40~60 V DC
  • Battery type and capacity class A LiFePO4 5,120 Wh 51.2 V 100 Ah
  • Service life ≥ 3,000 cycles
  • Operating temperature 10~45 °C
  • Dimensions 520 × 405 × 376 mm
  • Weight 70 kg
2 799.99 €*
General:
Rated power 5000 W
Real capacity 5120 W·h
Battery Type LiFePO4
Rated voltage 220 V /230 В змінного струму (170В змінного струму ~ 280В змінного струму) ±2%;(90В змінного струму-280В змінного струму) ±2%
Frequency 50 Hz / 60 Гц (автоматичне визначення), 47±0,3 Гц ~ 55±0,3 Гц (50 Гц)/57±0,3 Гц ~ 65±0,3 Гц (60 Гц)
AC power supply mode:
Rated input voltage 220-230 V
Input voltage range 170-280 V ±2% / 90-280 V ±2%
Frequency 50-60 Hz
Frequency range 47±0.3 Hz ~ 55±0.3 Hz (50 Hz)/57±0.3 Hz ~ 65±0.3 Hz (60 Hz)
Overload / short-circuit protection Circuit breaker
Efficiency >95%
Transfer time (bypass and inverter) 10 ms (Типове значення)
Max. bypass overload current 40 A
AC backfeed protection ✔️
Inverter mode:
The shape of the output voltage Pure sine wave
Rated output power 5000 VA (4350/4500/4800/5000)
Rated output power 5000 W (4350/4500/4800/5000)
Power factor 1
Rated output voltage 230 V (200/208/220/240 В змінного струму з можливістю регулювання)
Output voltage error ±5%
Output frequency range (Hz) 50-60 ± 0,3
Efficiency >90%
Overload protection 102% < load < 125% ±10%: error message and output shutdown after 5 minutes / 125% < load < 150% ±10%: error message and output shutdown after 10 seconds / load >150% ±10%: error message and output shutdown after 5 seconds
Peak power 10000 VA
Output short circuit protection Circuit breaker
Technical characteristics of the bypass switch 40A
Nominal battery input voltage 48 V (мінімальна пускова напруга 44В)
Battery voltage range 40-60 V ± 0,6 В постійного струму (сигналізація про знижену напругу / вимкнення напруги / сигналізація про підвищену напругу / відновлення напруги ... РК-екран з можливістю налаштування)
Energy saving mode Load ≤50 W
Solar panel charging:
The maximum voltage of the panels 500 V постійного струму
The range of working voltages of the panels 120-500 V постійного струму
MPPT voltage range 120-450 V постійного струму
Battery voltage range 40-60 V постійного струму
Maximum output power 5000 W
Panel charge current range (adjustable) 0-80 A
Protection from short-circuit charge fuse
Protection of electrical wiring Reverse connection protection
Interfaces:

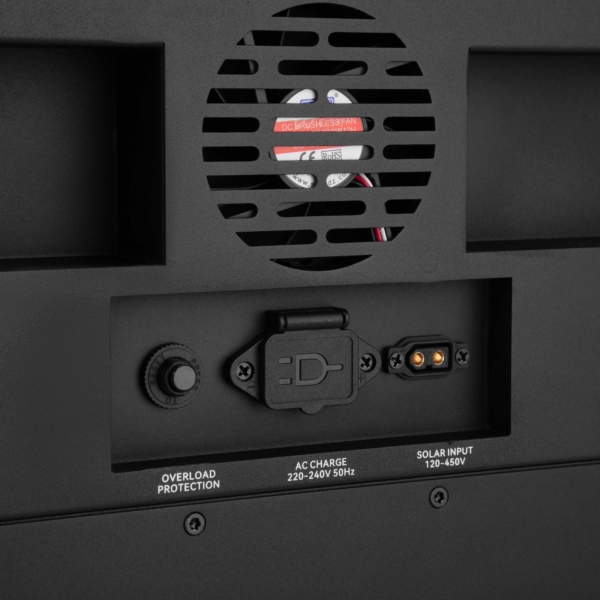

Input 220-240 V, 50 Hz (max. 2500 W) / MPPT: 120-450 V (max. 5000 W)

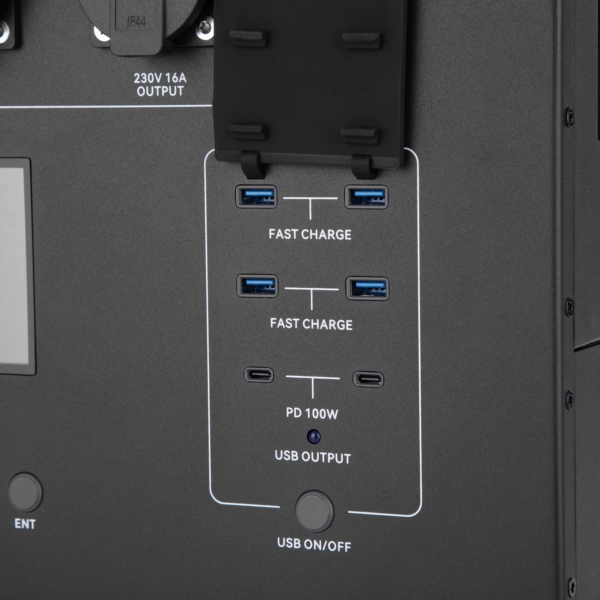

Exit 4x USB-A: 5V 3A, 9V 2A, 12V 1.5A (one 18W max., two simultaneously 15W max.) / 2x USB Type-C: 5V 3A, 9V 3A, 12V 3V, 15V 3A, 20V 5A (max. 100 W)
Communication interface USB/RS485 (WiFi/BT)/Dry Node Control

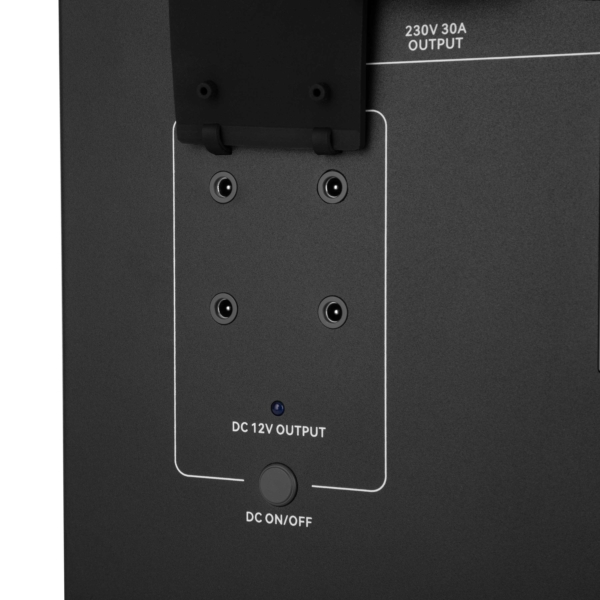

DC outputs 4x DC 5521 outputs: 12V 10A (max. 120W) / Car port: 12V 10A (max. 120W)

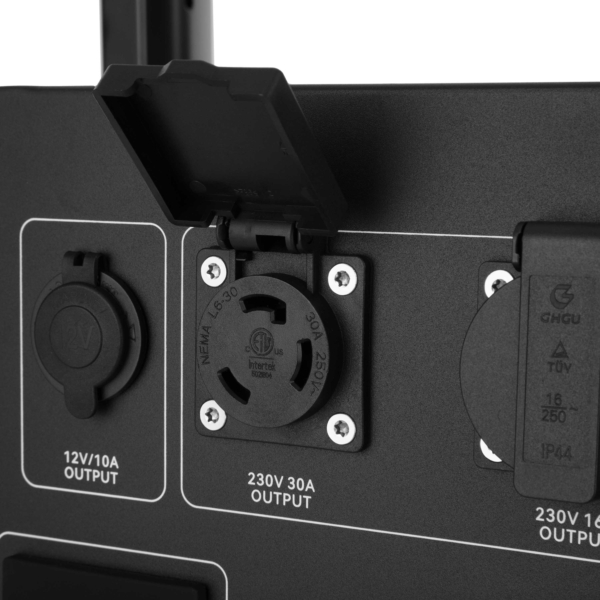

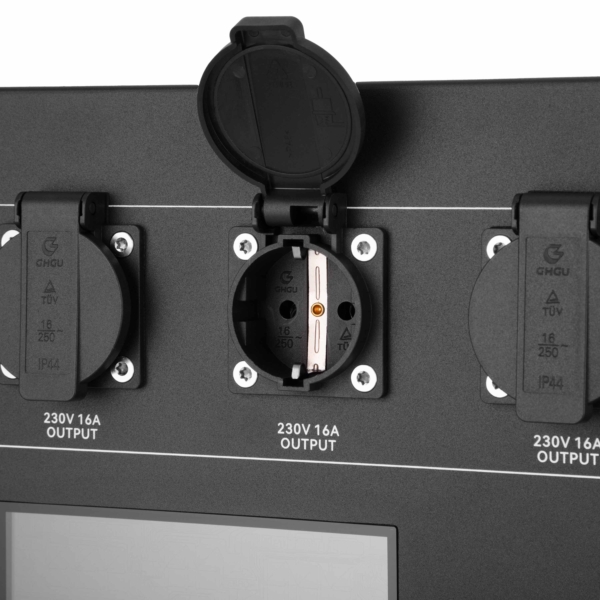

AC outputs 1 output: 210-230 V, 30A, 50 Hz / 3 outputs: 210-230 V, 16A, 50 Hz
Additional:
Certificate of quality CE (IEC 62109-1)
EMC certification class EN61000

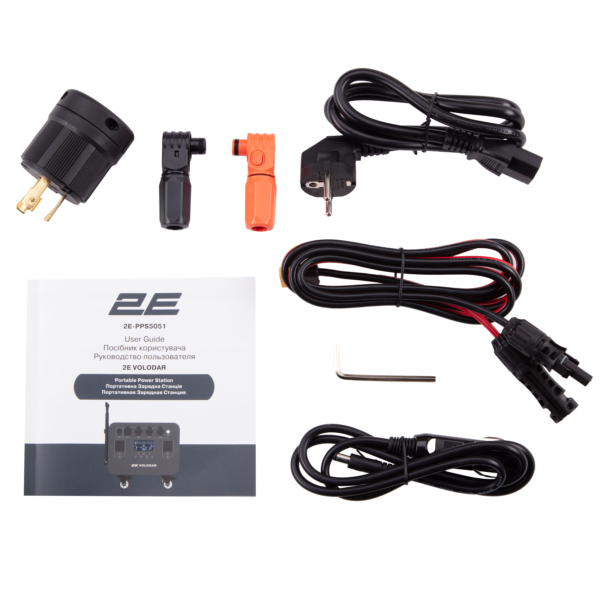

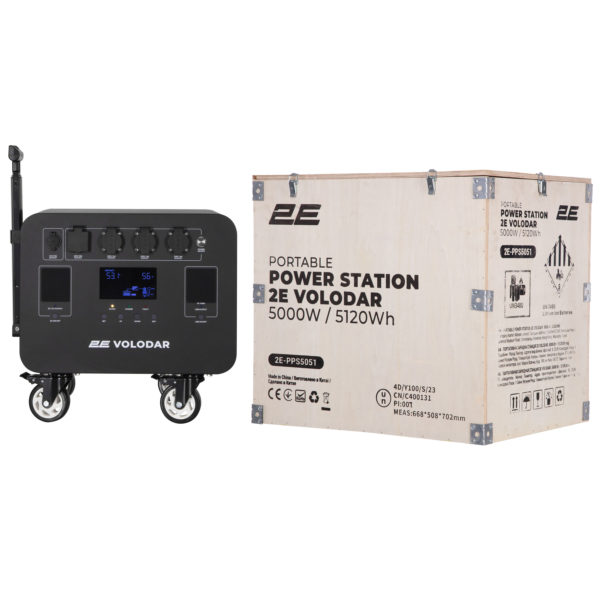

Equipment Portable power station / User manual / AC charging cable / Cigarette lighter adapter > DC5521 / Spare power plug
Physical:
Noise ≤60 dB
Heat release Forced cooling with adjustable air flow rate
Color black
Dimensions 520 x 405 x 376 мм
Weight 70 kg

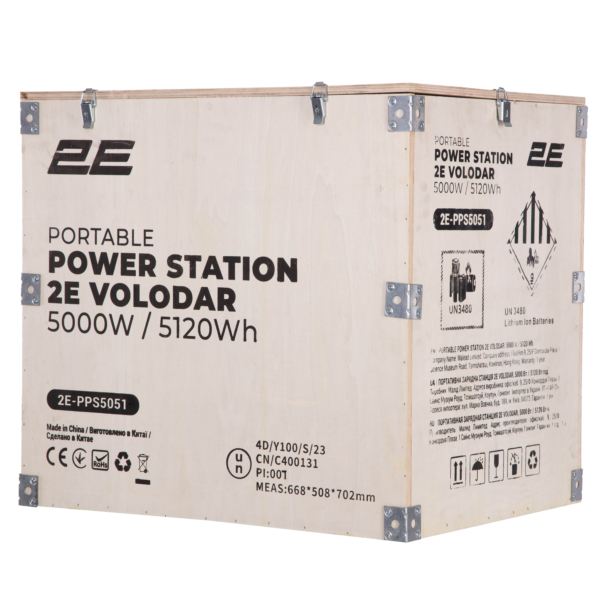

Gross size:
Weight 88.00 kg
Length 510 mm
Height 710 mm
Width 670 mm
Volume 0.2426 m³
Warranty:
Warranty 12 months
User manual High-resolution photo Data Sheet

A Wide Range of Uses

The 2E Volodar is the best solution when traditional generators are not available and you need to power heavy-duty equipment anywhere.

When buying a portable power station, you need to clearly understand the scope of its use. With the most powerful 2E Volodar, you can power any event, home workshop, office or coffee shop, or even a private house or apartment for several days in the event of an unexpected power outage. It is also suitable for charging an electric vehicle, organizing field events, in medical institutions and the military, etc.

Main Advantages

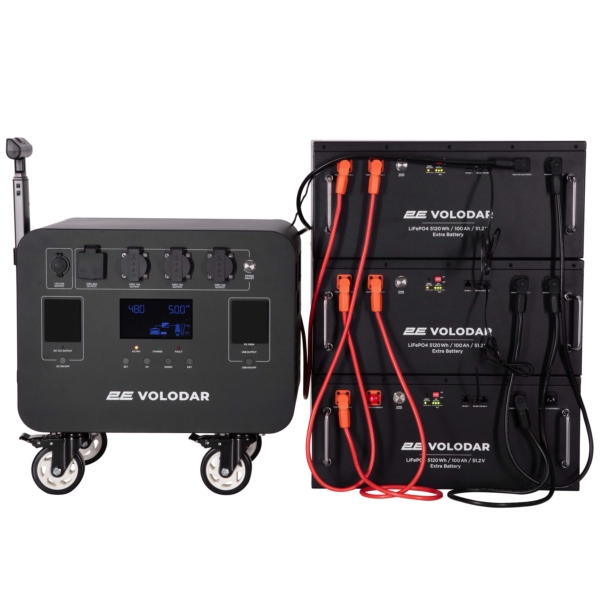

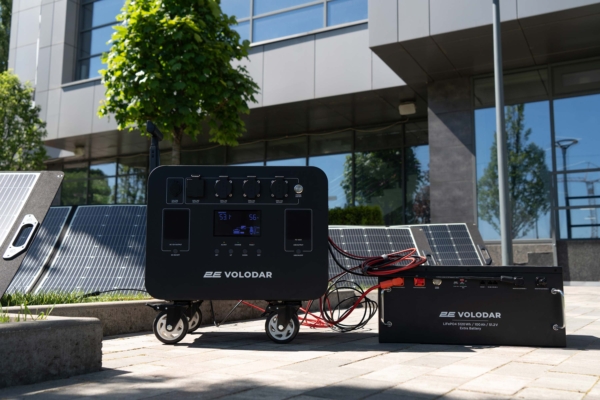

The 2E Volodar is an innovative portable power station with a pure sine wave inverter with a rated power of 5,000 W (peak up to 8,800 W) to power even more devices. MPPT 5,000 W full hybrid solar inverter with a voltage range of 120-500 V. For energy storage, the device is equipped with a built-in modern and safe LiFePO4 battery with a capacity of 5,120 Wh, which is the key to the station’s long-term operation even with intensive use. In addition, the capacity can be expanded to an impressive 82 kWh. It is compatible with and supports all types of stationary and portable solar panels.

Comfort of Use

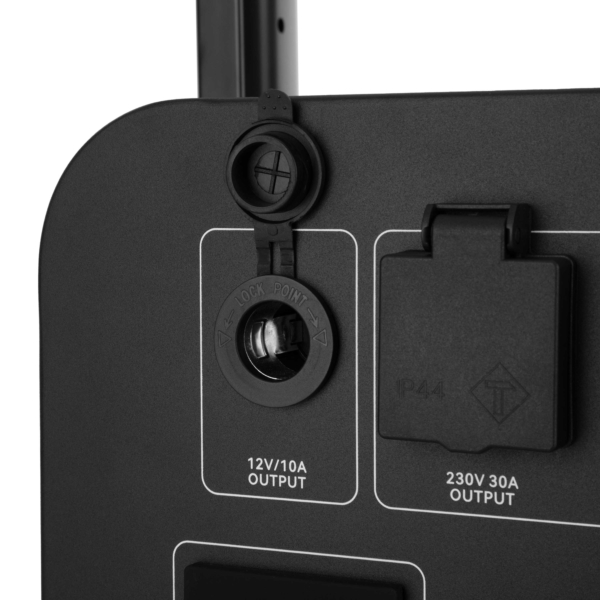

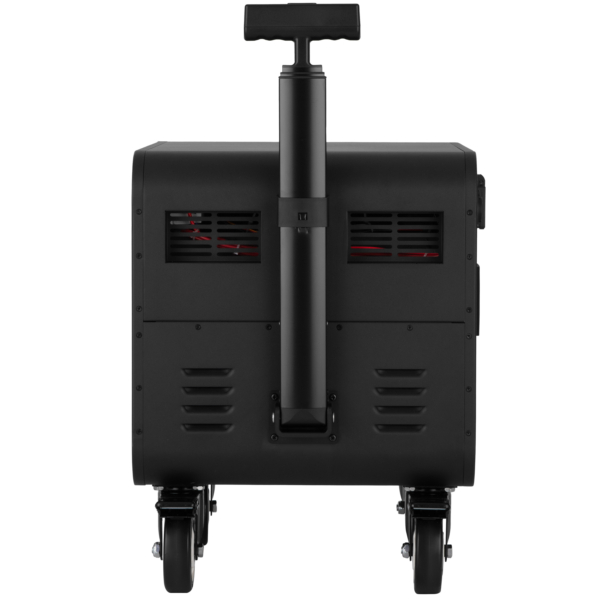

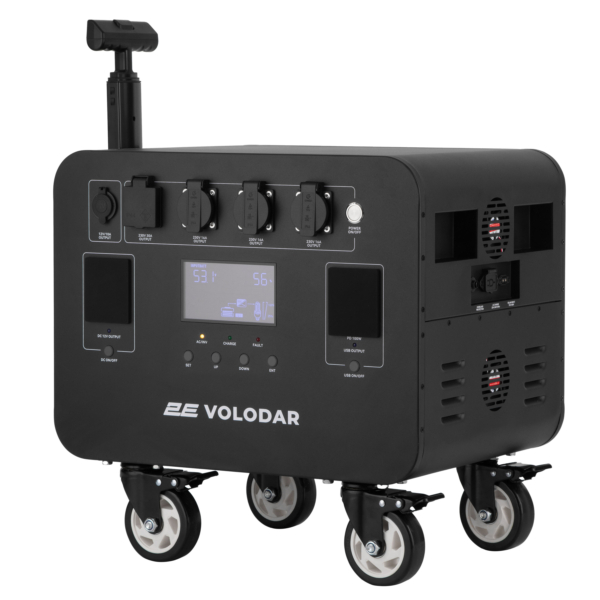

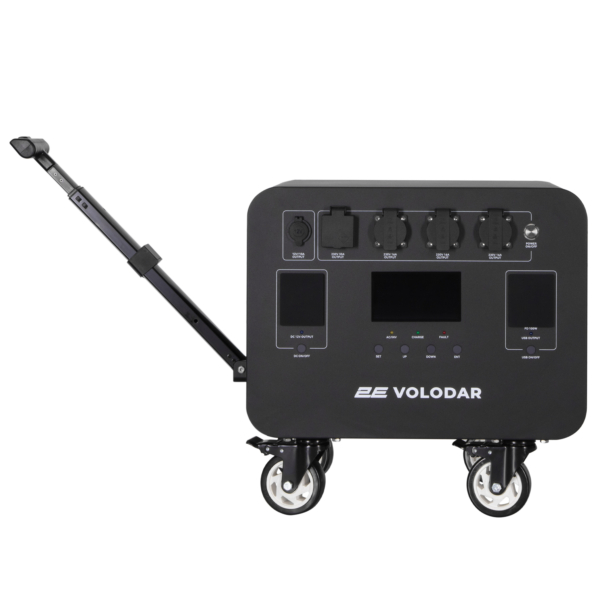

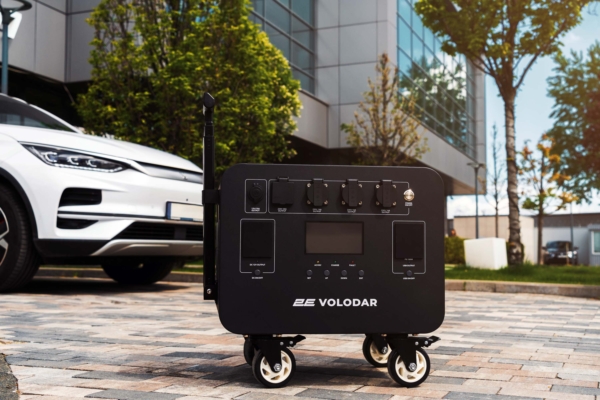

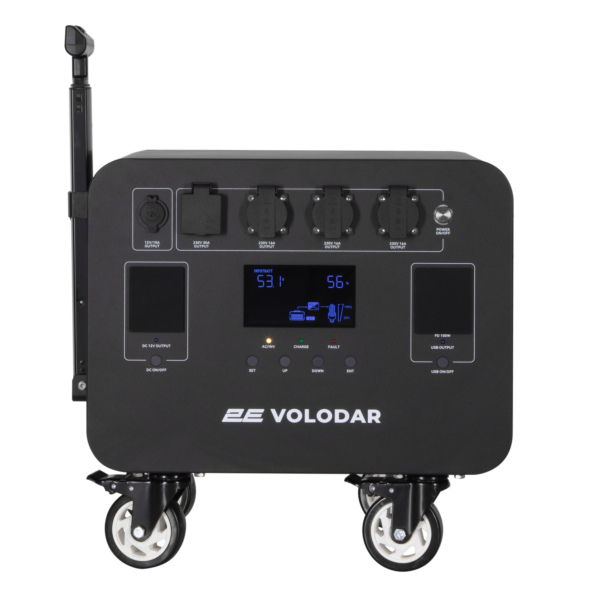

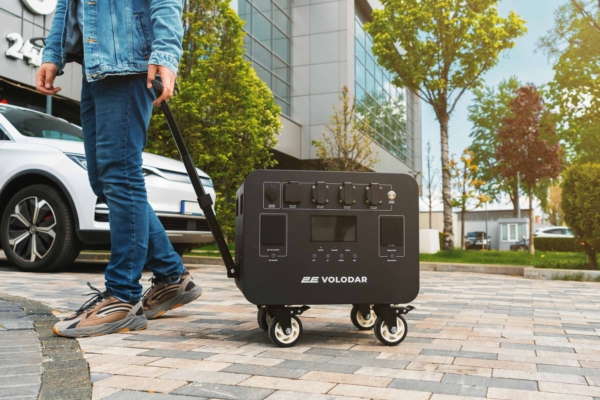

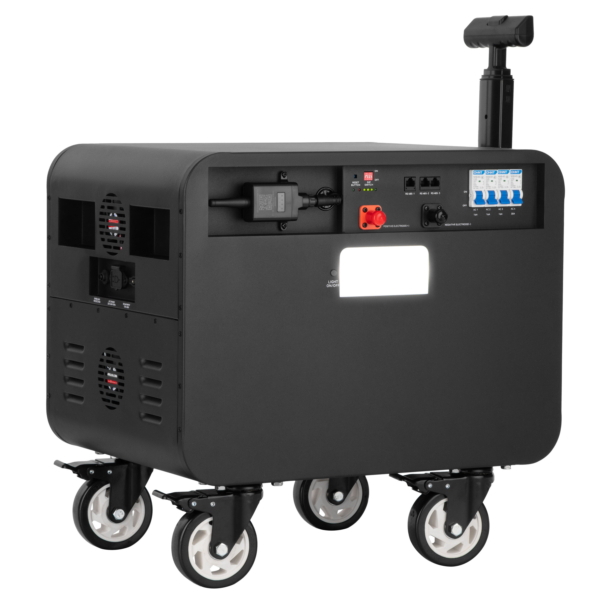

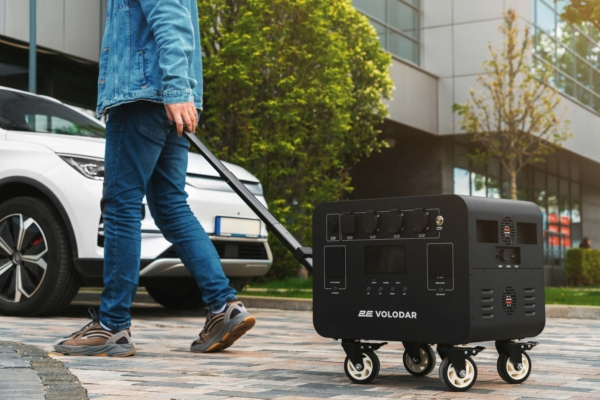

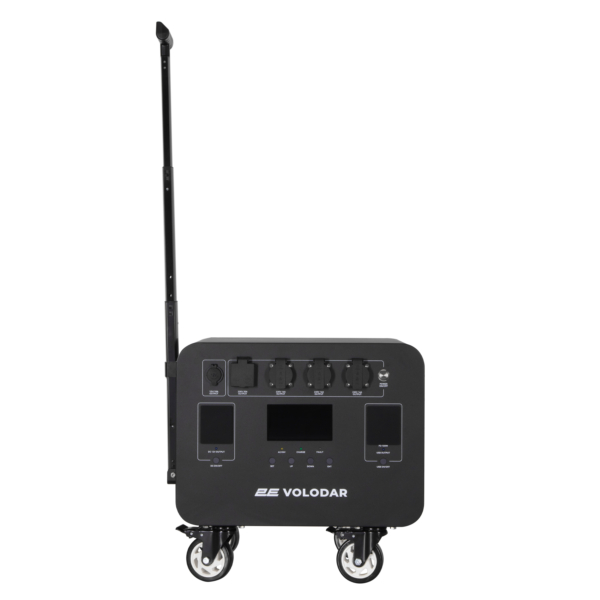

The mobile power station is enclosed in a metal casing and equipped with wheels and a telescopic handle for safe transportation. For convenience, there is a separate 30 A power outlet, 6 USB ports, 5 DC ports, and 4 AC outlets, so you can charge several devices simultaneously.

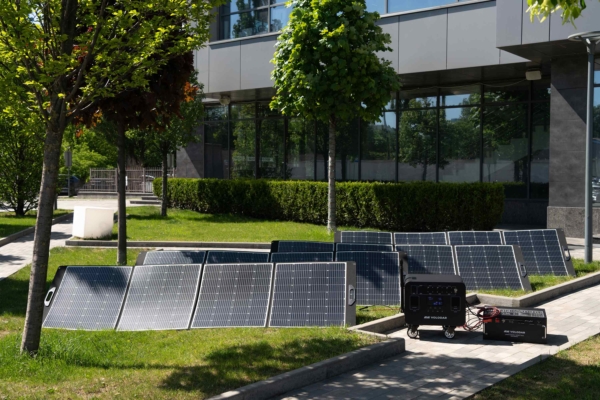

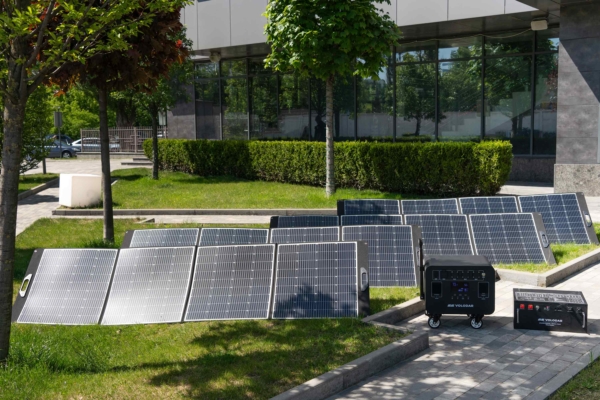

With powerful built-in charging of up to 2,500 W, the device can be fully charged in less than 2 h. There is a full UPS function, switching to the battery in less than 10 ms. With this power station, users will never be left without electricity, as the charging methods are quite flexible. It can be charged from the grid and a generator. An important argument is the possibility of charging from solar panels and a windmill if you plan to take the device on trips or there will be no power for a long time.
