Product code: 2E-MP750-120APFC

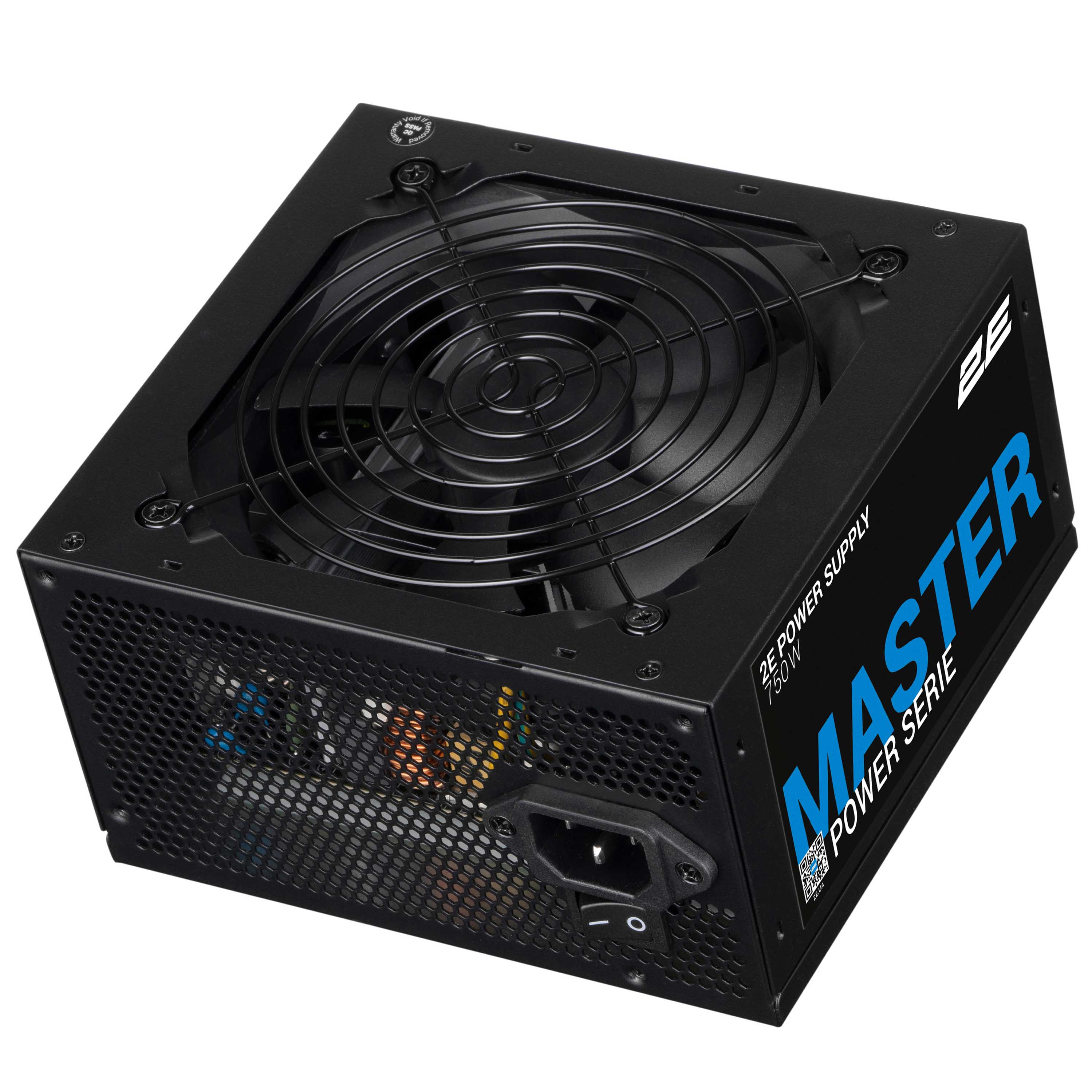

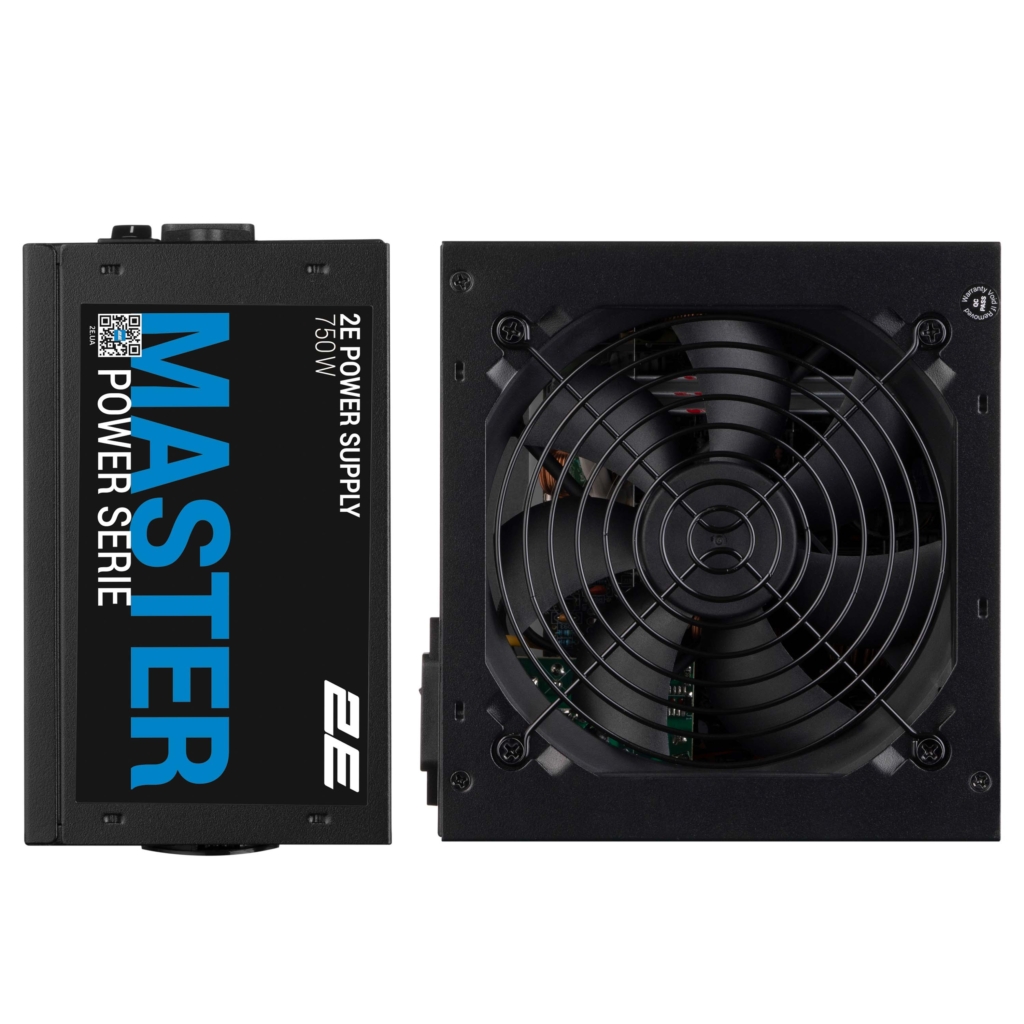

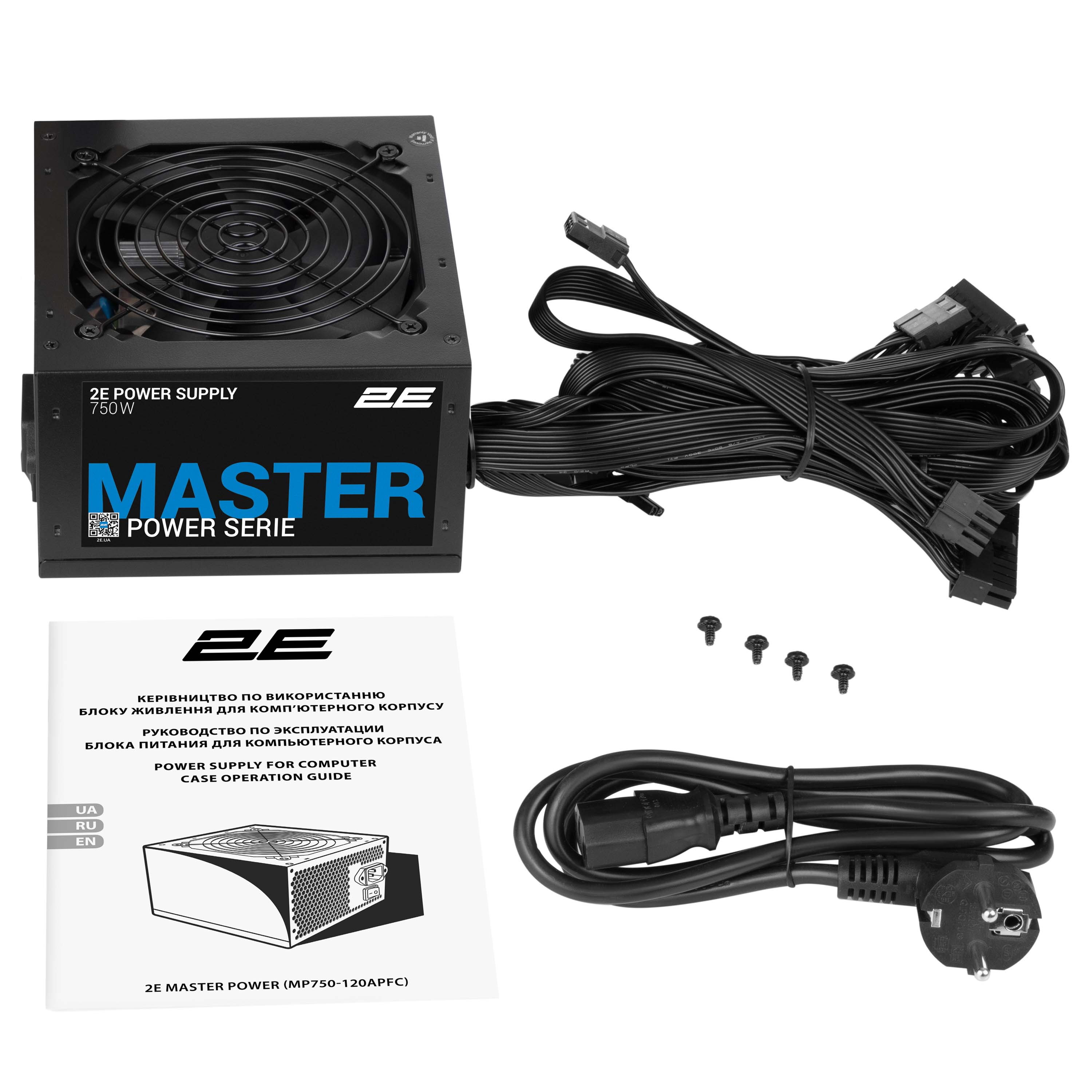

Power supply unit 2E MASTER POWER (750 W) with power cable for modern personal computer systems of medium complexity of office PCs. Certified and meets the 80+ White standard.

2 079 uah.*
Інструкція користувача Фото з високою роздільною здатністю
Key Features:
Type for PC
Power:
Power 750 W
Form Factor ATX
Specification:
Type PFC active
Number of fans 1
Fan diameter 120 mm (підшипник гідро-динамічний)
Еfficiency
80 PLUS Certificate white
Input voltage 100 - 240 В
Input current 10 - 5 А
Frequency 47 - 63 Гц

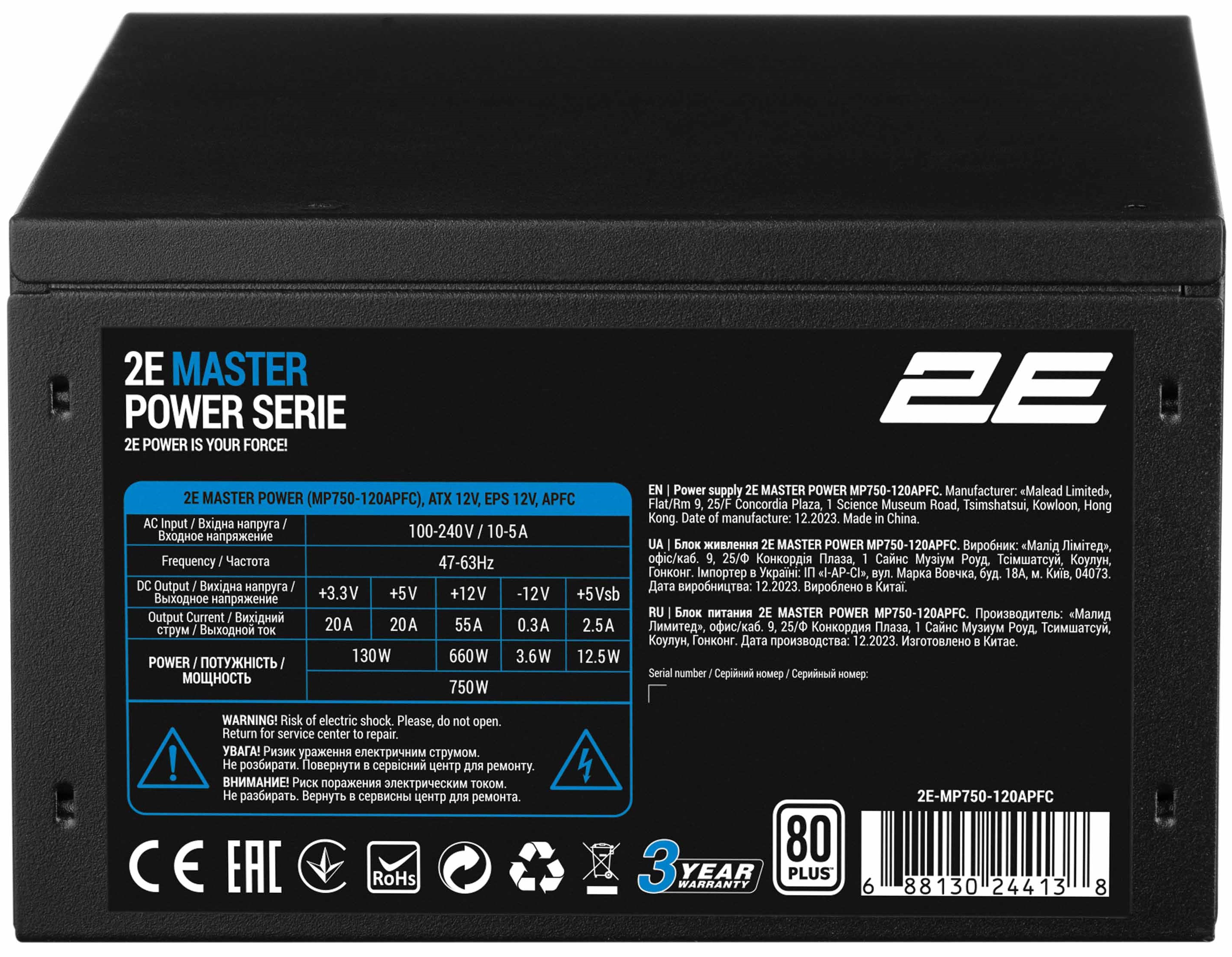

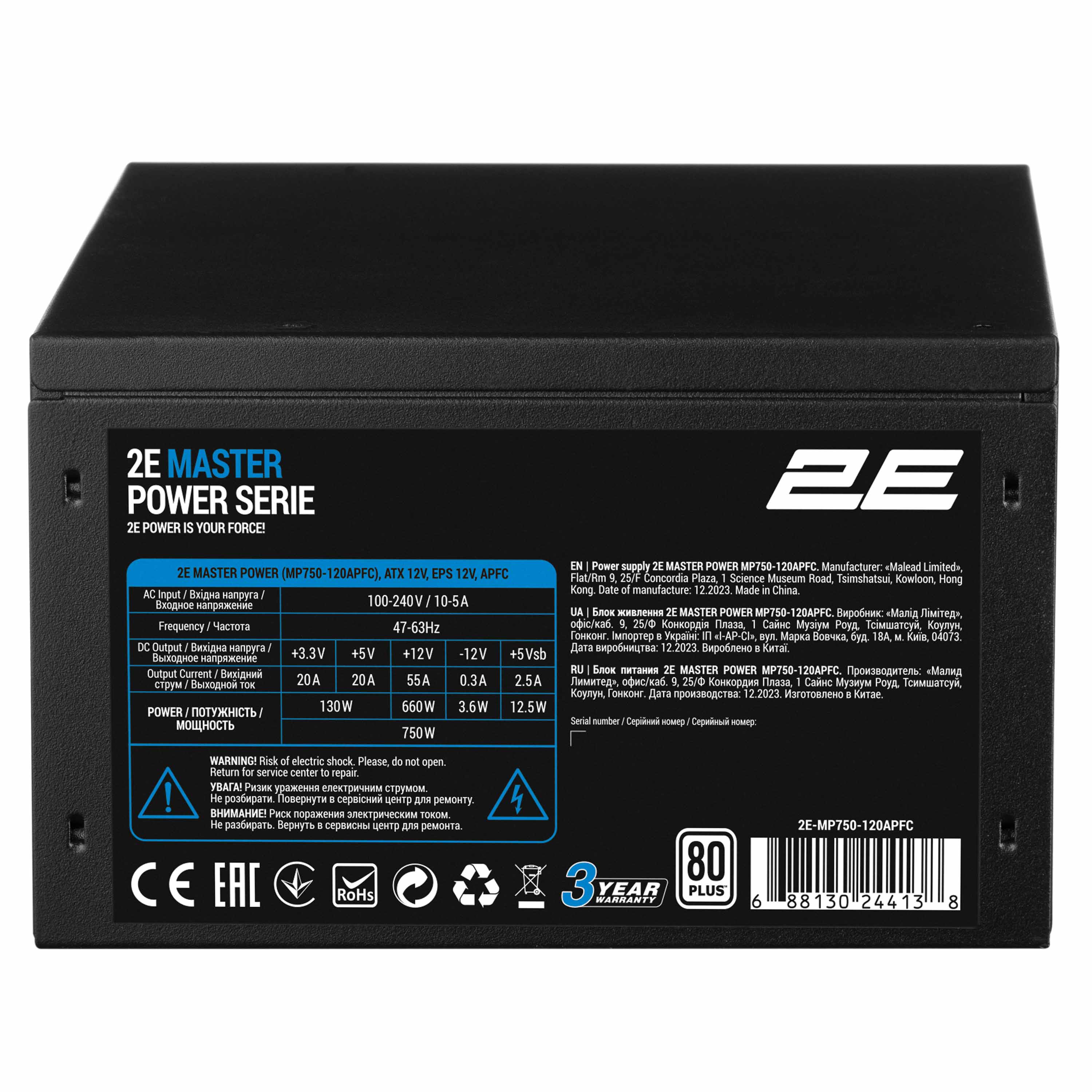

Maximum load +5VSB - 2.5A / +5V - 20A / -12V 0.3A / 3,3V 20A / +12V 55A
Power connectors:

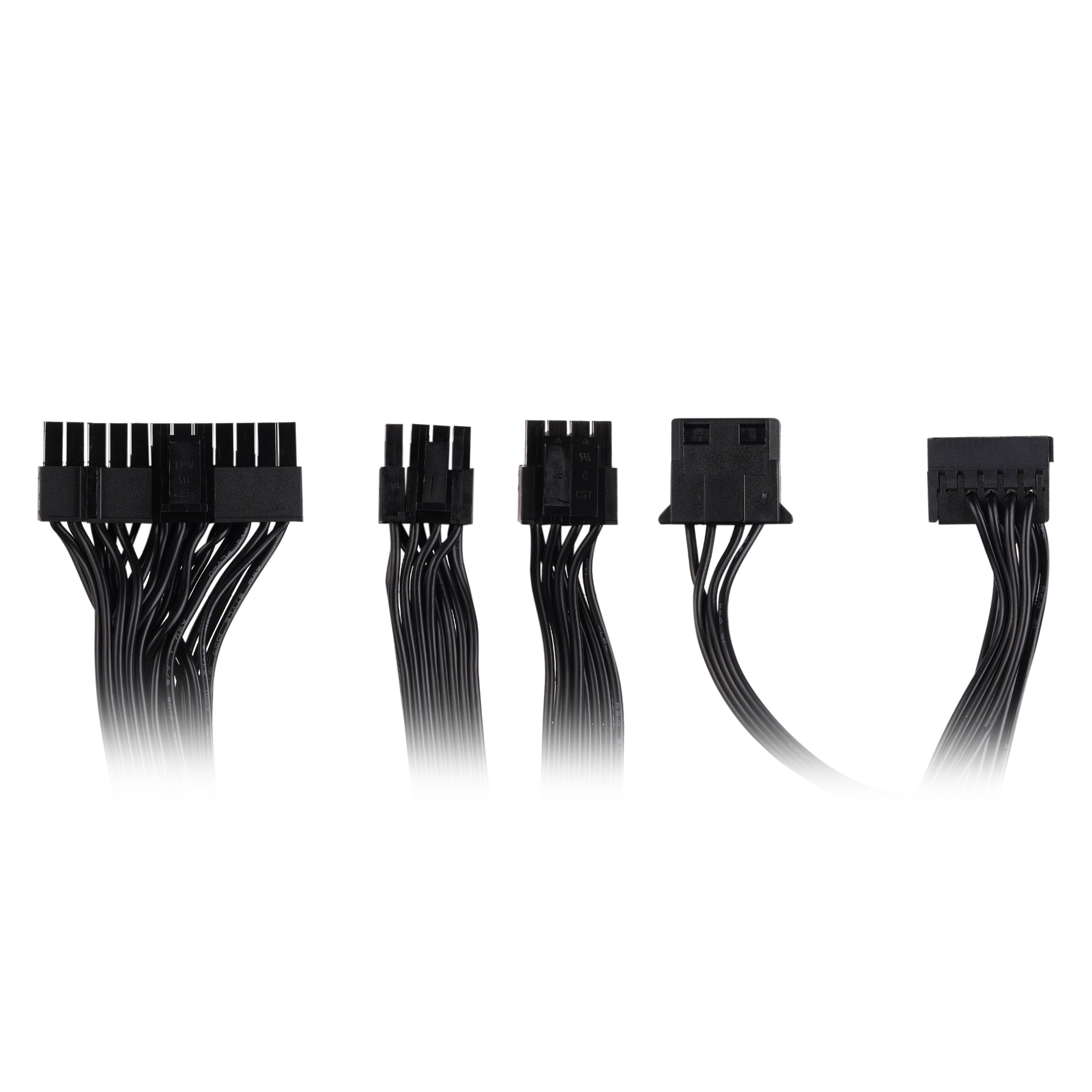

Connectors 5 x SATA 500+150+150мм/ 500+150мм / 3 x Molex 950мм / 800+150мм / 1 x MB 24(20+4) Pin 500мм / 1 x CPU 8 (4+4) pin 550мм / 4 x PCI-E 8 (6+2) pin 500+150мм/ x2
Additionally:
Security OVP (Overvoltage Protection) / SCP (Short-Circuit Protection) / OPP (Over Power Protection) / OCP (Over-current Protection)
Certificates CE / CB / EAC / RoHS
Physical:
Colour black
Dimensions (HxWxD ) 86 x 140 x 150
Length of cable 1.2
The weight 1.94 kg
  • ATX format, black steel case;
  • standard dimensions – 140x150x86 mm guarantee compatibility with most of the common classic form factors of cases for PCs;
  • stable power supply on the +12 V common line and voltage without overloads on the input current;
  • input voltage range – 110-240 V alternating current;
  • safe operation thanks to direct double conversion technology;
  • modern component base. The use of reliable heat-resistant Taiwanese capacitors for stable operation at high temperatures and voltage;
  • the presence of a special electromagnetic interference filter to optimize system operation;
  • 80+ White certification guarantees efficiency over 80% at 20%, 50% and 100% load, which significantly reduces overall system energy consumption, current leakage, overheating, as well as high-frequency noise and fan noise levels;
  • APFC – an active reactive power compensation method with a maximum ratio of up to 99% for uninterrupted operation with high energy efficiency. This is a safe, stable operation of the system with low noise, heat generation and minimal power supply fluctuations. The use of an active method of reactive power compensation contributes to the increase in energy efficiency, while the electromagnetic field decreases, which prevents the formation of a reverse current;
  • single-bus design, indicators up to +12 V and 750 W of available power at 90% efficiency, stable power supply voltage for the processor and video cards, which are the main components of the PC;

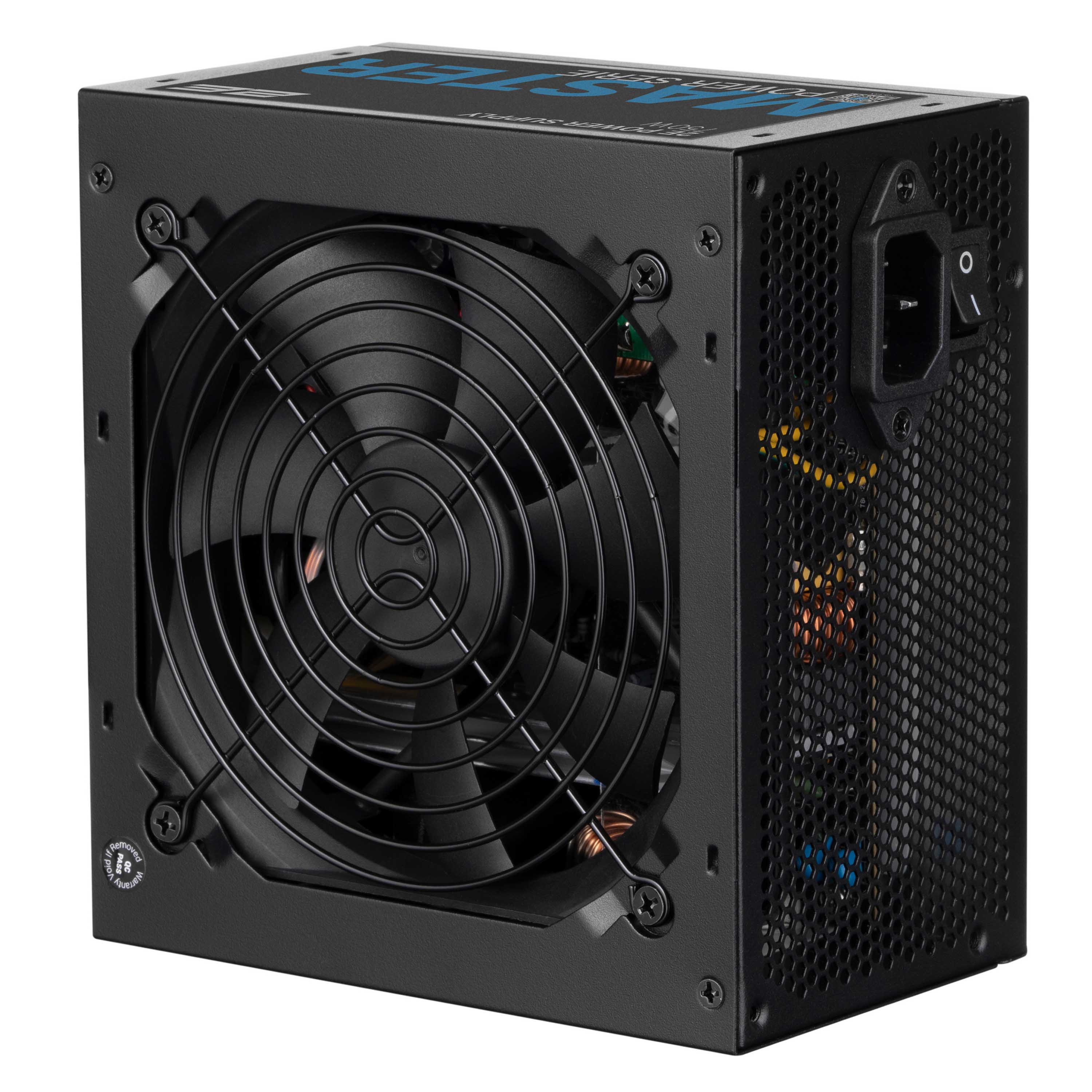

  • optimal cooling of the component base of the power supply unit: active – with the help of a quiet 120 mm fan and passive – with the help of a built-in radiator;

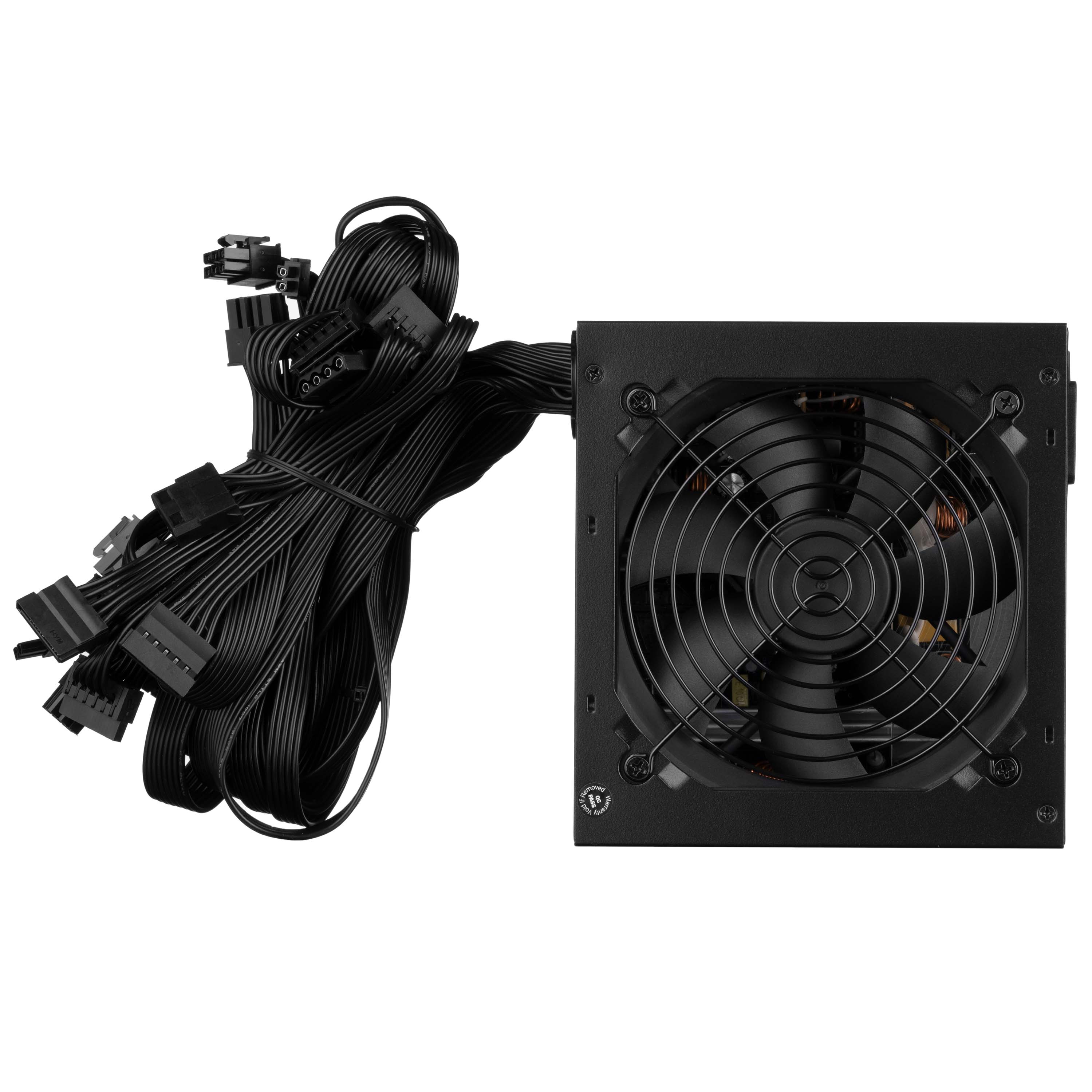

  • optimal length of cables for connection to components, to ensure power supply and convenient assembly of the system. Flat black cables are reliable, strong and flexible enough for laying and organizing cable management in a modern case;
  • PCI Express cable is compatible with the power supply of modern video cards;
  • guaranteed: overcurrent protection (OCP), undervoltage protection (UVP), overvoltage protection (OVP), overload protection (OPP), short-circuit protection (SCP);
  • power supply units are certified according to indicators of the level of electromagnetic interference and basic safety criteria.
