Код товару: 2E-RD831

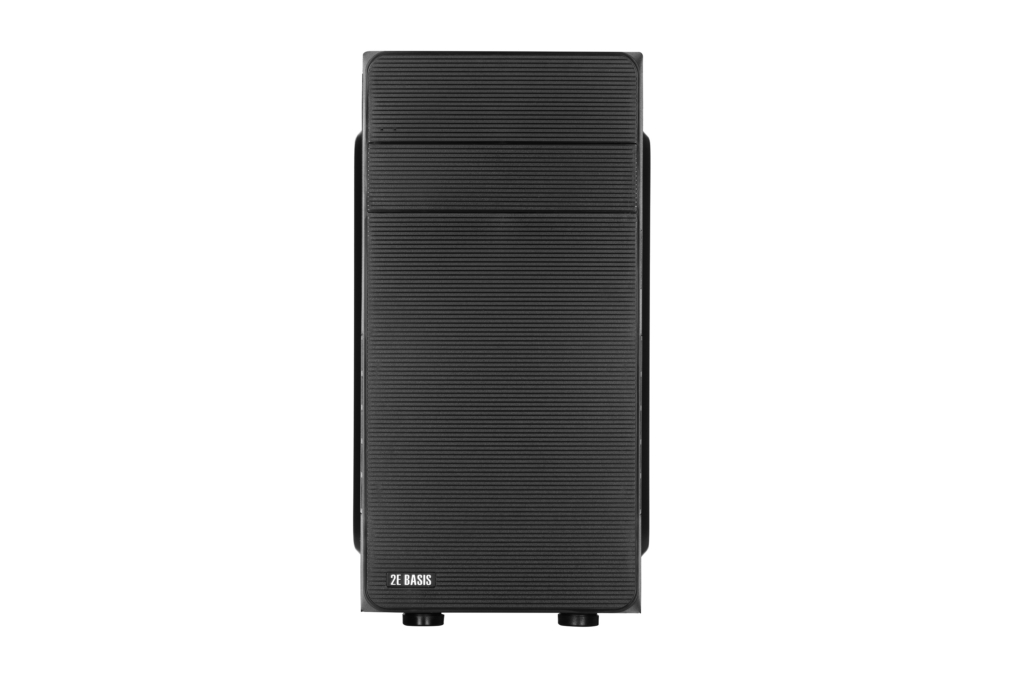

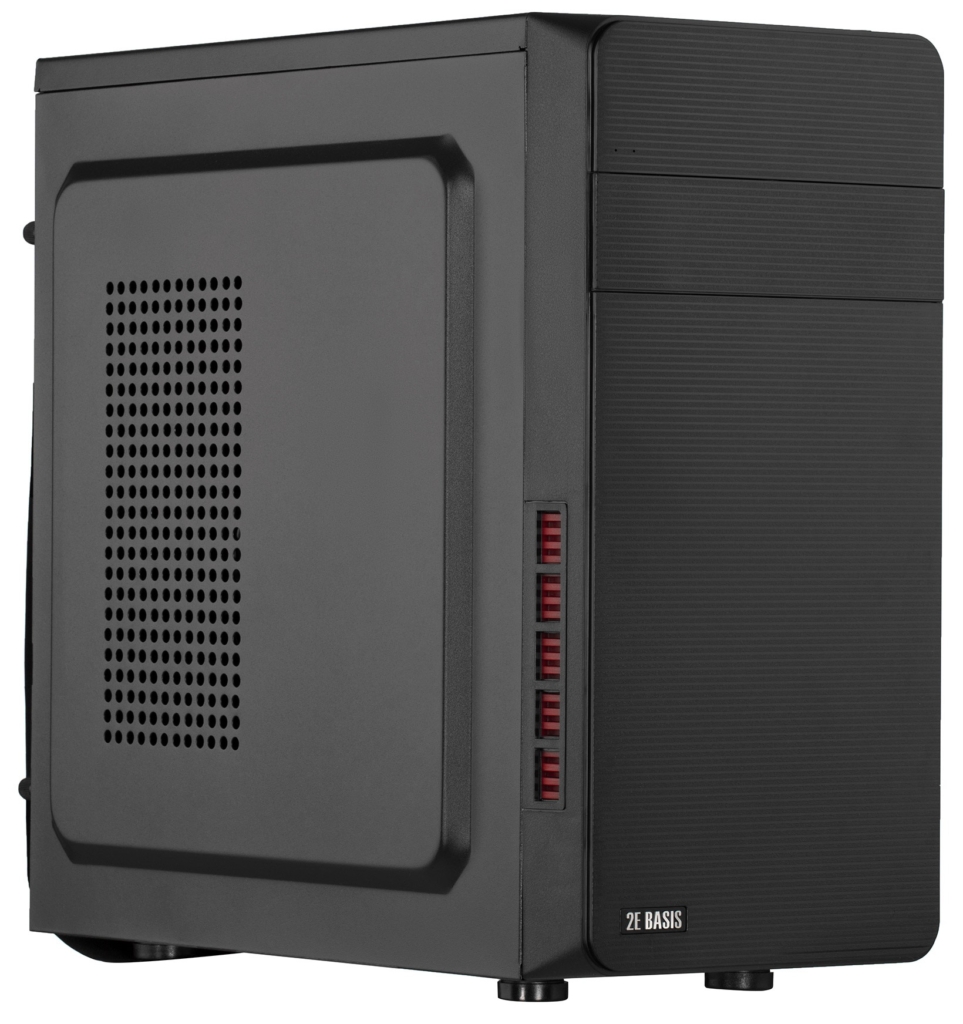

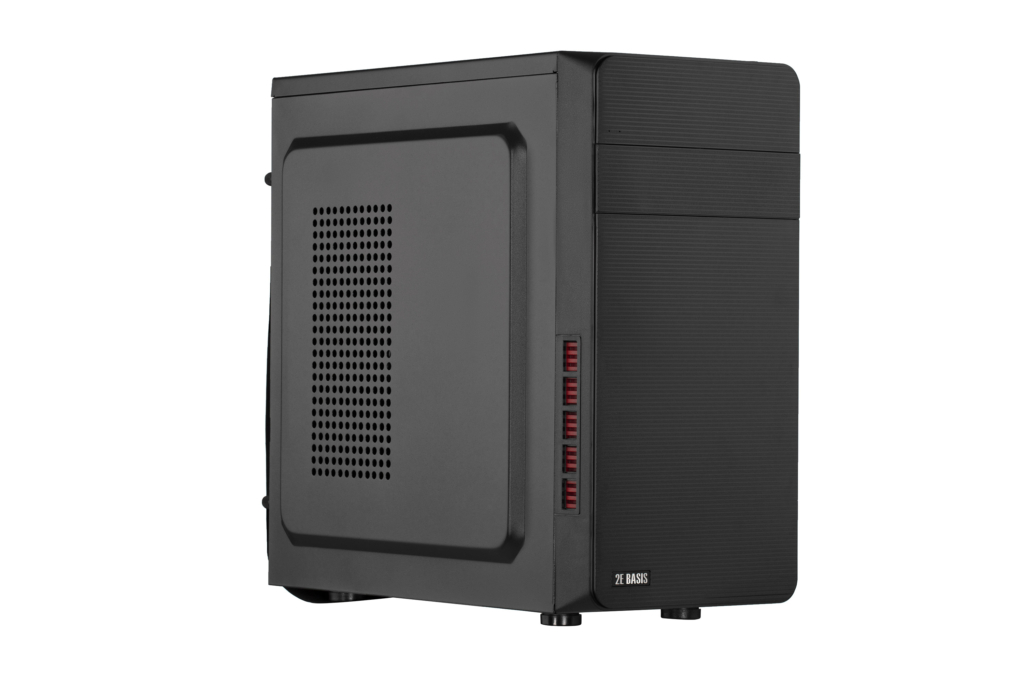

A compact case with a classic stylish front panel is perfect for self-assembly and industrial assembly due to the rationally organized internal space and simple design. Made of 0.5mm. The Mini Tower format guarantees compatibility with Micro ATX and Mini ITX motherboards.

Where to buy
Series BASIS (RD831)
Appointment Office/home
Type Mini Tower
Material Plastic, steel
Metal thickness, mm 0.5
Motherboards Micro ATX, Mini ITX
Power supply location On top
External 5.25″ 1 pc
Internal 2.5″ 2 (3) pcs
Internal 3.5″ 2 (1) pcs
Expansion slots 4 pcs
Included fans 1 pc (rear panel: 1x80mm)
120 mm fan support 1 pc (front panel)

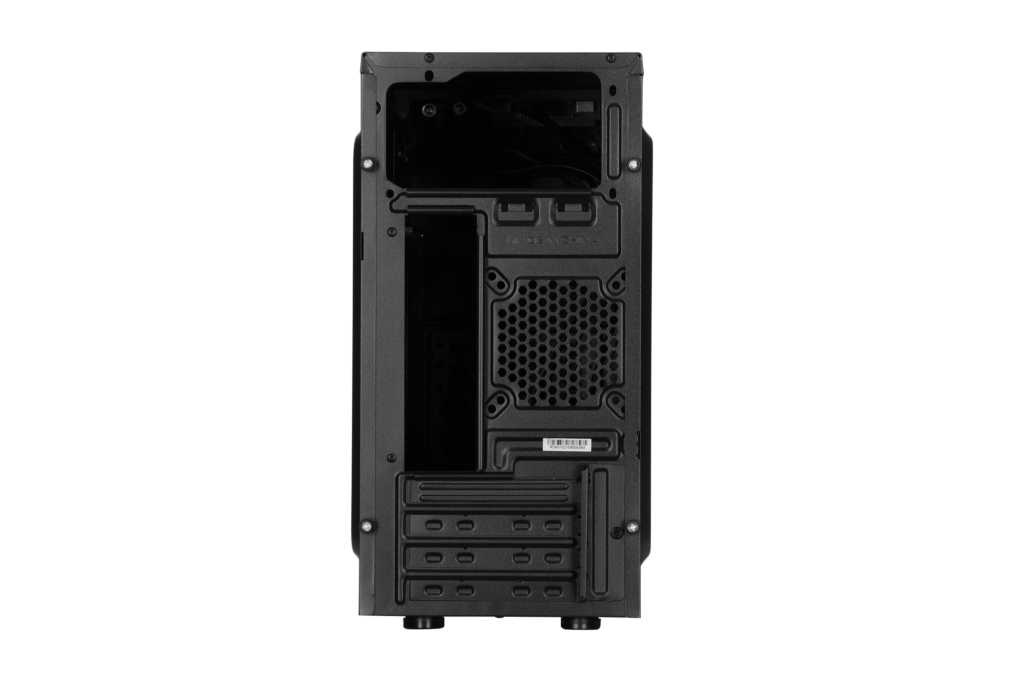

80 mm fan support 1 pc (rear panel)
Optional radiators, mm Non
USB 2.0 connectors 2 pcs
Audio (microphone/headphone) Yes
Buttons Power, Reset, Power LED, HDD LED
Max VGA length, mm 320
CPU cooler height, mm 142
Dust filter Non
Dimensions (WxHxL), mm 188x361x360
Weight, kg 2.3
Manufactured China
Warranty 12 months
High resolution photo

Key Features

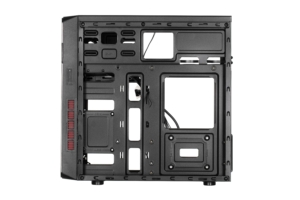

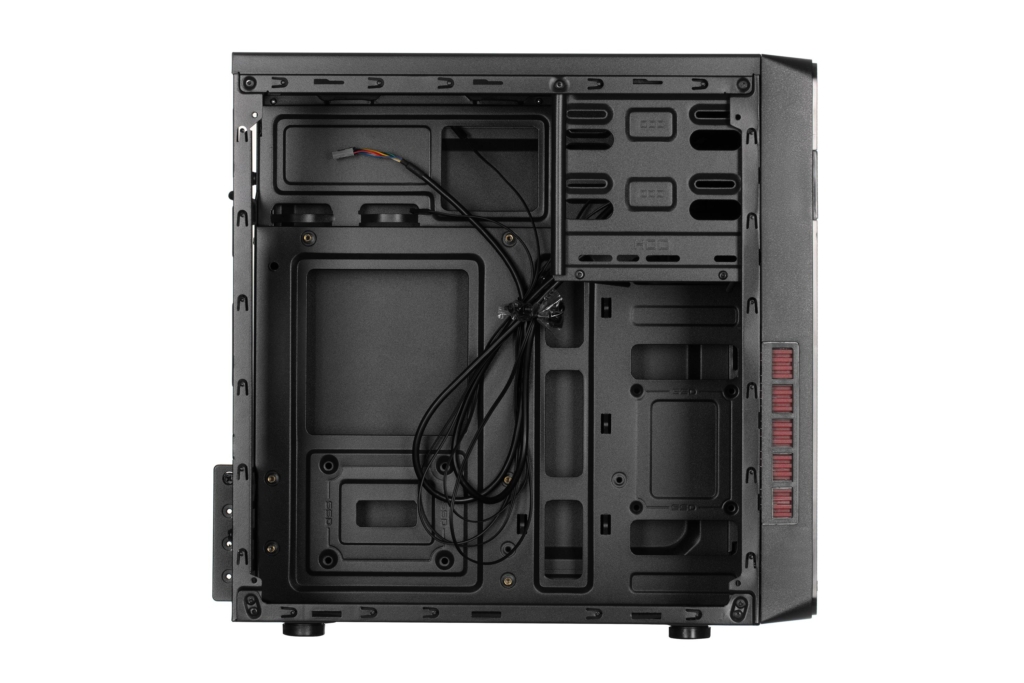

The 2E BASIS (RD831) is suitable for assembling a compact home or office system, as well as a mid-range budget workstation. The case provides space for installation of a sufficient number of drives (two 3.5ʺ HDDs and 2.5ʺ SSDs), numerous expansion boards (4 expansion slots) and a video adapter up to 320mm long. Additionally, there is another external 5.25ʺ bay.

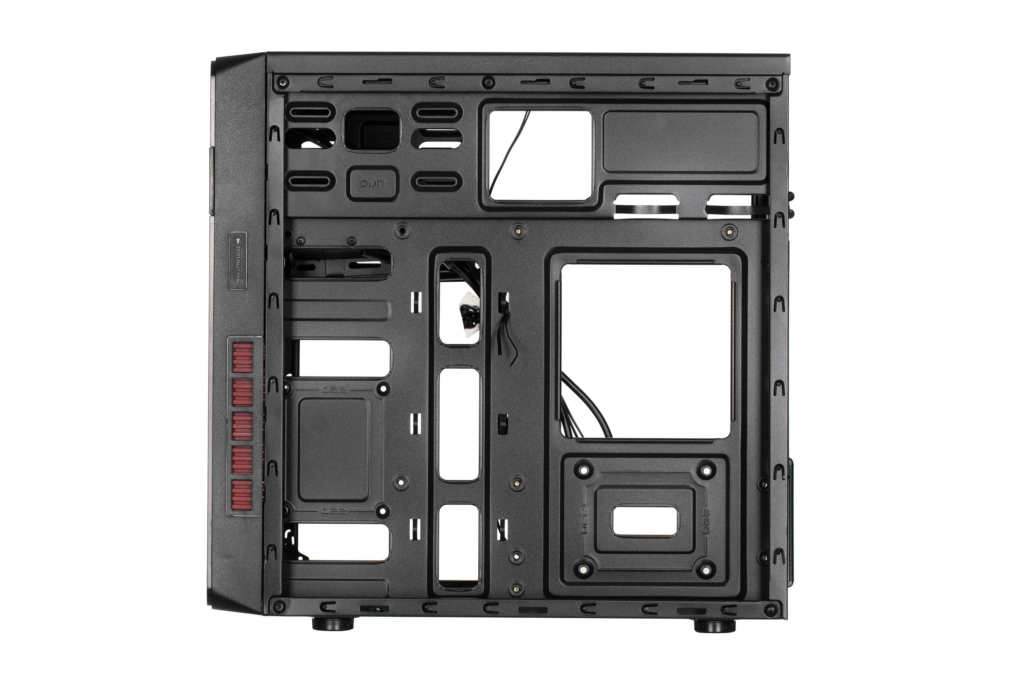

There is enough space for rational and convenient cable management, as well as for installing two fans (120mm on the front panel and 80mm on the rear panel) and CPU cooling up to 142mm high.

Connectors and Controls

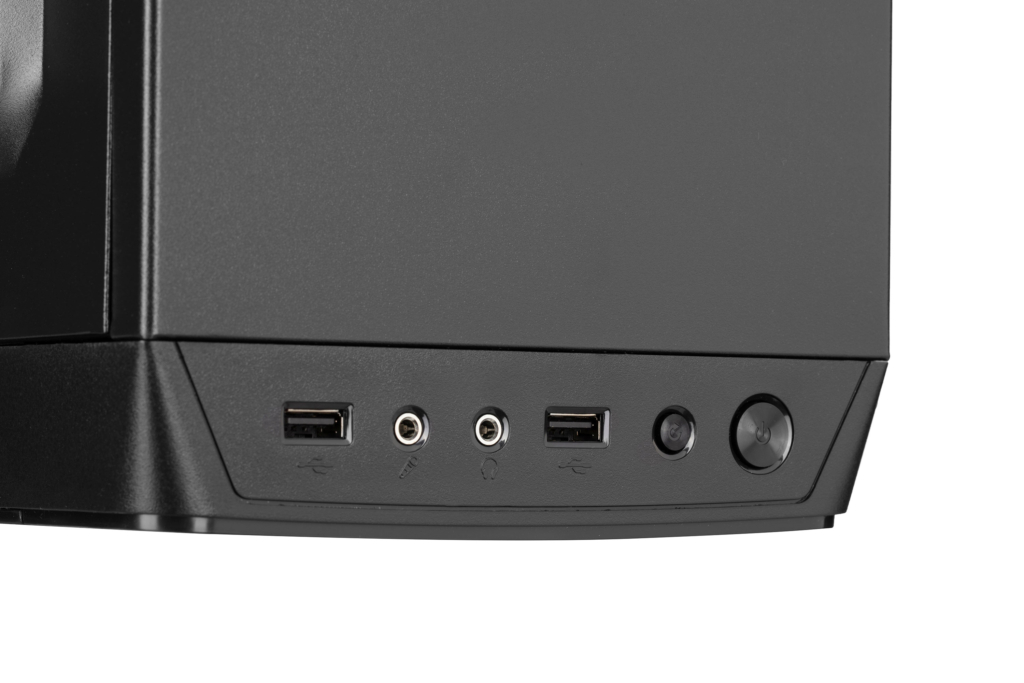

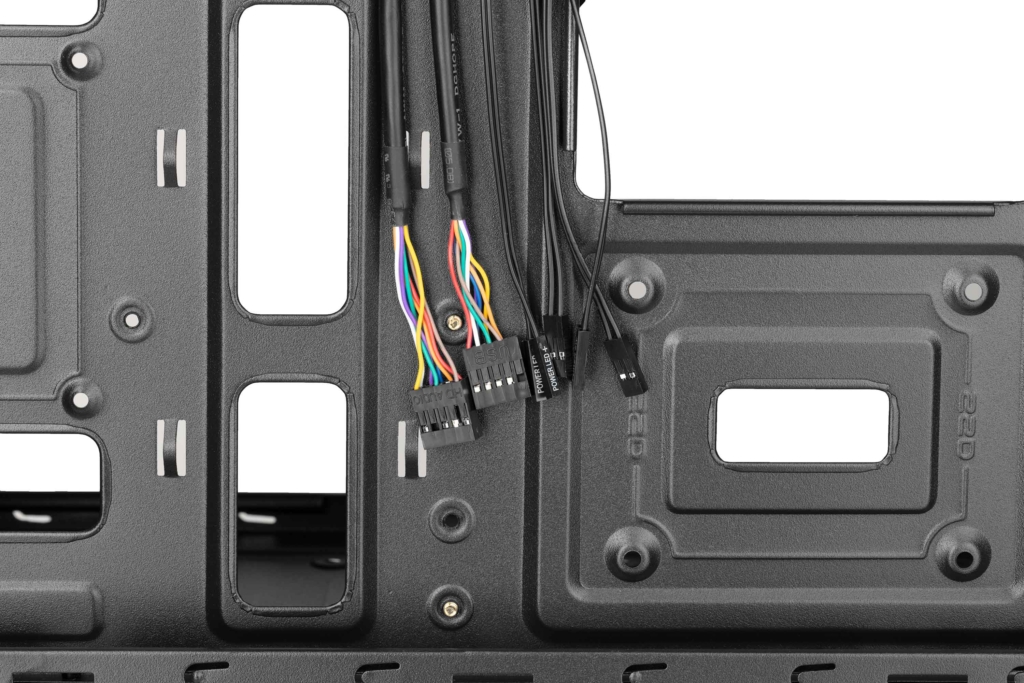

For connecting, managing and controlling computer peripherals, the case has two USB 2.0 connectors, HD AUDIO+MIC output, Power/Reset buttons and Power LED, HDD LED indicators. The kit includes instructions and a set of fasteners.
