2E PC case Basis RD8603U-400 with PSU 2E ATX400W, 1xUSB3.0, 2xUSB2.0, VGA 320mm, mATX, black
2E PC case Basis RD8603U-400 with PSU 2E ATX400W, 1xUSB3.0, 2xUSB2.0, VGA 320mm, mATX, black
2E PC case Basis RD8603U-400 with PSU 2E ATX400W, 1xUSB3.0, 2xUSB2.0, VGA 320mm, mATX, black
2E PC case Basis RD8603U-400 with PSU 2E ATX400W, 1xUSB3.0, 2xUSB2.0, VGA 320mm, mATX, black
2E PC case Basis RD8603U-400 with PSU 2E ATX400W, 1xUSB3.0, 2xUSB2.0, VGA 320mm, mATX, black
2E PC case Basis RD8603U-400 with PSU 2E ATX400W, 1xUSB3.0, 2xUSB2.0, VGA 320mm, mATX, black
2E PC case Basis RD8603U-400 with PSU 2E ATX400W, 1xUSB3.0, 2xUSB2.0, VGA 320mm, mATX, black
2E PC case Basis RD8603U-400 with PSU 2E ATX400W, 1xUSB3.0, 2xUSB2.0, VGA 320mm, mATX, black
2E PC case Basis RD8603U-400 with PSU 2E ATX400W, 1xUSB3.0, 2xUSB2.0, VGA 320mm, mATX, black
2E PC case Basis RD8603U-400 with PSU 2E ATX400W, 1xUSB3.0, 2xUSB2.0, VGA 320mm, mATX, black
2E PC case Basis RD8603U-400 with PSU 2E ATX400W, 1xUSB3.0, 2xUSB2.0, VGA 320mm, mATX, black
2E PC case Basis RD8603U-400 with PSU 2E ATX400W, 1xUSB3.0, 2xUSB2.0, VGA 320mm, mATX, black
2E PC case Basis RD8603U-400 with PSU 2E ATX400W, 1xUSB3.0, 2xUSB2.0, VGA 320mm, mATX, black

2E PC case Basis RD8603U-400 with PSU 2E ATX400W, 1xUSB3.0, 2xUSB2.0, VGA 320mm, mATX, black

Product code: 2E-RD8603U-400

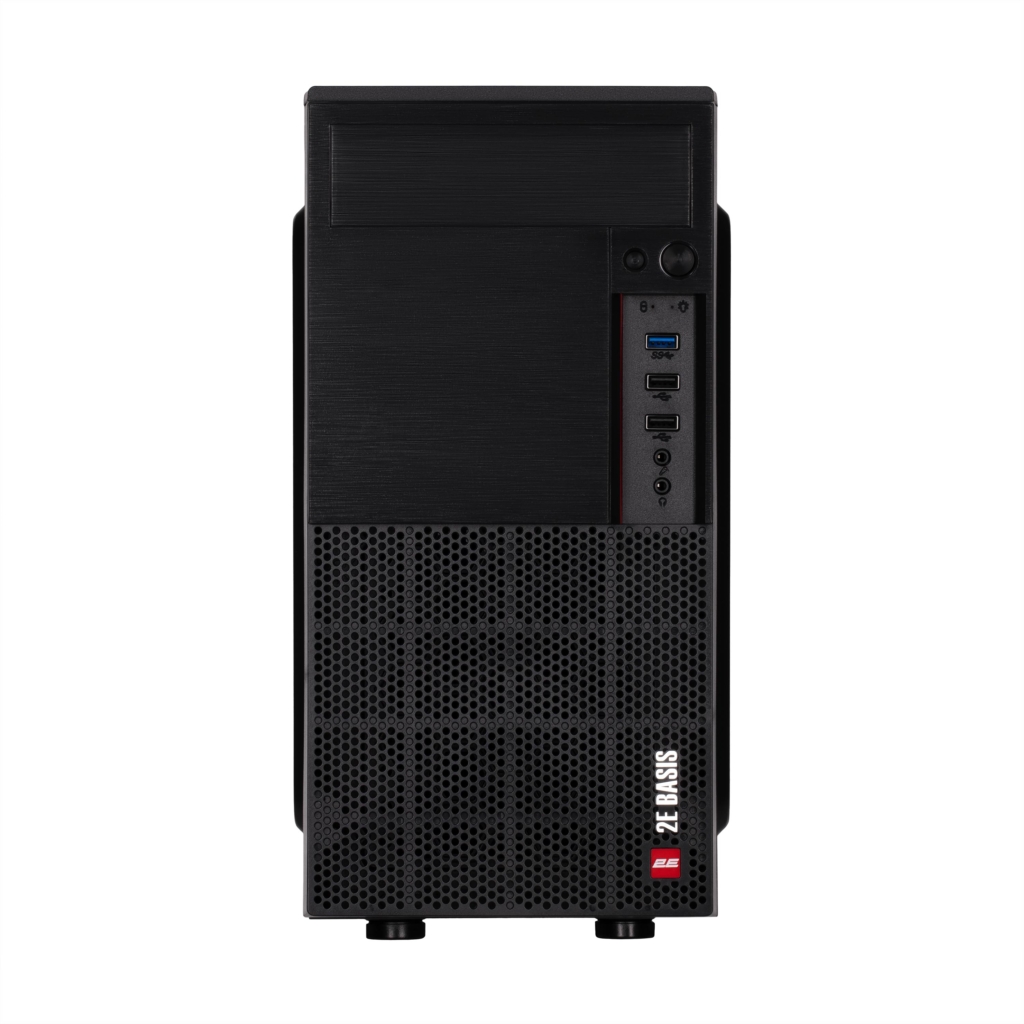

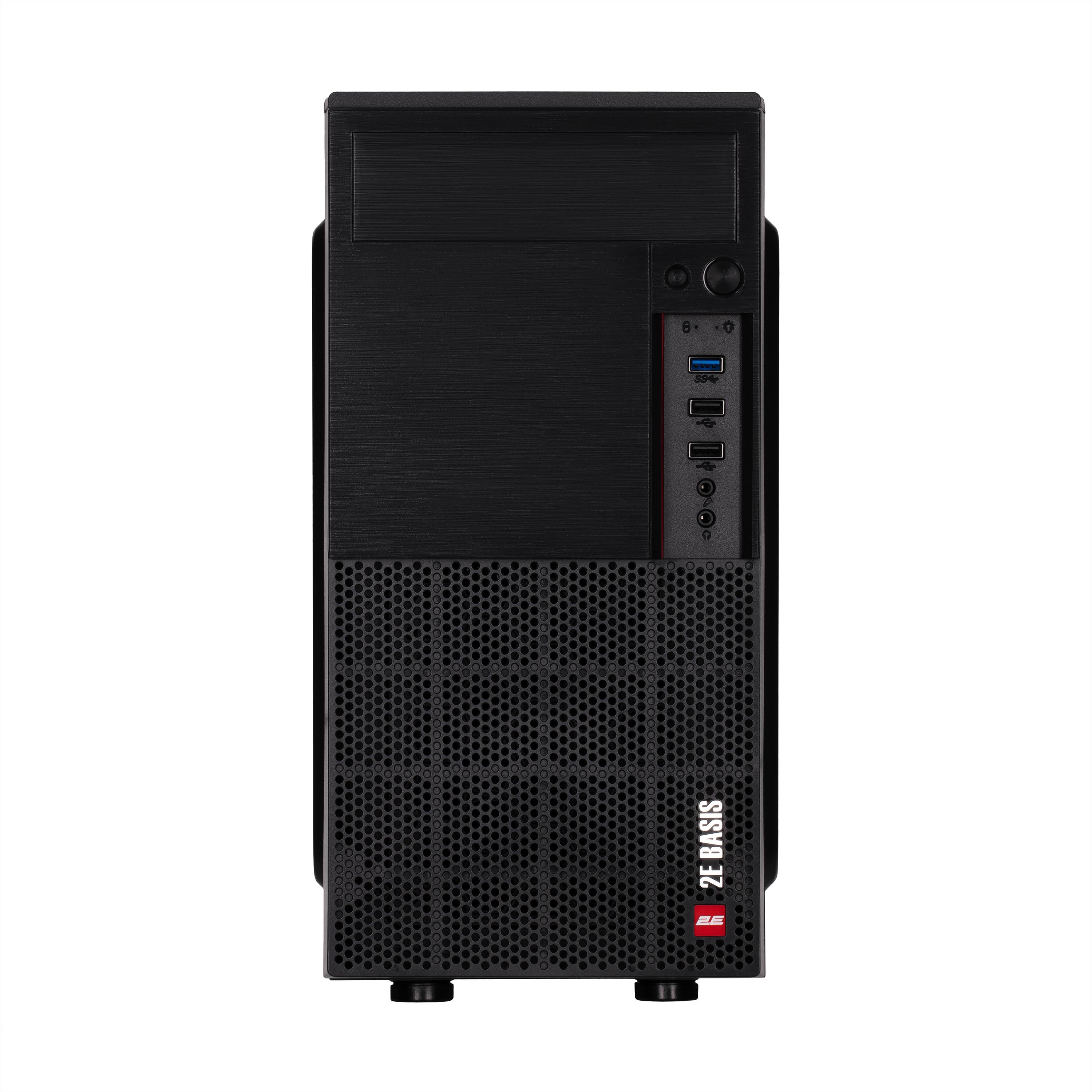

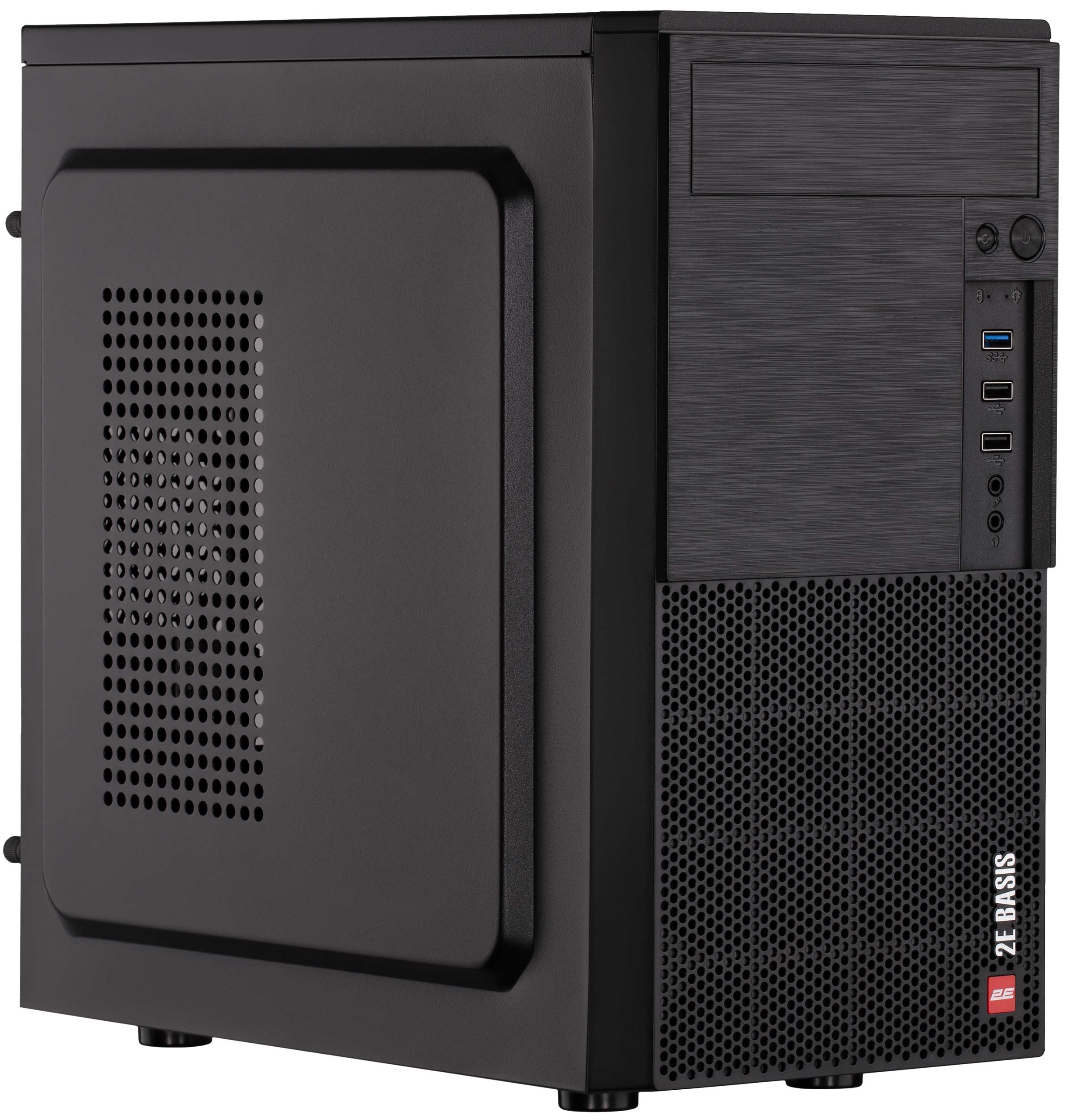

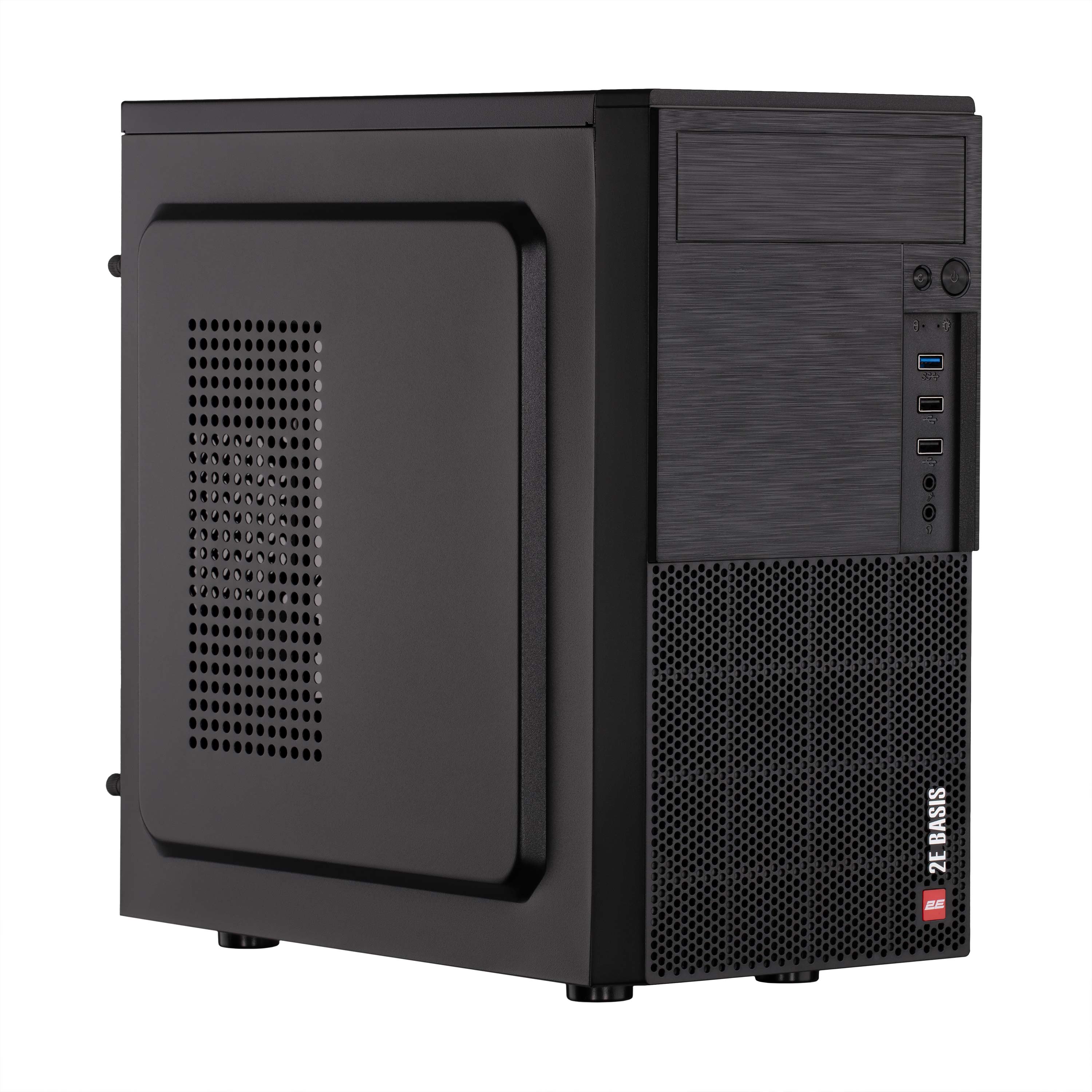

The 2E Basis RD8603U-400 case is neat and compact, with a combined stylish front panel, perfect for DIY and industrial assembly, thanks to its rationally organized internal space and simple design.

32.99 €*
Main:
Category standard/office
Case type Mini Tower
Motherboard type mini-ITX / micro-ATX

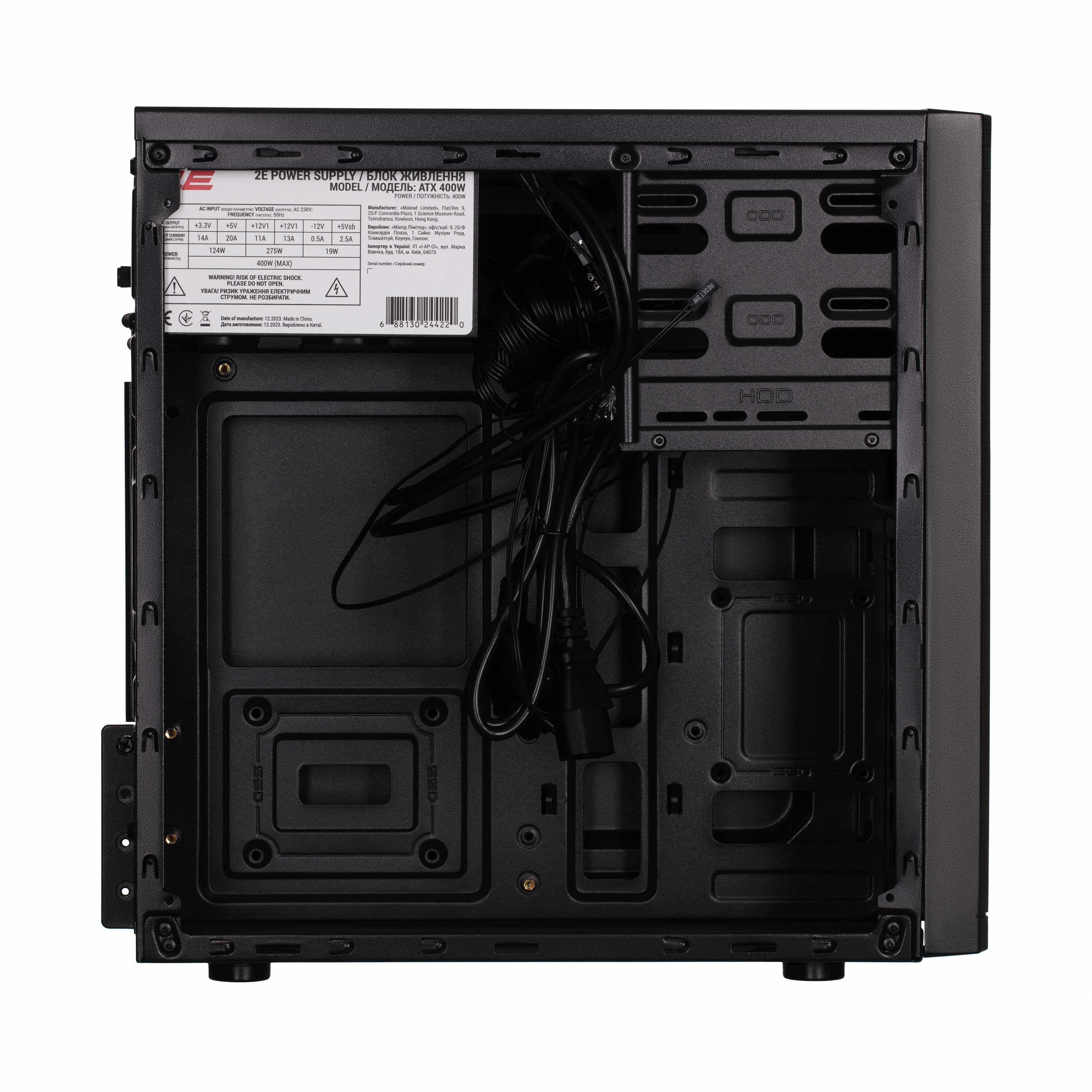

Inner part:
Location PS upper
Compartments 5,25" 1 pcs
Internal compartments 2.5" 2 3
Internal compartments 3.5" 2 pcs (1)
Holes for expansion slots 4 pcs
Power complete PSU 400 W
Power supply unit:
Maximum power of PSU 400 W
Rated power of PSU 200 W

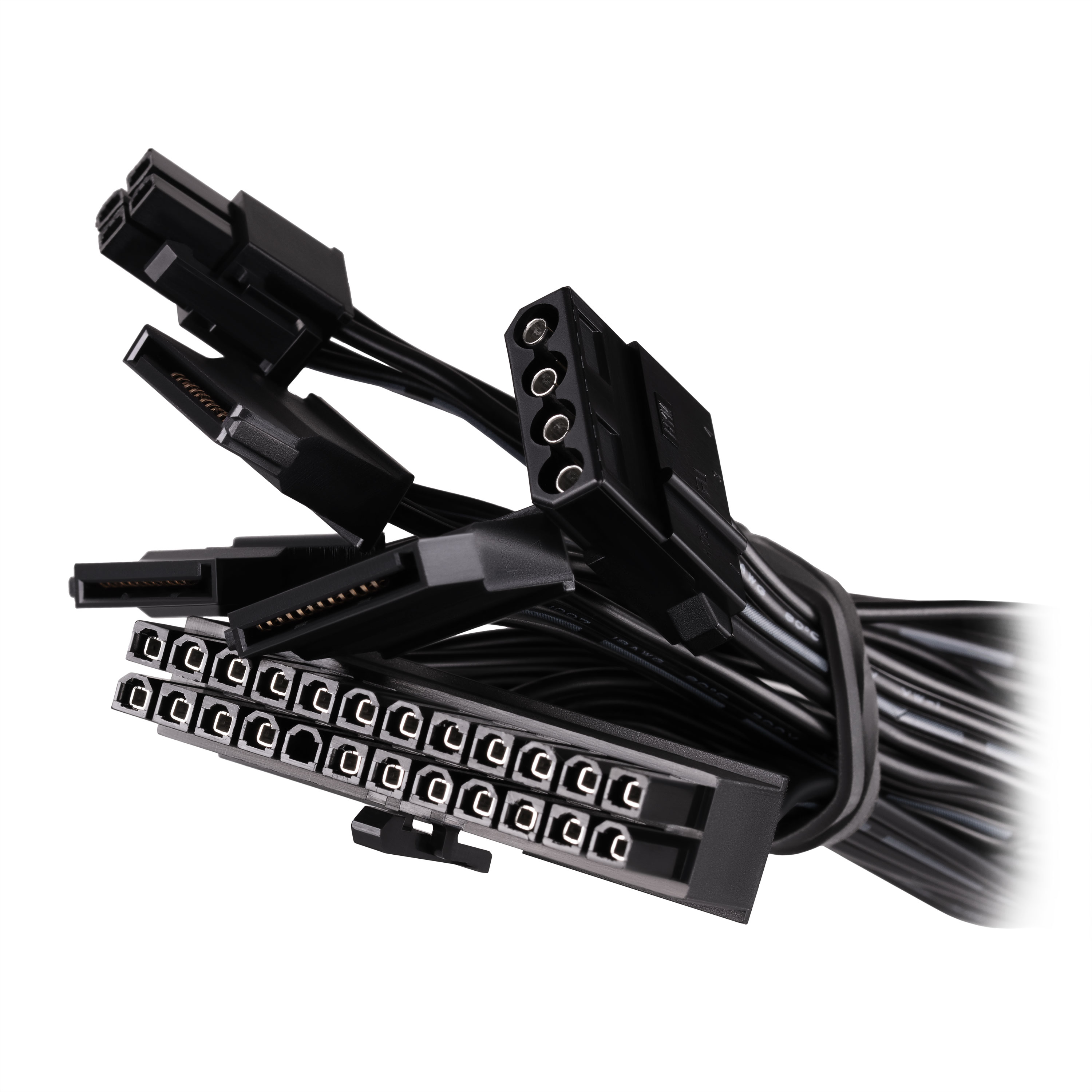

Motherboard Power Connector 24 pin
CPU Power Connector 4 pin
Graphics card Power Connector no
Peripheral/FDD/SATA Connectors 1 / 0 / 3
Cooling 1x120mm fan
Cooling and airflow:
12 cm Fan Support 1 pcs (Front panel: 1x 120)

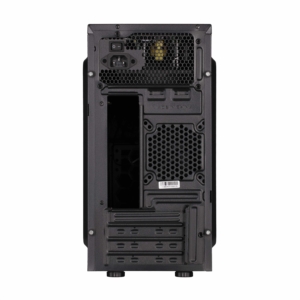

8 cm Fan Support 1 pcs (Rear panel: 1x 80 (90))

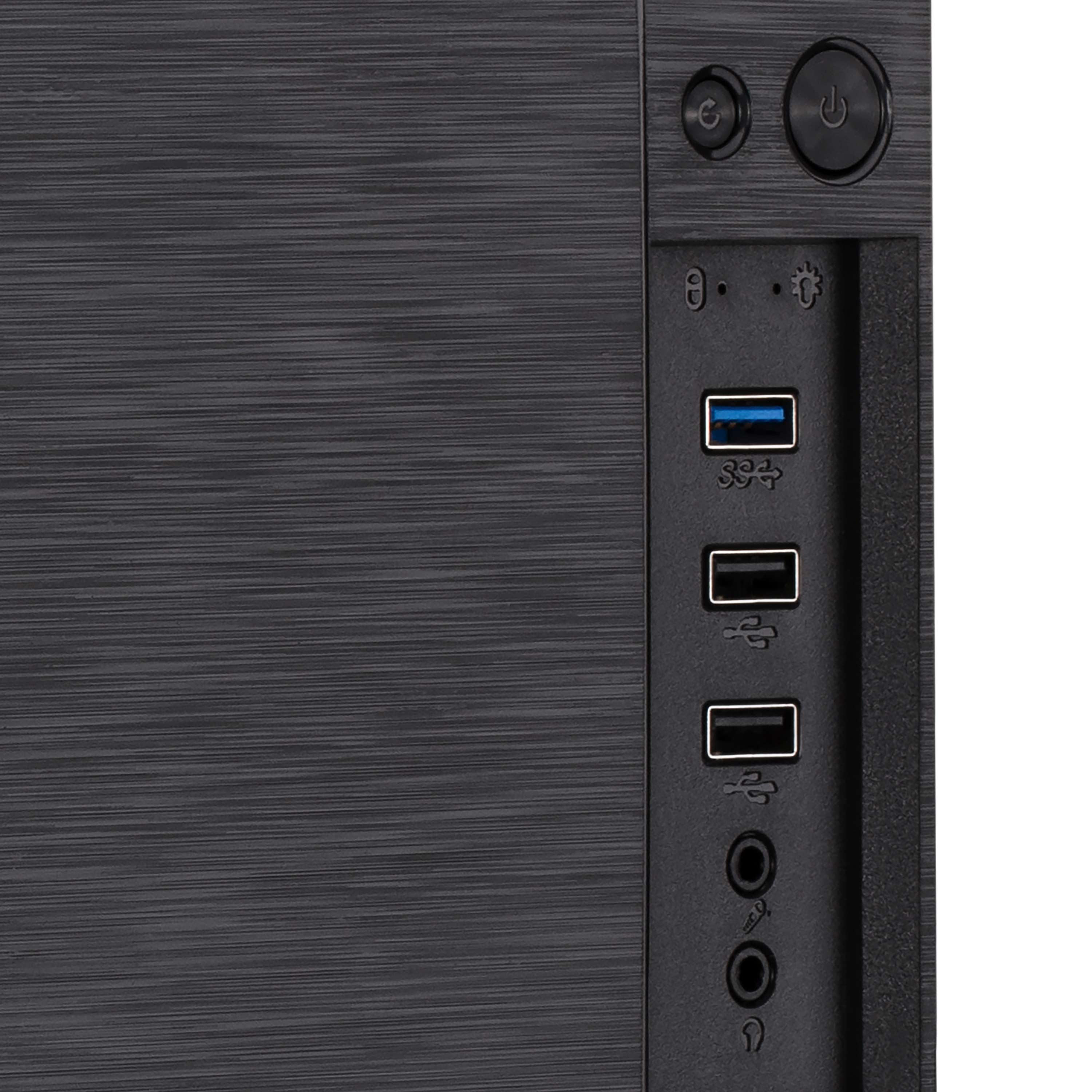

Connectors on the front panel:
USB 2.0 connectors 2 pcs
USB 3.0 connectors 1 pcs
Additionally:
Buttons Power / Reset / Power LED / HDD LED
Physical:
Material steel / plastic
Colour black
The weight 3 kg
Height 361 mm
Width 188 mm
Depth 360 mm

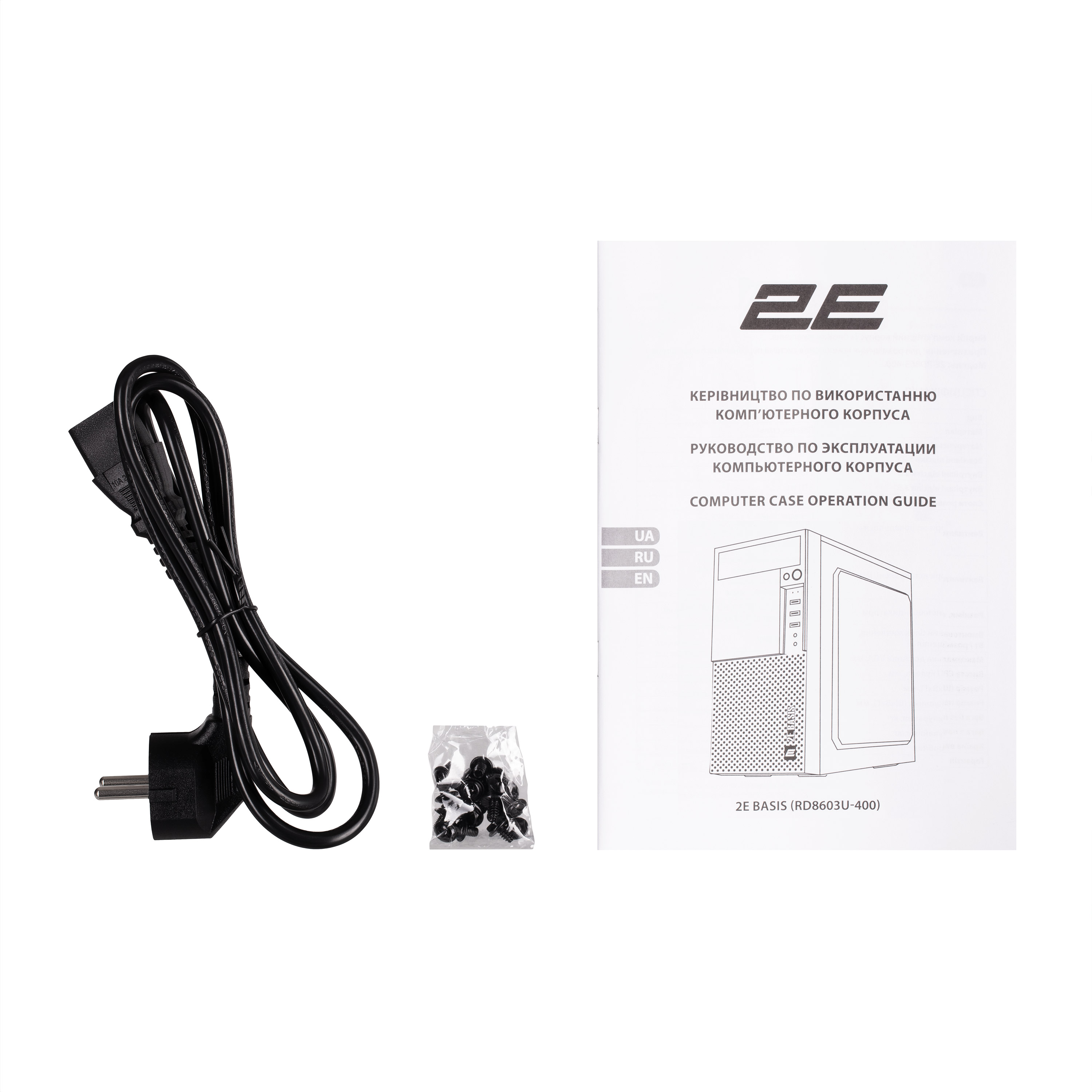

Contents of delivery set of fasteners / User's manual
Height of CPU cooler (max.) 142 mm
Maximum length of VGA 320 mm
Gross size:
Weight 3.60 kg
Length 400 mm
Height 420 mm
Width 220 mm
Volume 0.0370 m³
Warranty:
Warranty 12 months
User manual High-resolution photo Data Sheet

Made of 0.5mm steel. The Mini Tower case size is compatible with Micro ATX, Mini ITX motherboards.

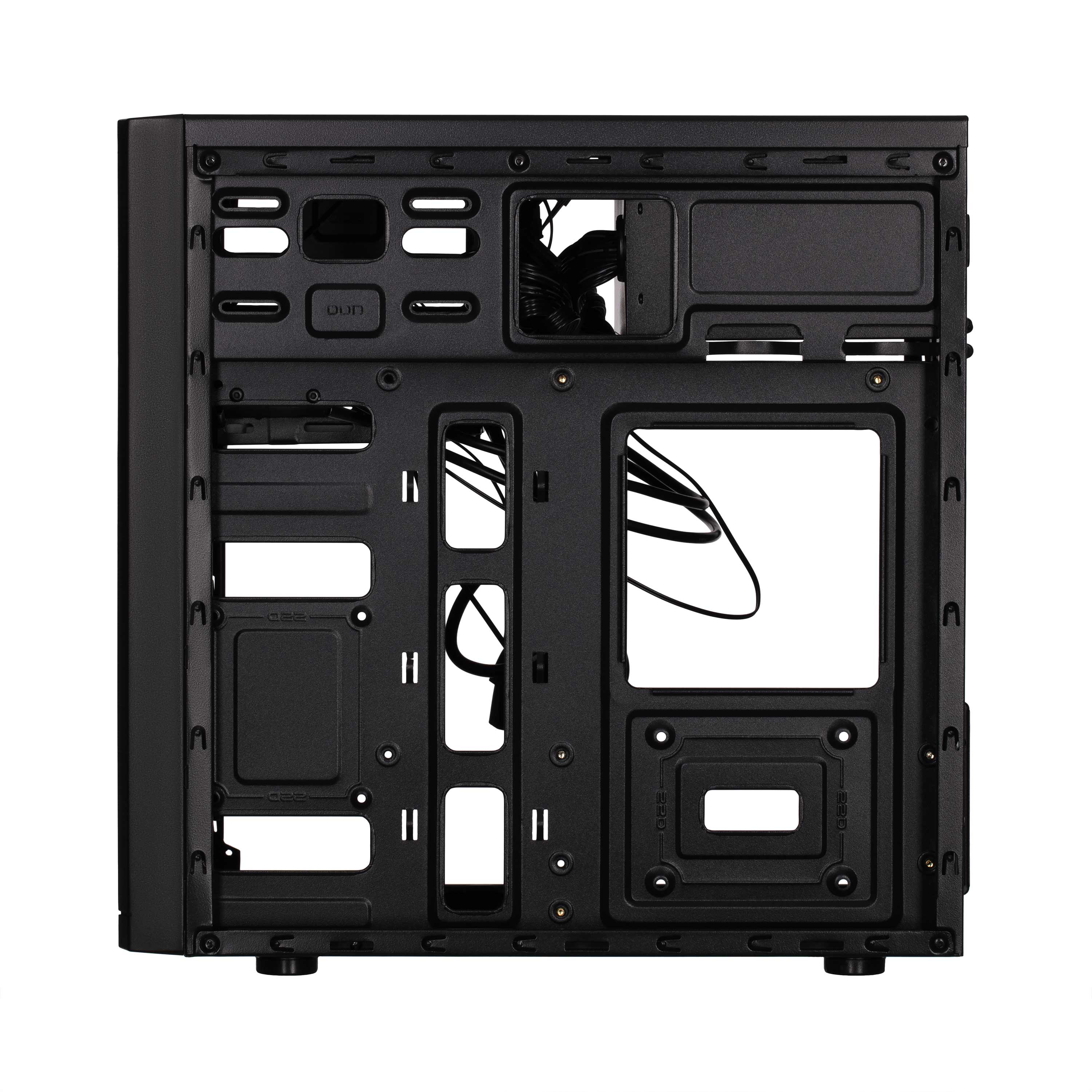

2E Basis RD8603U-400 is suitable for assembling a compact home or office system, as well as a budget, mid-level workstation. The case provides the ability to install a sufficient number of drives and numerous expansion cards (4 expansion slots), a video adapter up to 320 mm long. The case provides space for neat cable management, two fans can be installed, and cooling for a processor no more than 142 mm high.

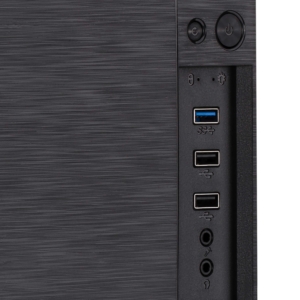

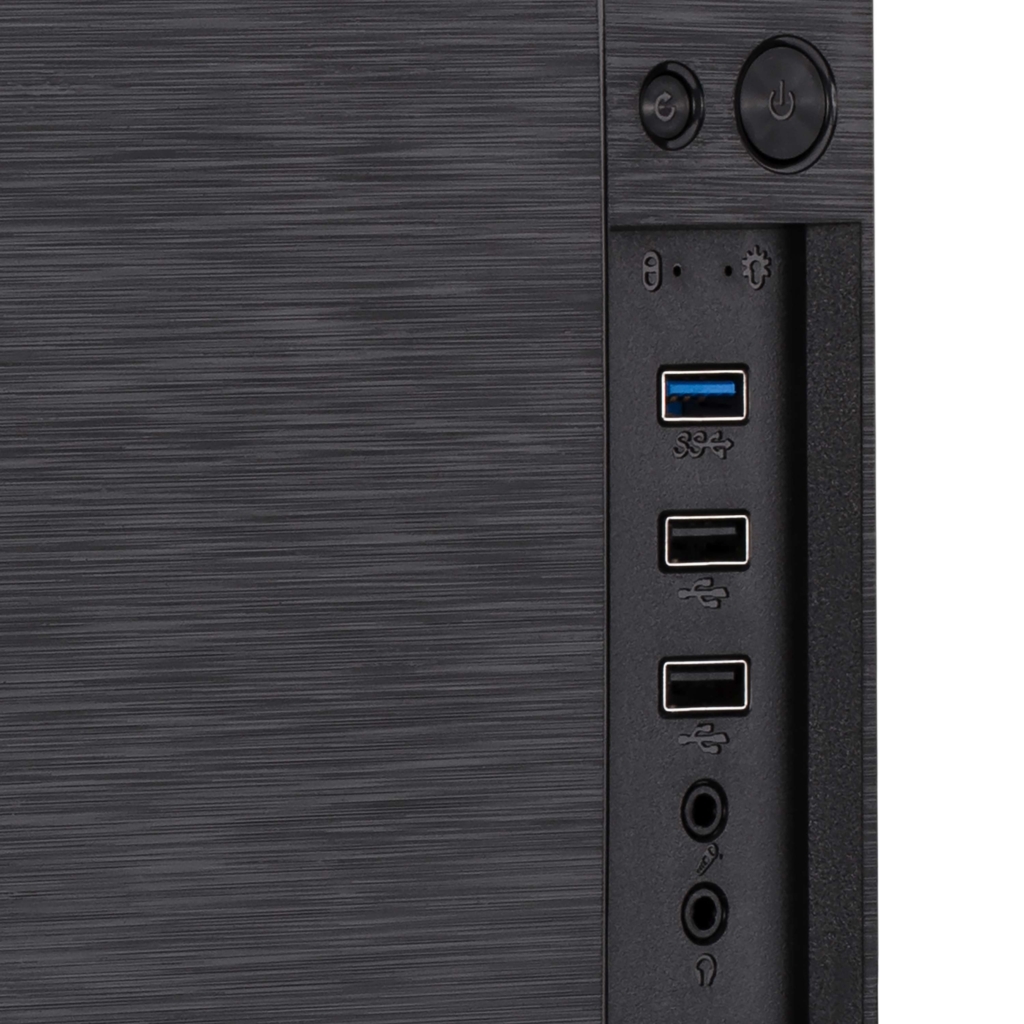

To connect, control and monitor computer peripherals, the case has 2xUSB 2.0, 1xUSB 3.0, HD AUDIO+MIC connectors, Power, Reset, Power LED, HDD LED buttons and indicators.

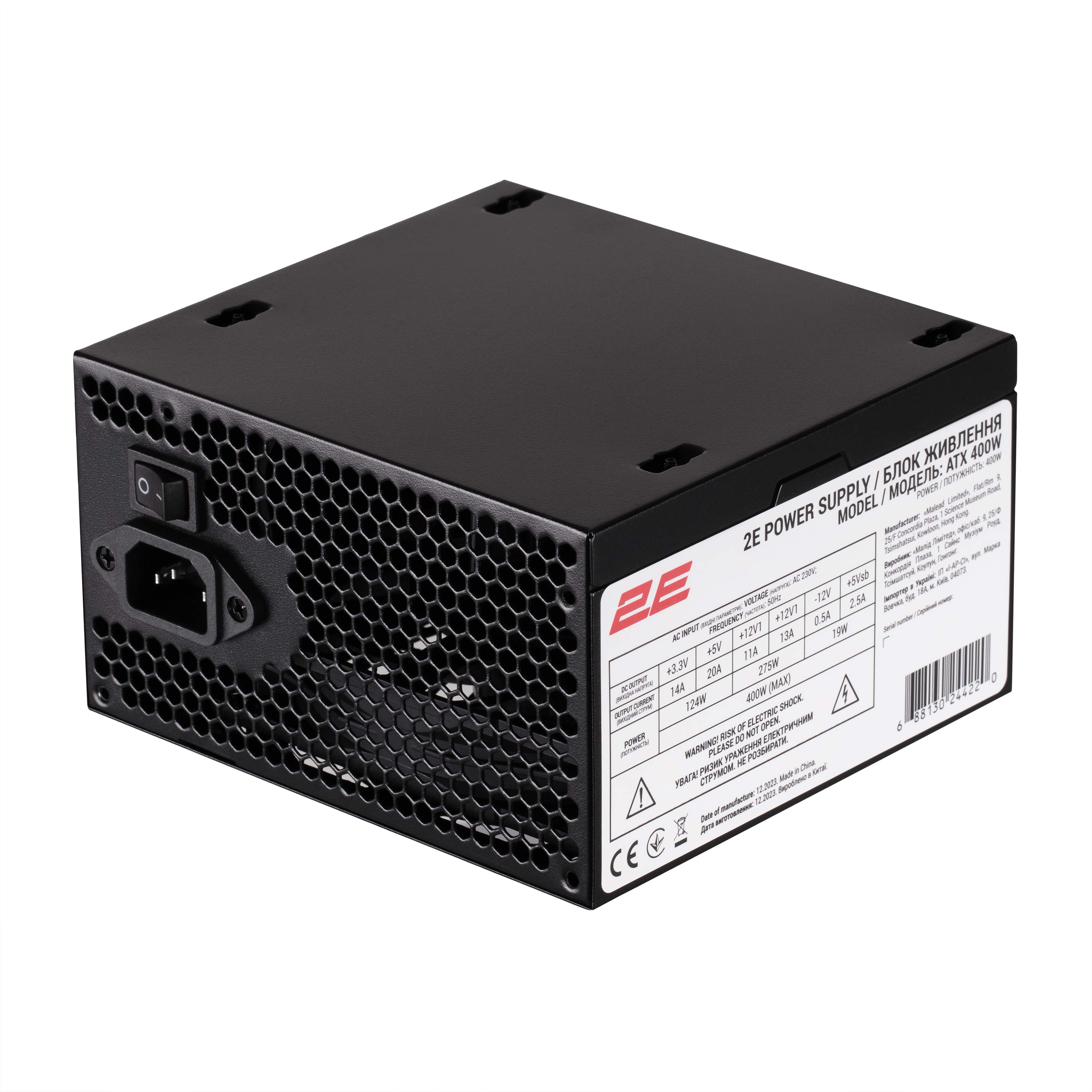

The case has a built-in power supply (with power cable), 400W power – top location. The model includes instructions and a set of fasteners.
