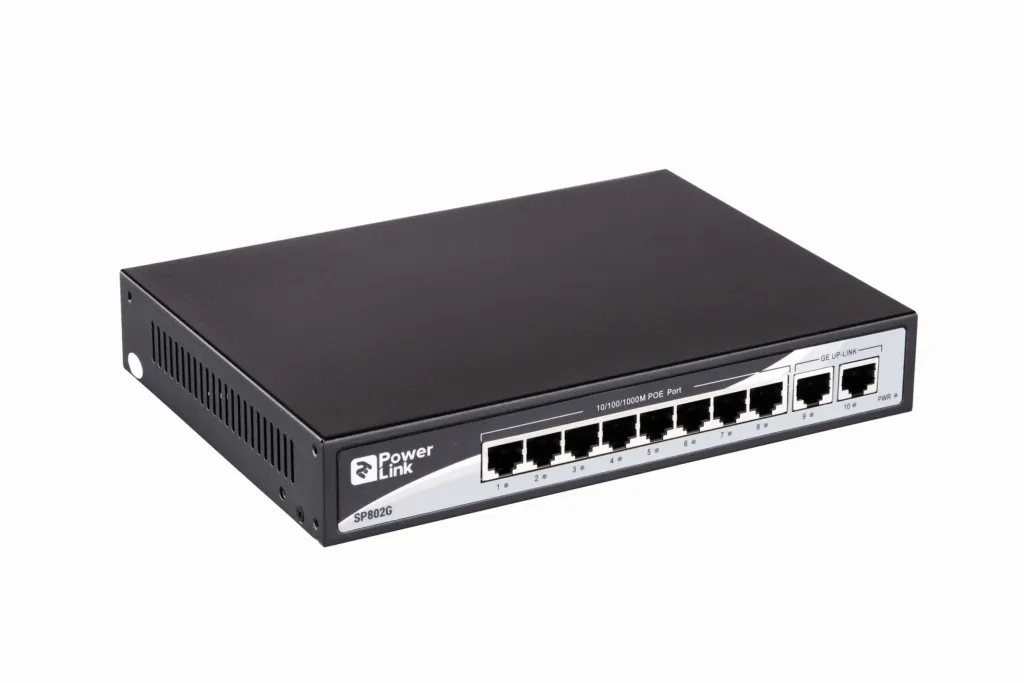

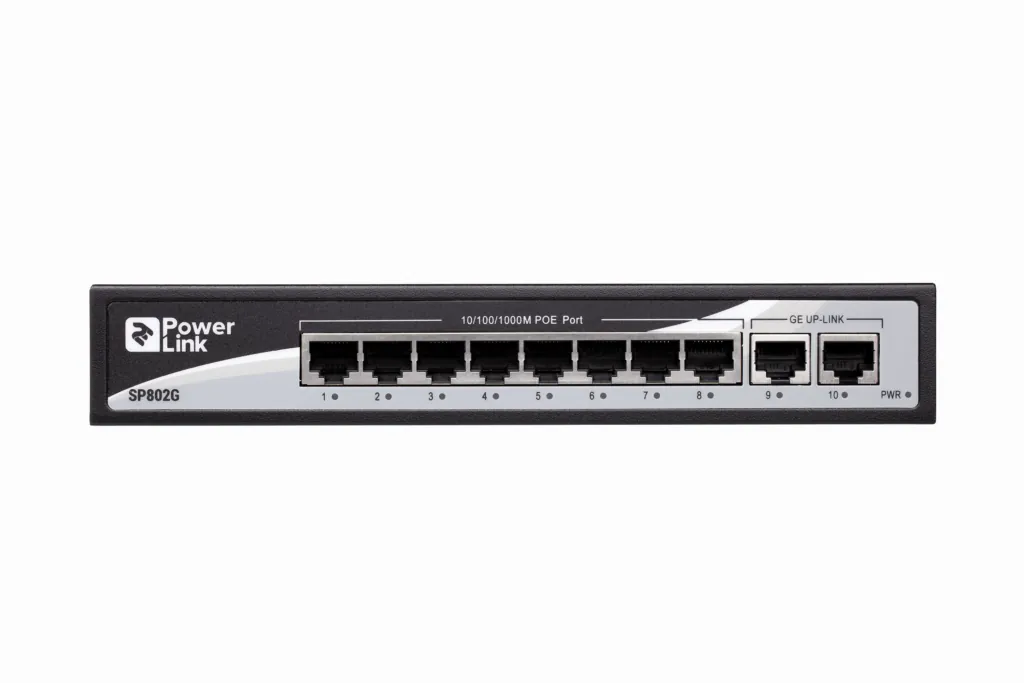

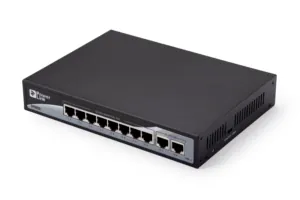

Switch 2E PowerLink SP802G 10xGE (8xGE PoE, 2xGE Uplink, 150W), unguided

Код товару: 2E-SP802G

The switchboards series 2E Powerlink 10/100Mbps or 10/100/1000M Power over Ethernet is based on high-quality network chips in the most stable POE chip. As well as provide support for 802.3af and 802.3at standards. This series of PoE switches, depending on the model, provides reliable speed connection to both Fast Ethernet and Gigabit Ethernet. The PoE controller can automatically detect and provide power to all IEEE 802.3af / at (PD) devices. However, Non-PoE devices are not able to receive power over PoE, but can transmit data. Each model of this series of PoE switchboards includes both ports that support PoE power, as well as 1-2 ports non-PoE ports for uplink, in order to file the necessary data flow to the most PoE devices connected to the switch. In order to receive data through the SFP uplink port, you must connect the appropriate SFP transceiver.

Where to buy
Type Switch
Switch Type Unguided
Number of ports 10
Ports 8xGE PoE /10/100/1000, 2xGE Uplink /10/100/1000
Transmission method Store-and-forward
Indicators Power, Link/Activity, FDX
Mac address learning Automatic update
Support PoE Yes
PoE power budget, W 150
Standards and protocols IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3x Flow Control, IEEE 802.3at Power over Ethernet, IEEE 802.3z 1000BASE-X, IEEE 802.3af, IEEE 802.3ab 1000BASE-T
Certificates C-Tick, CE, FCC Class A, VCCI Class A
Additional features Auto-MDI/MDIX polarity detection
Operating temperature From 0° to 50°C
Storage temperature From -40 to 70 °C
Operating humidity From 5% to 90%
Storage humidity From 5% to 95%

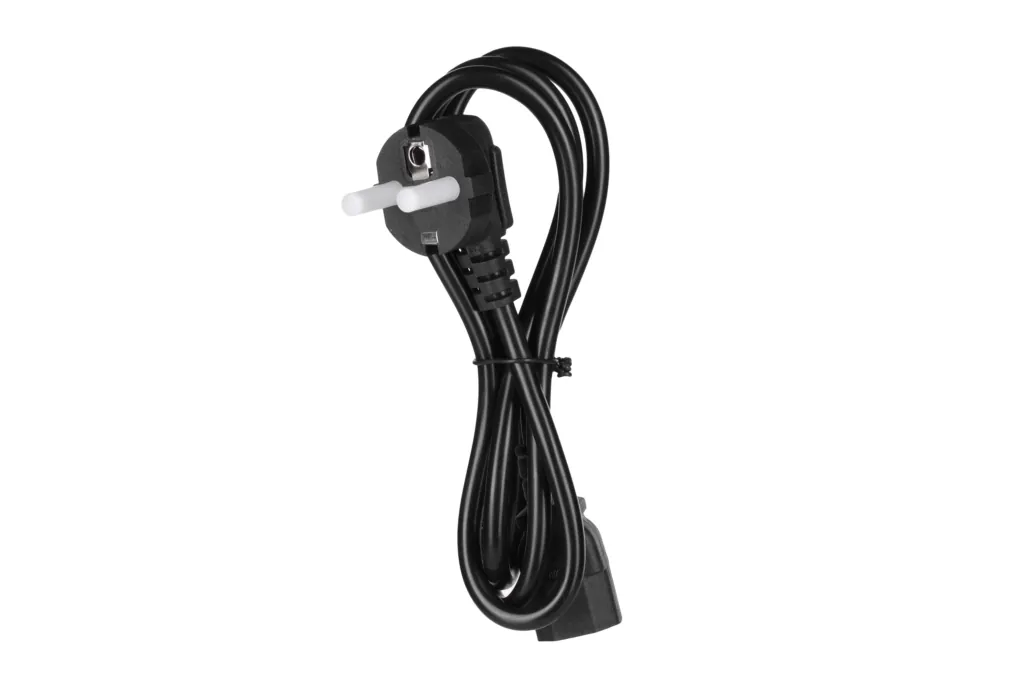

Kit Switch, power cord, manual, warranty card
Manufactured China
Warranty 12 months
Package dimensions (WxHxD), cm 30x19x6
Package weight, kg 1.0
Package volume, m3 0.0034
