Solar MC4 connectors with Spanners 2E

Product code: 2E-ASP-MC4-SPAN

Connector set with a MC4 connector for solar panels is made of polycarbonate, the contacts are made of tinned copper. Products have low resistance and high load capacity. The connectors are equipped with a waterproof ring (IP67 class) that can seal water and dust to prevent corrosion, ensuring safe and long-term use.

MC4 connectors
Max. operating voltage up to 1,000 V
Max. operating current up to 30 A
Operating temperature range is -40 °C ~ +85 °C
The contact material is tinned copper

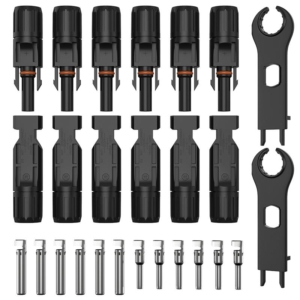

Complete set: 6 male connectors, 6 female connectors, 12 tinned copper contacts, 2 connector clamp keys

9.99 €*

Downloads

Instructions and Software

Choose

High-resolution photo

Basic:

Type	Solar panels connectors set
Connector type	МС4
Voltage	1000 W
Maximum operating current	30 A
Operating temperature range	-40 ~ +85
Contact material	tinned copper

Specifications

MC4 connectors
Max. operating voltage up to 1,000 V
Max. operating current up to 30 A
Operating temperature range is -40 °C ~ +85 °C
The contact material is tinned copper
Complete set: 6 male connectors, 6 female connectors, 12 tinned copper contacts, 2 connector clamp keys

The connectors are fire resistant, and also withstand the effects of high and low temperatures and ultraviolet light. It is possible to use it in adverse weather conditions for a long time. Compatible with photovoltaic cables with different conductor diameters (from 2.5 to 6 mm²). The assembly tools included in the kit help to save time and effort.
