Solar inverter 2E SM-4K24T 4000VA/4000W, 24V, MPPT, 2xTerminal out

Product code: 2E-SM-4K24T

The 2E SM-4K24T autonomous solar inverter is the optimal solution for those seeking an environmentally friendly and cost-effective way to power their homes and businesses. The device not only provides high efficiency of solar energy conversion, but also meets the most stringent requirements for reliability, ease of use and environmental safety.

  • Power 4 kW
  • Built-in chargers (mains and MPPT)
  • External battery 24 VDC
  • Input 176-280 VAC, ~50/60 Hz, Hardwired
  • Output 230 VAC ~50/60 Hz, pure sine wave, Hardwired, (1+1 controlled AC output)
  • Max. power of PV array 5,000 W, 1 × 27 A
  • MRRT 60-450 VDC
  • Max. power supply current 120 A (combined)
  • Interfaces RS-232/485, USB-OTG, Wi-Fi, Dry-contact
17 670 uah.*
Main:
A type Stand-alone inverter з вбудованим мережевим і MPPT сонячним ЗП
Connection RS-232 /485 / dry contact relay / Wi-Fi / USB-OTG
Specifications:
Battery External 24VDC
Power 4000 V•A
Full power 4 kVa
Input 176-280VAC, ~50/60Hz, Hardwired
Exit 230VAC ~ 50 / 60Hz, pure sine wave, Hardwired 1+1 керований вихід ОС
Maximum power of PE array 5000 W 1x27A
MPPT window 60 - 450
Max. current of charger 12 A
Physical characteristics:
Dimensions ( HxWxD ) 435 x 300 x 115
The weight 9 kg

4 kVA for Energy Independence

With its 4kVA/4kW output, this inverter provides a stable power supply for a wide range of devices. Given its autonomy and built-in chargers (mains and MPPT), it makes efficient use of solar energy, optimizing the charging process of the external 24 VDC battery.

Pure Sine Wave for Safe Power Supply

The input voltage of 176-280 VAC and frequency of ~50/60 Hz ensures compatibility with various power supplies, while the 230 VAC output voltage with pure sine wave ensures safe power supply to the connected devices. A special feature of this inverter is the ability to control two AC output lines, which allows for even more flexible power supply system organization.


Stable Power Supply Even on Cloudy Days

The maximum power of the photovoltaic array supported by the inverter is 5,000 W, and the MPPT window in the range of 60-450 VDC is the key to optimal use of solar panel energy. With a maximum charge current of 120 A, the model will help to quickly and efficiently charge an external 24 VDC battery, providing stable power even in cloudy weather.

A Wealth of Interfaces

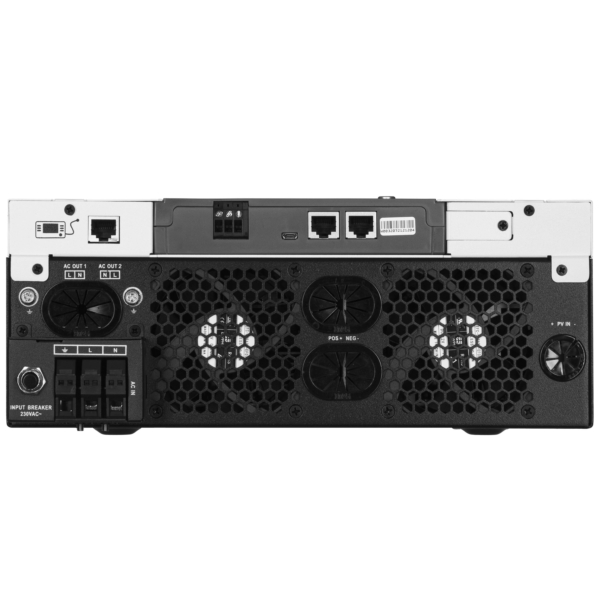

The built-in RS-232/485, USB-OTG, Wi-Fi and Dry-contact interfaces make this inverter extremely user-friendly, allowing it to be easily integrated into an existing system. Its compact size (300 × 435 × 115 mm) and weight of 9 kg make it easy to install and transport.
