Solar Cables 2E with MC4 connector – 4T1
Solar Cables 2E with MC4 connector – 4T1
Solar Cables 2E with MC4 connector – 4T1

Solar Cables 2E with MC4 connector – 4T1

Product code: 2E-ASP-MC4-4T1

Two four-line splitter cables are designed for parallel or series-parallel connection of portable solar or PV panels with MC4 connector. It is possible to connect two or more solar panels (or two or more chains of solar arrays) with the same voltage, while preventing the mutual influence of the panels. They make it possible to expand the existing or build a new system of solar panels, both permanently installed and portable. It can be used under adverse environmental conditions. Simple connection and disconnection are ensured without the use of additional tools.

  • MC4 connectors
  • Max. operating voltage up to 1,000 V
  • Max. operating current up to 30 A
  • The cross-section of the cable is 4 mm2
  • Compliance with CE62930, IEC131, H1Z2Z2-K standards
  • Operating temperature range -40 °C ~ +85 °C
  • The contact material is tinned copper
  • The length of one cable is ~30 cm
960 uah.*
High-resolution photo
Basic:
Type Solar panel cable
Connector type МС4
Cable length 0.3 m
Voltage 1000 W
Maximum operating current 30 A
Cable cutting 4 mm²
Cable standard CE62930 / IEC131 / H1Z2Z2-K
Operating temperature range -40 ~ +85
Contact material tinned copper
Additionally polarity is marked with color

Features:

  • MC4 connectors
  • Max. operating voltage up to 1,000 V
  • Max. operating current up to 30 A
  • The cross-section of the cable is 4 mm2
  • Compliance with CE62930, IEC131, H1Z2Z2-K standards
  • Operating temperature range -40 °C ~ +85 °C
  • The contact material is tinned copper
  • The length of one cable is ~30 cm

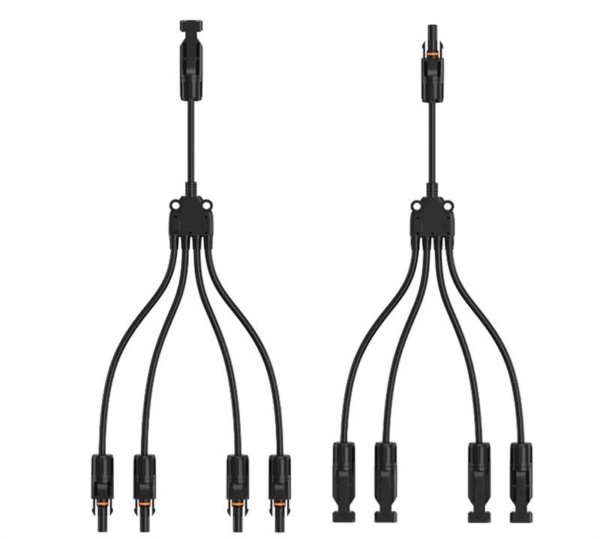

Branching pattern: 1 × male (+) to 4 × female (-) and 1 × female (-) to 4 × male (+). Polarity is marked by color: "+" is red; "-" is black.
