Solar Cable 2E XT60 to MC4 1m
Solar Cable 2E XT60 to MC4 1m
Solar Cable 2E XT60 to MC4 1m

Solar Cable 2E XT60 to MC4 1m

Product code: 2E-ASP-XT60-MC4-1

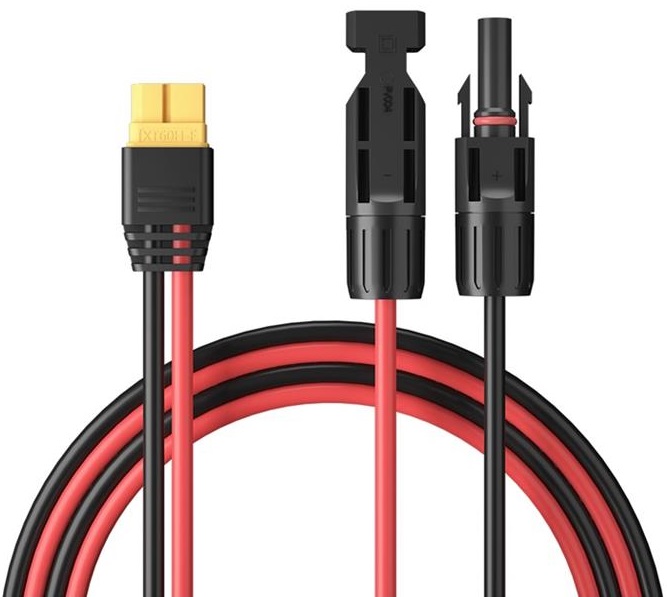

The 2E XT60-MC4 cable is an efficient component to easily and quickly connect a portable solar or any other PV panel to a charging station, including the 2E SNAGHA, or compatible chargers with an XT60 jack.

  • MC4 and XT60 jacks
  • Polarity is marked by color
  • Max. voltage is 1,000 V
  • Max. current is 30 A
  • Cable cross-section 4 mm²
  • Compliance with CE62930, IEC131, H1Z2Z2-K standards
  • Tinned copper contacts
  • Length is 1 m
  • Suitable for use in adverse environmental conditions
528 uah.*
Фото з високою роздільною здатністю
Basic:
Type Solar panel cable
Connector type МС4 / XT60
Cable length 1 m
Voltage 1000 W макс.
Maximum operating current 30 A
Cable cutting 4 mm²
Cable standard CE62930 / IEC131 / H1Z2Z2-K
Operating temperature range -40 ...- +85 °С
Contact material tinned copper
Additionally polarity is marked with color

Features:

  • MC4 and XT60 jacks
  • Polarity is marked by color
  • Max. voltage is 1,000 V
  • Max. current is 30 A
  • Cable cross-section 4 mm²
  • Compliance with CE62930, IEC131, H1Z2Z2-K standards
  • Tinned copper contacts
  • Length is 1 m
  • Suitable for use in adverse environmental conditions

When using together with 2E MC4-2T1 or 2E MC4-3T1 splitter cables, it is possible to connect two or more solar panels to the charging station for faster charge recovery. In addition, the product is suitable for use even under adverse environmental conditions, the operating temperature range is from -40 °C to +85 °C. The maximum voltage is 1000 V and the current is 30 A. The model with tinned copper contacts is manufactured according to CE62930, IEC131, H1Z2Z2-K standards. The 1 m long cable has a cross-section of 4 mm², which ensures stable operation and durability.
