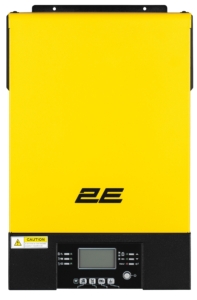

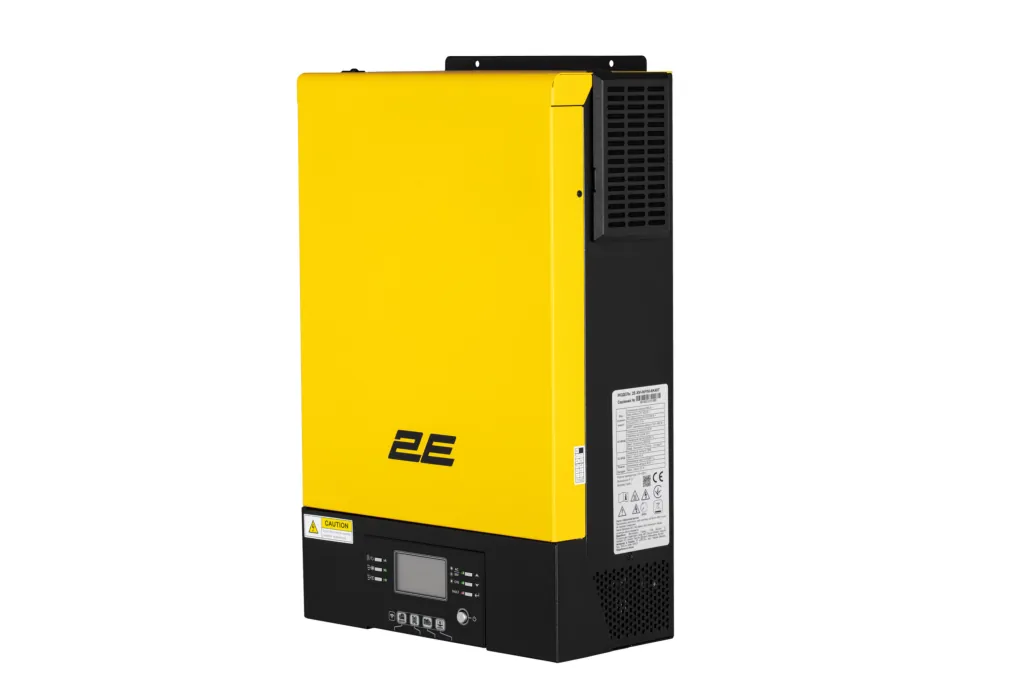

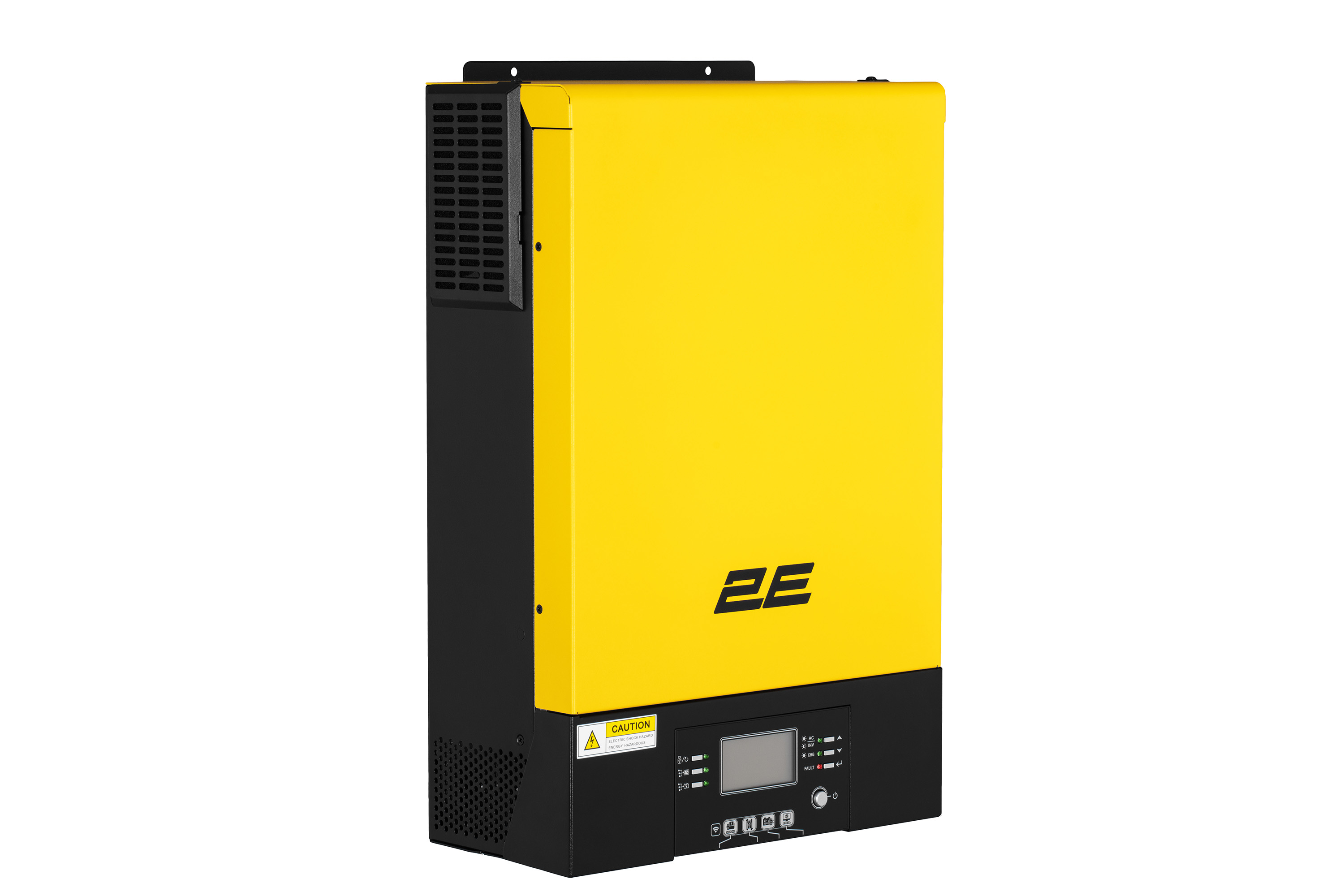

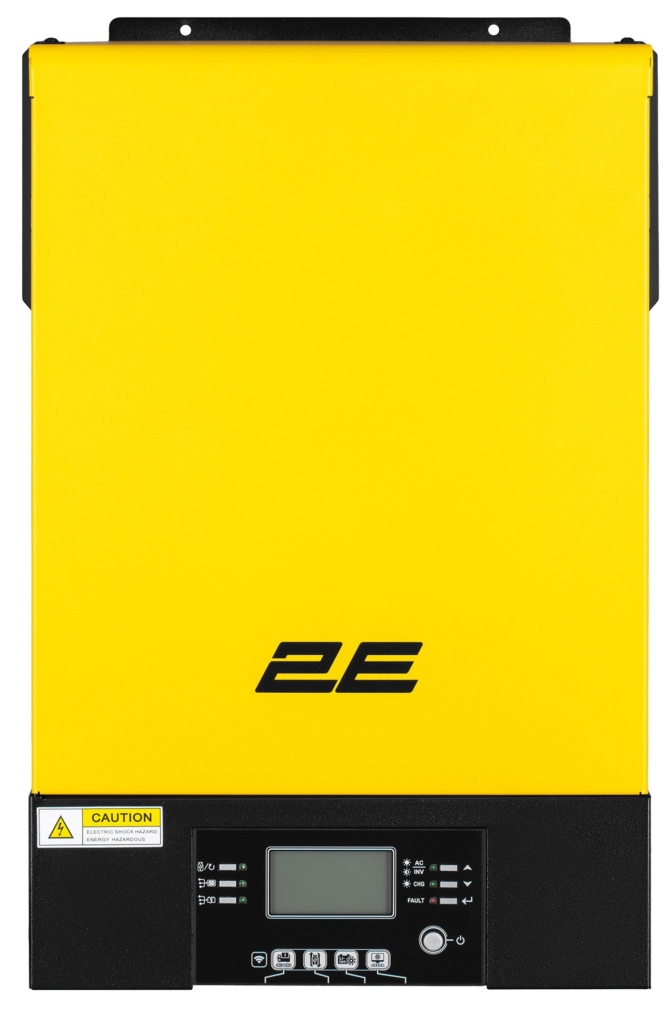

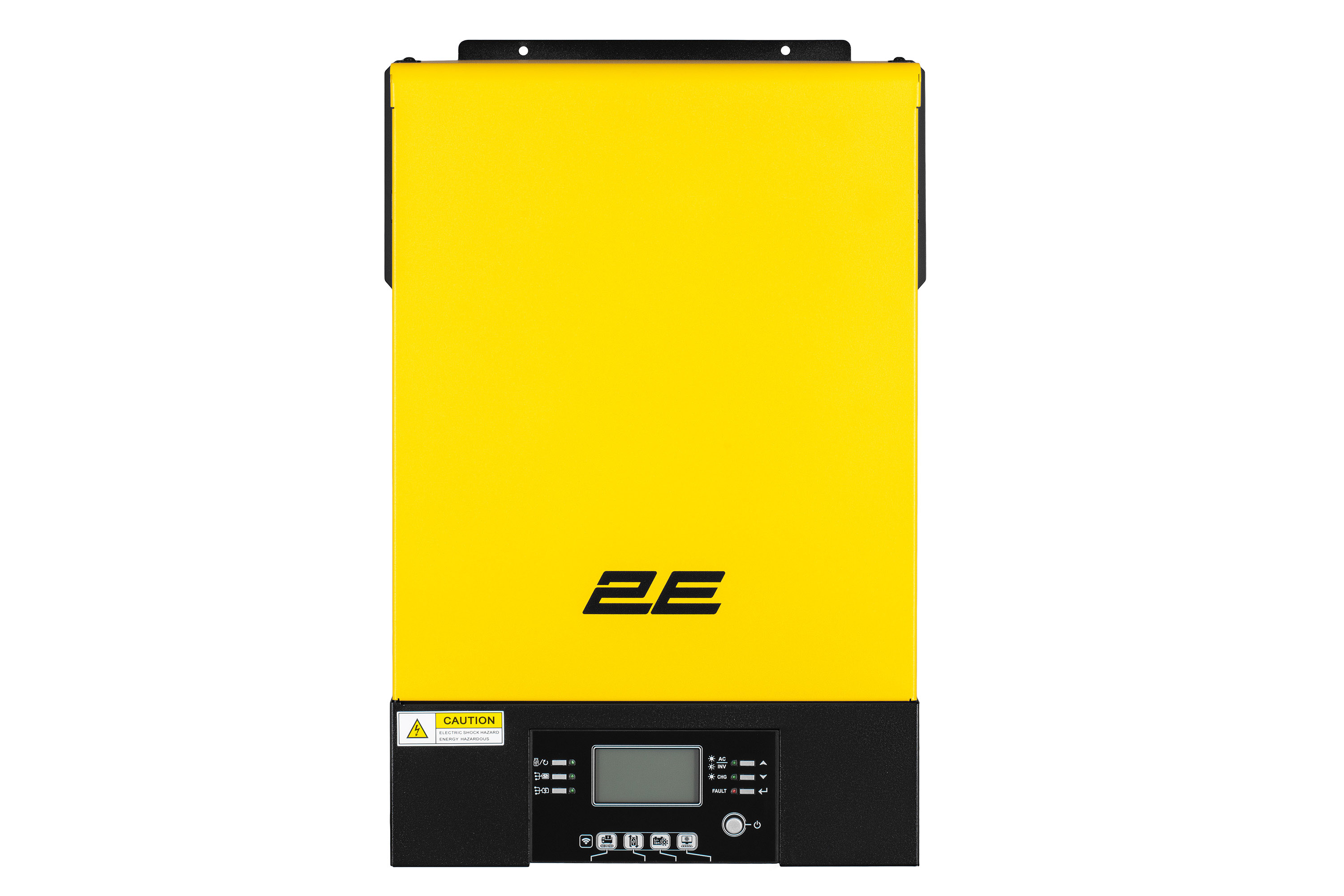

2E XM INFINI 6K-48T MPPT Solar Inverter

Product code: 2E-XM-INFINI-6K48T

The 2E XM INFINI inverter with feed-in and hybrid operation will not only help meet power supply needs, but also save money, because according to the feed-in tariff legislation, funds are paid for excess energy generated in the grid. In addition, more possibilities can be obtained by creating a system of nine such devices!

  • Power 6 kW/6000 VA
  • Ability to connect a 48 V battery
  • Built-in chargers (grid and solar)
  • Maintain grid power generation and hybrid operation
  • Pure sine wave
  • Possibility of remote control through applications
  • Integration into the "Smart Home" system
  • Maintaining a 1-3-phase configuration
  • Parallel operation for up to 9 devices
24 108 uah.*
Main:
A type Power Inverter з вбудованим мережним та MPPT ЗУ з підтримкою "Зеленого тарифу" та гібридного режиму роботи

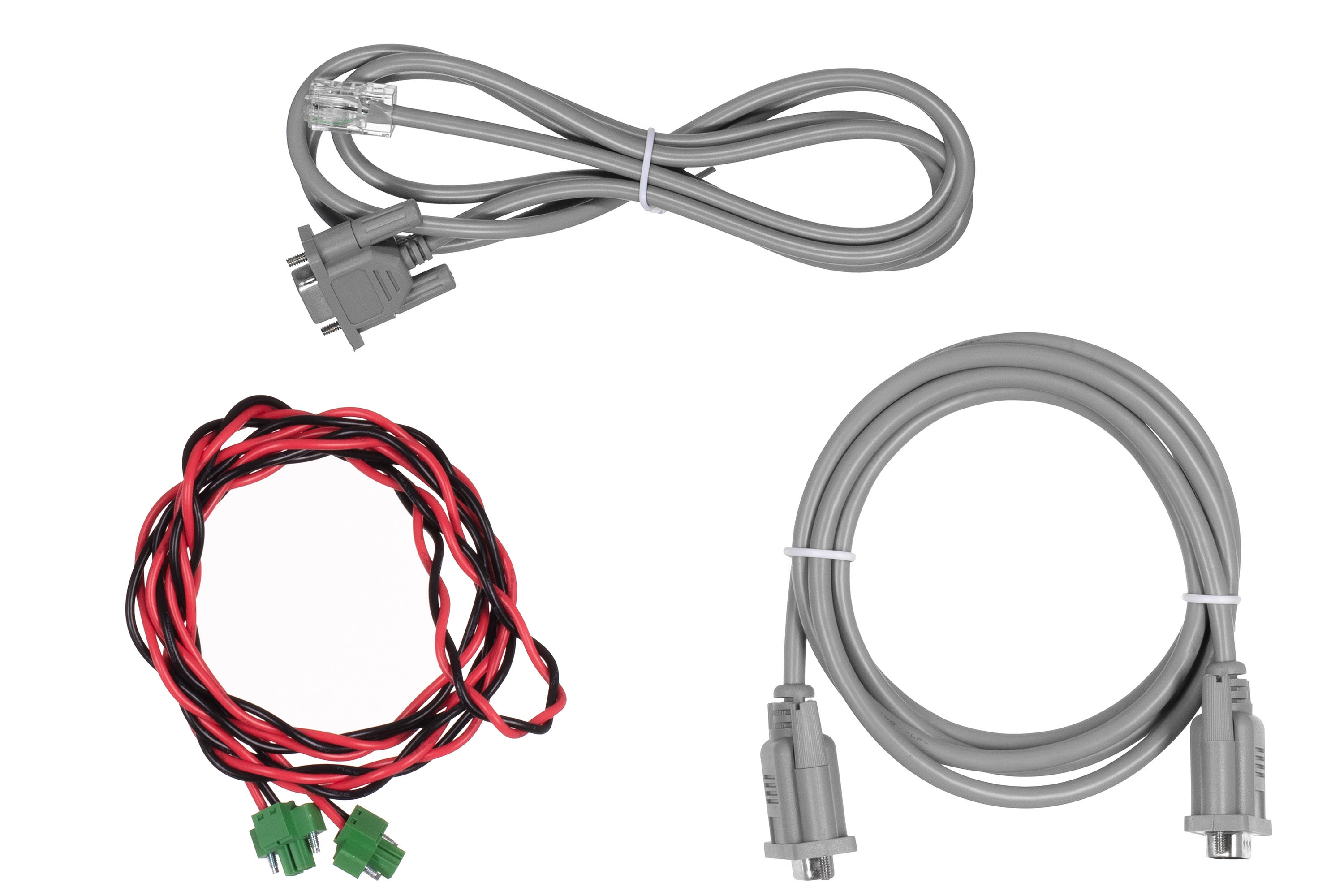

Connection RS-232 / RS 485 / USB / dry contact relay / Wi-Fi
Specifications:
Number of phases from 1 to 3
Battery External 48VDC
Power 6 kW
Input 170-280VAC, ~ 50 / 60Hz, Hardwired
Exit 208-240VAC ~ 50 / 60Hz (auto detection), pure sine wave, Hardwired
Overload capacity 5 seconds - 150% / 10 seconds - 110-150%
Maximum power of PE array 6500 W
MPPT window 120-430 (макс Voc - 500 VDC)
Max. current of charger 120 A (комбінований)
Additionally:
Parallel Operation up to 9 devices
Physical characteristics:
Colour yellow
Dimensions ( HxWxD ) 365x468x140
The weight 14 kg
  • Power 6 kW/6000 VA
  • Ability to connect a 48 V battery
  • Built-in chargers (grid and solar)
  • Maintain grid power generation and hybrid operation
  • Pure sine wave
  • Possibility of remote control through applications
  • Integration into the "Smart Home" system
  • Maintaining a 1-3-phase configuration
  • Parallel operation for up to 9 devices

For single and three phase configuration

The hybrid six -kilowatt inverter has a mains and MPPT charge controller for connection to photovoltaic arrays with a maximum power of 6500 W (Isc 27 A). MPPT range is 120-430 V (DC), max. Voc – 500 V (DC). Also, if necessary, you can connect an external battery 48 V with a maximum charger current of 120 A (combined). In addition: XM INFINI supports single and three-phase configuration. It is possible to use XM INFINI to create a system of nine devices for parallel operation.

Maintaining power generation to the grid

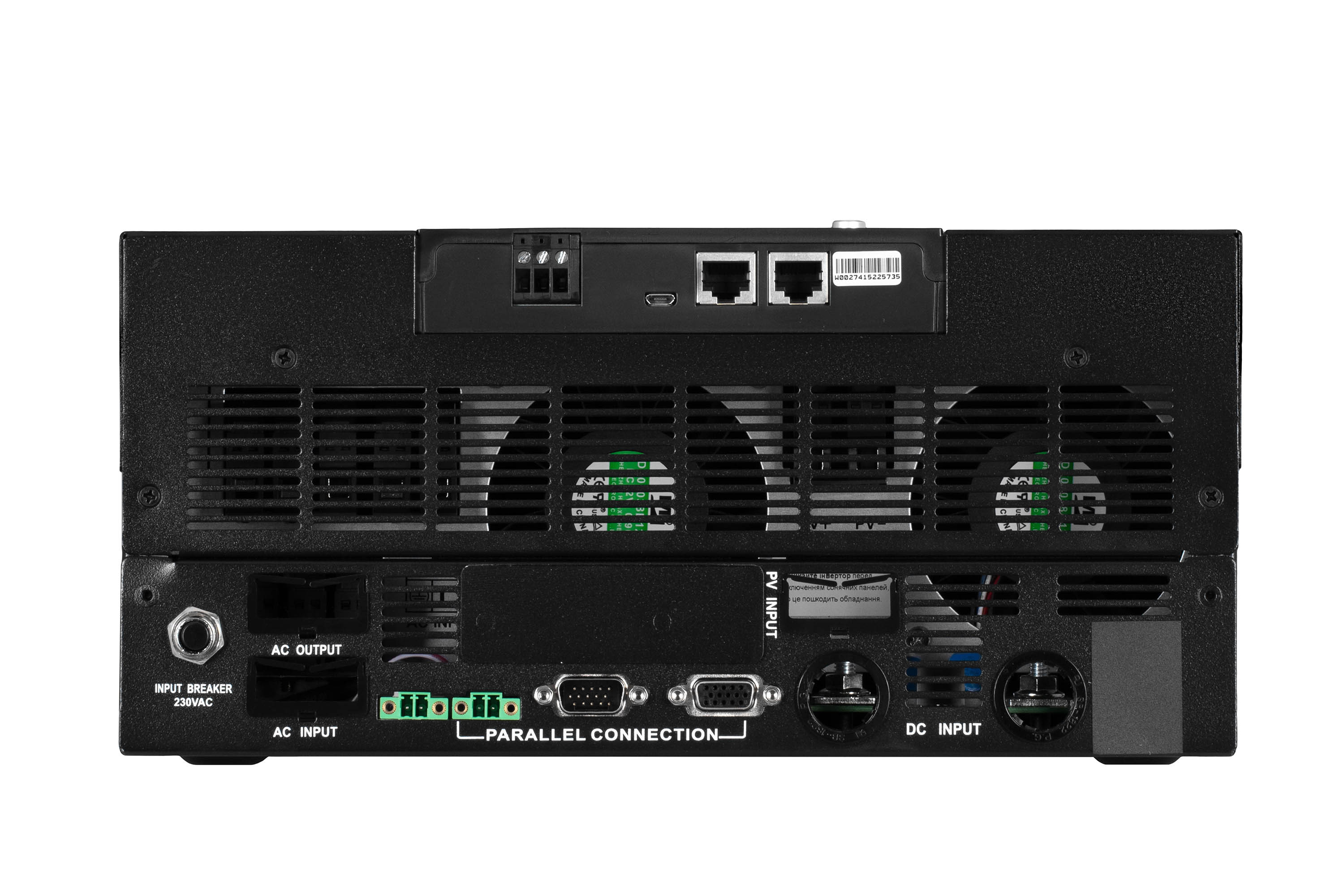

The model is rich in interfaces. In addition to the usual USB, the inverter is equipped with RS-232 and RS-485 for connecting a PC or various controllers, including elements of the Smart Home system. Thanks to the Wi – Fi adapter, remote control of the inverter is available, and the Dry-contact technology allows you to set certain conditions (scenario) for automatically turning on the device. But the main feature of the XM INFINI inverter is the hybrid mode of operation, therefore, the maintenance of the "green tariff" – a mechanism in which the state is obliged to buy from the owners of solar power plants the excess energy produced 4-5 times more expensive than consumption tariffs.
