Amplifier 2E MAVKA II GREEN N-Type

Product code: 2E-AAA-MG2-3B20

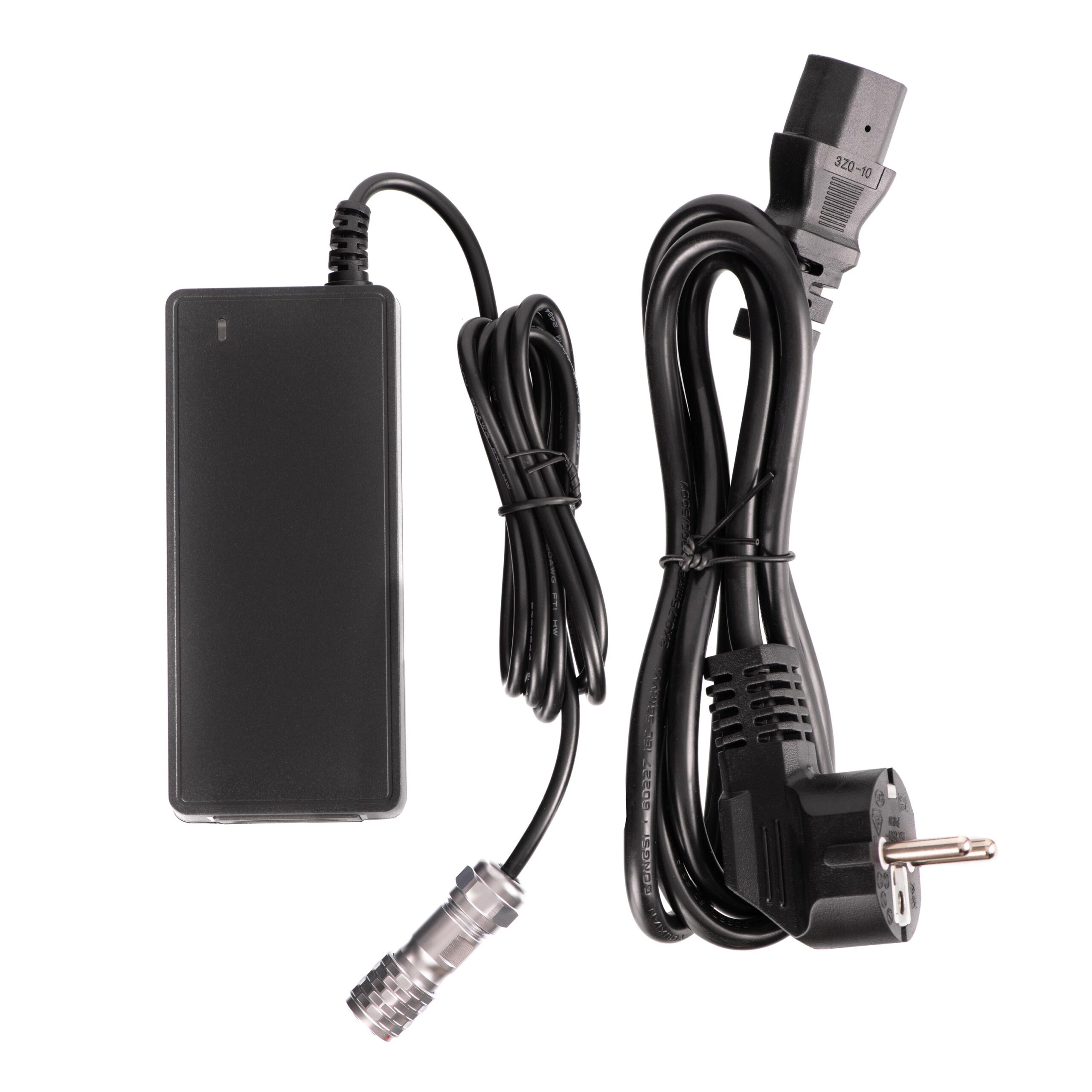

2E MAVKA II directional three-band antenna ensures high performance, extended flight range, stable signal, and convenient autonomous use. Its total output power is 20 W, enabled by low-noise high-quality amplifiers, while the built-in 10,000 mAh battery provides long operating time without external power. Additionally, an external charging unit allows the antenna to be powered by a third-party battery with minimal modification.

Output power: 43 dBm (20 W)
Operating frequency bands: 2,400–2,500 MHz, 5,150–5,350 MHz, 5,725–5,850 MHz
Amplification: two three-band amplifiers used for two ports; each supports TX/RX mode

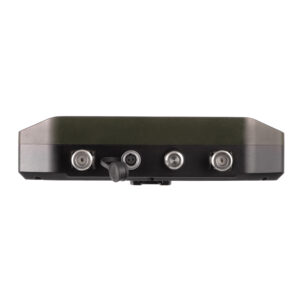

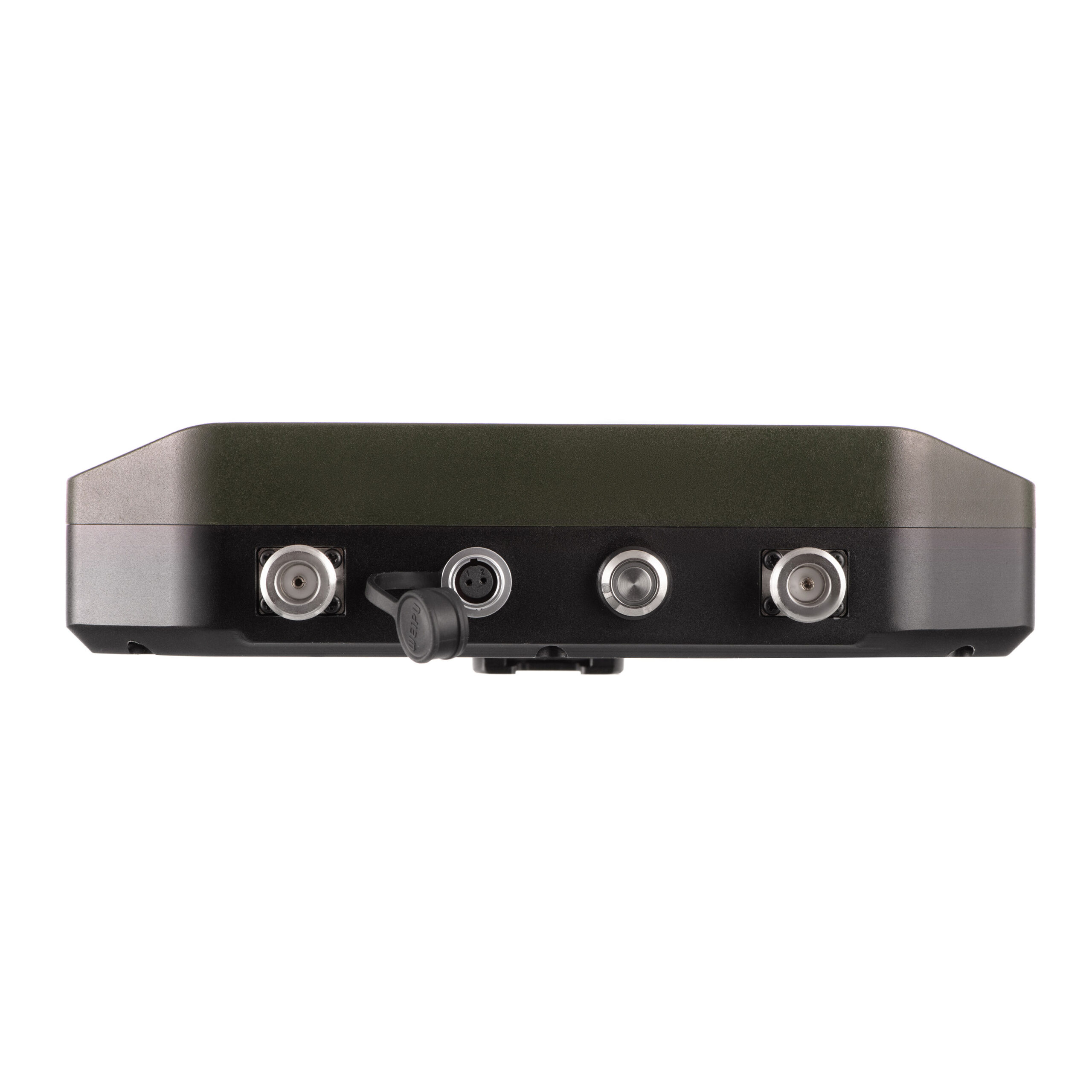

N-type connector – for external cables up to 35 m with no compromise in amplification power (when using high-quality coaxial cable with minimal attenuation)

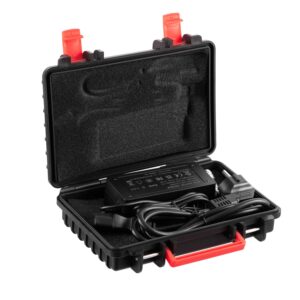

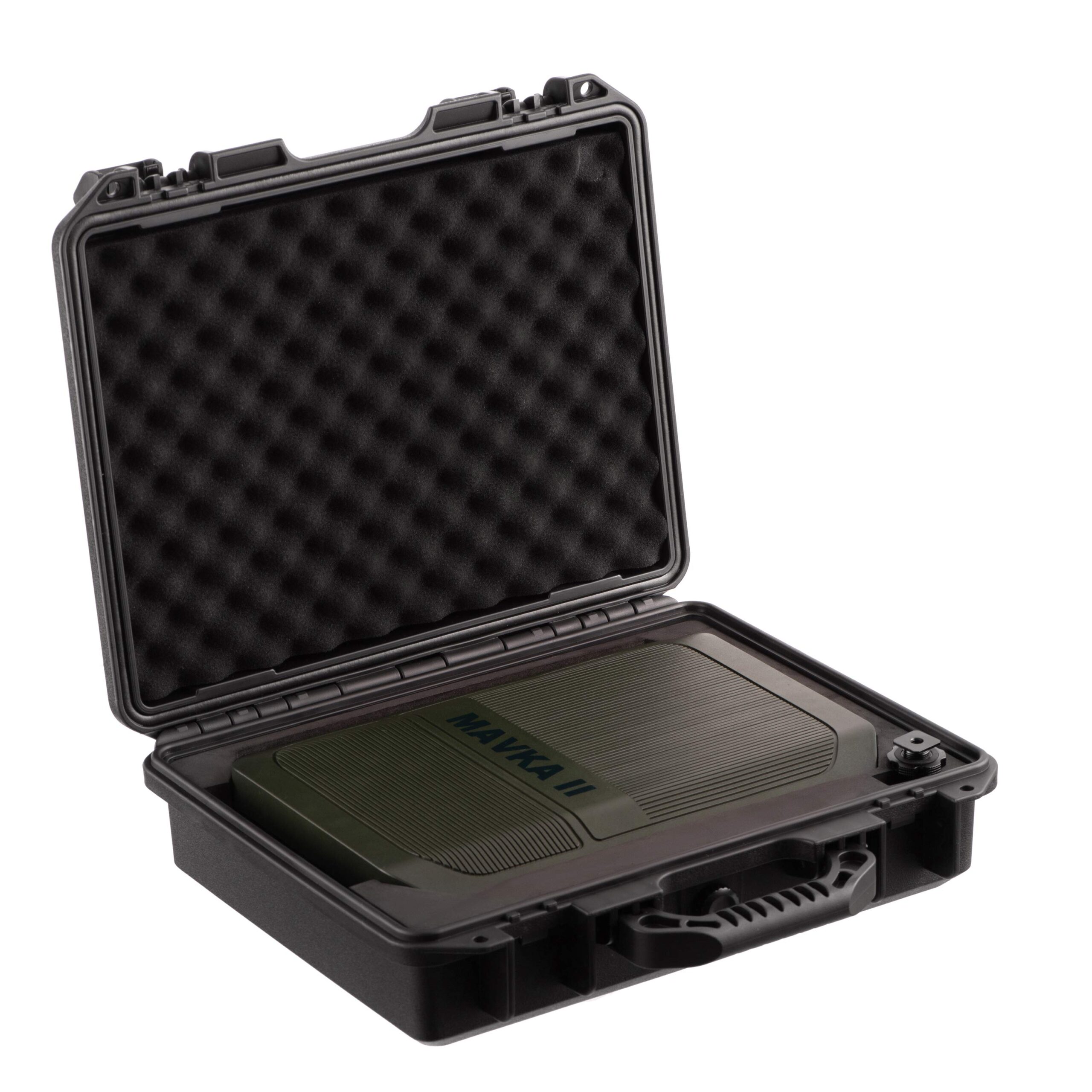

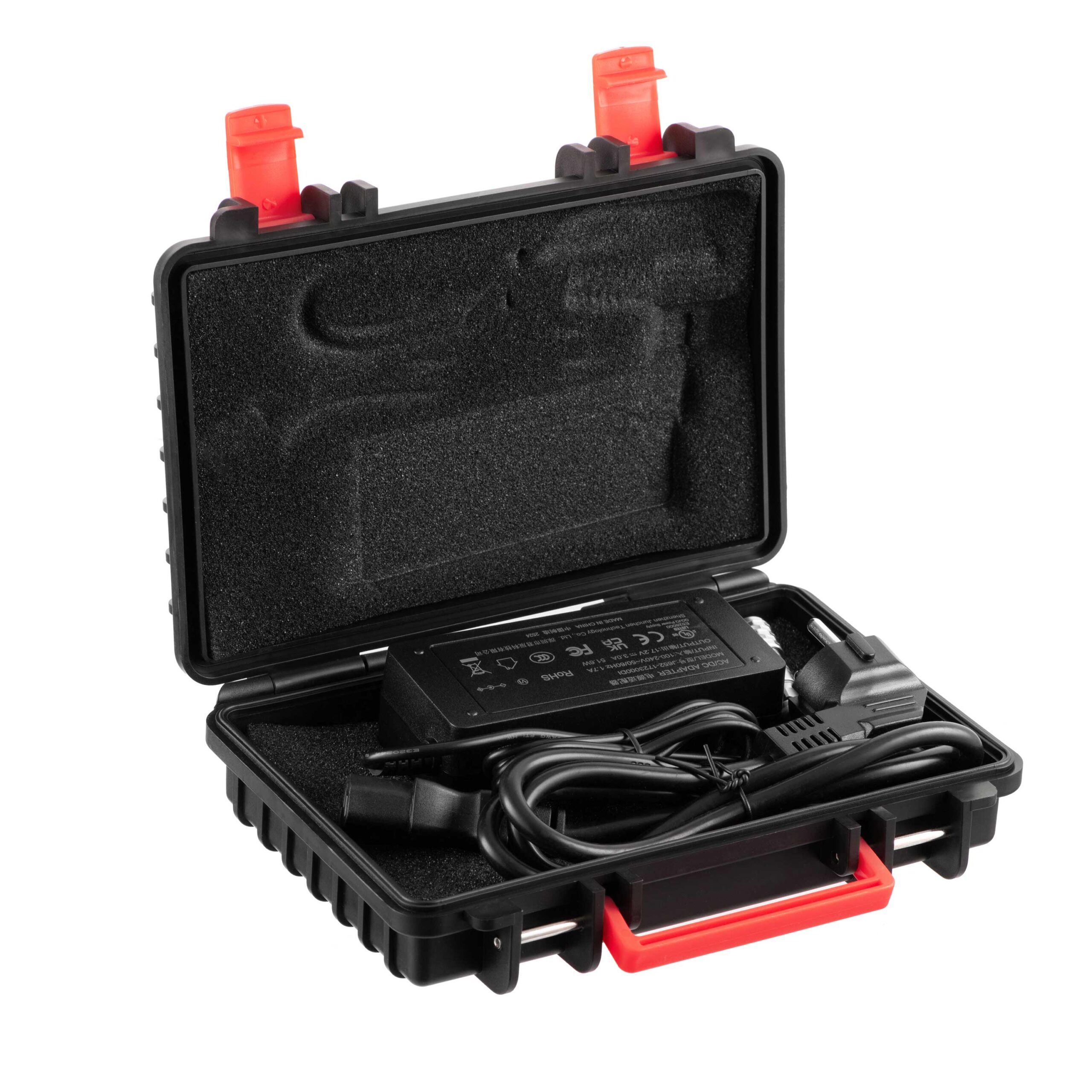

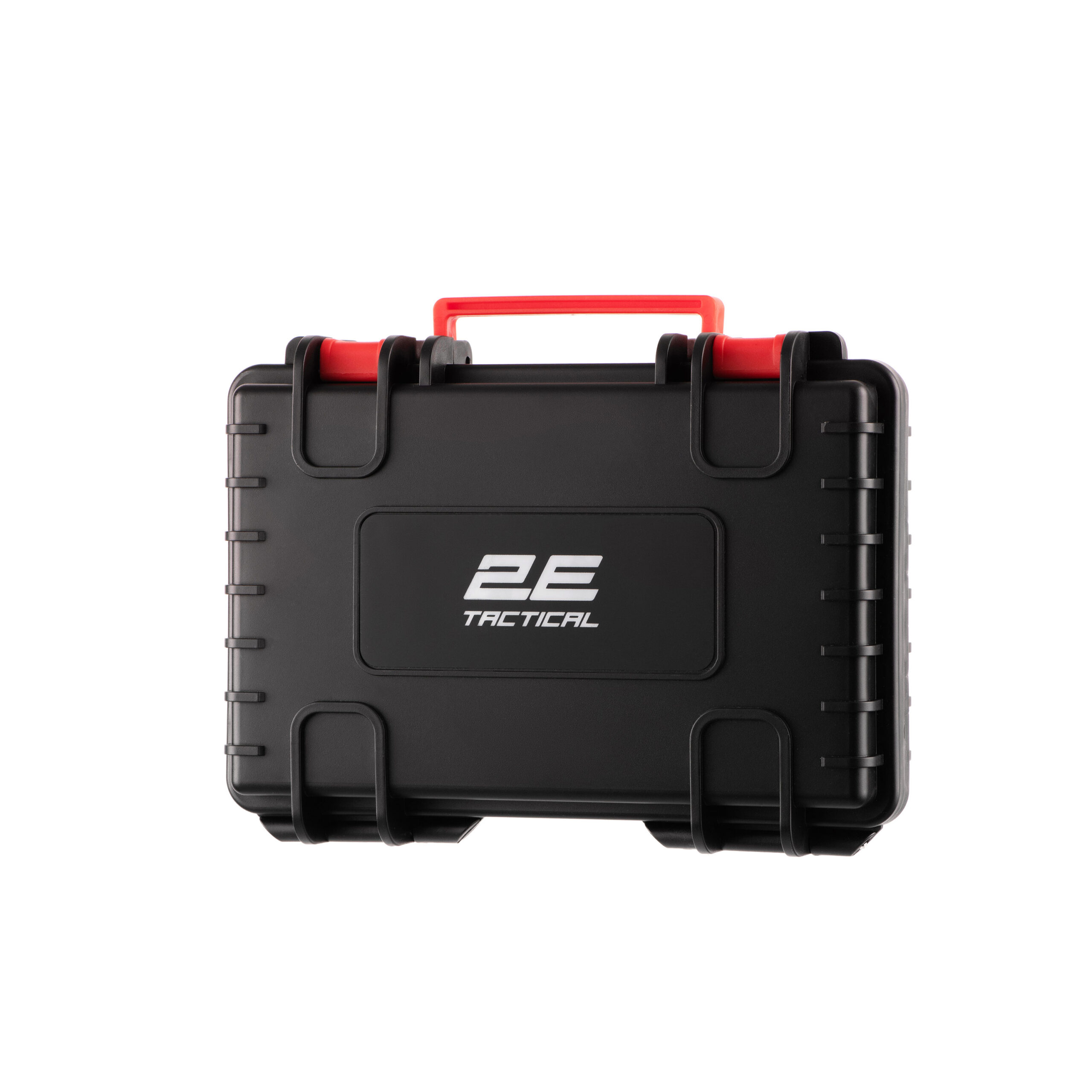

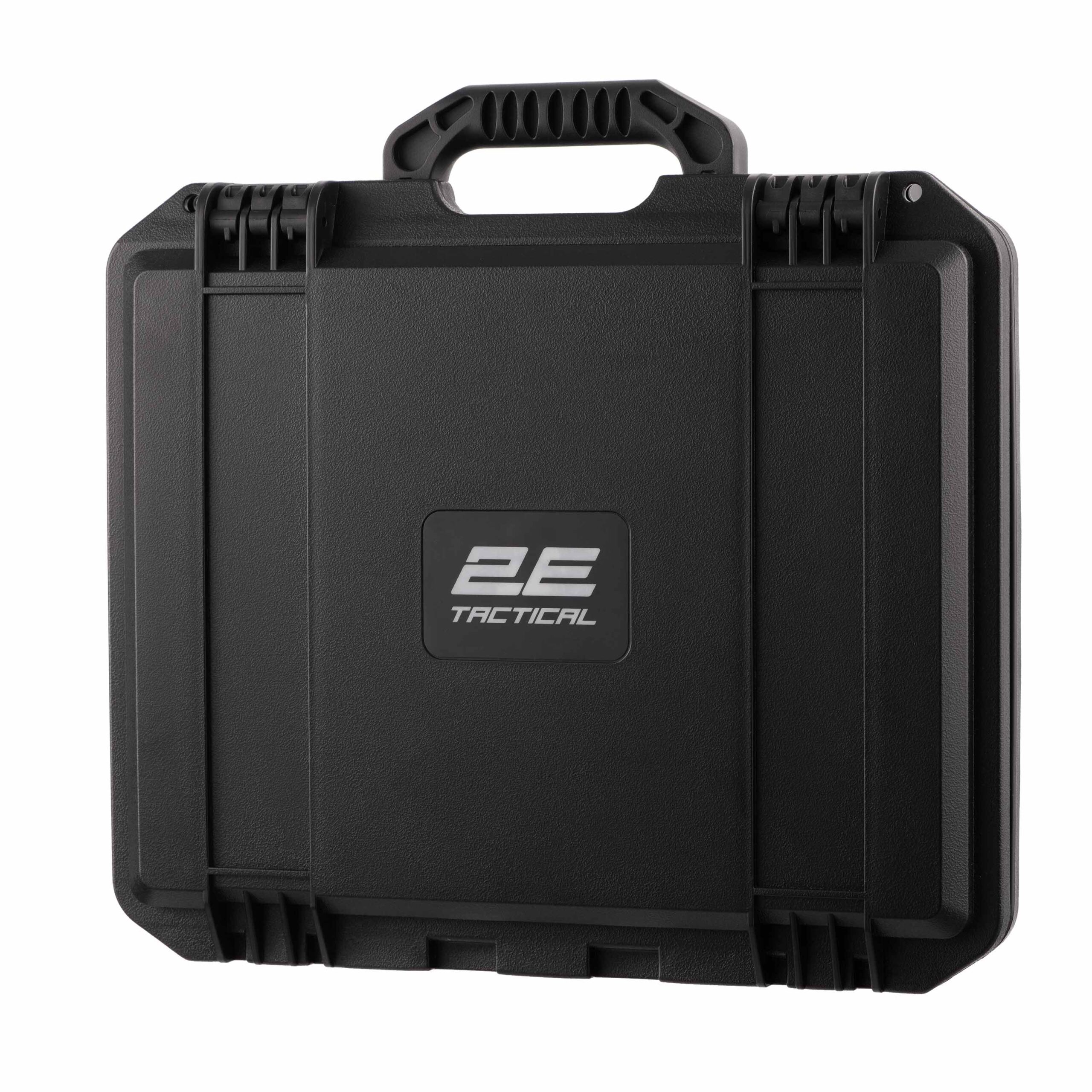

Durable protective case included – for safe transportation and storage of the antenna

59 999 uah.*

High-resolution photo

Main:

Type	The antenna is active
Frequency range	2400-2500 МГц / 5150-5850 МГц / 5725–5850 МГц
Maximum output power	43 дБм (20 Вт)
Antenna gain	15–18 дБ
Battery capacity	1000 mAh 7.4В / 5000мАг@ 14.8В
Reception gain	10–12 дБ
Transmission gain	20 дБ
Trigger input power	3 - 23 дБм
EVM	3%@33dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz
Noise figure	<2,5 дБ
TX/RX switching delay	<1 мс
Charging voltage	16.8В/3A
Temperature range of use	-40-70 °C
Storage temperature range	-40-70 °C

Physical:

Features	сенсорний дисплей / зовнішній адаптер / робота від зовнішнього АКБ

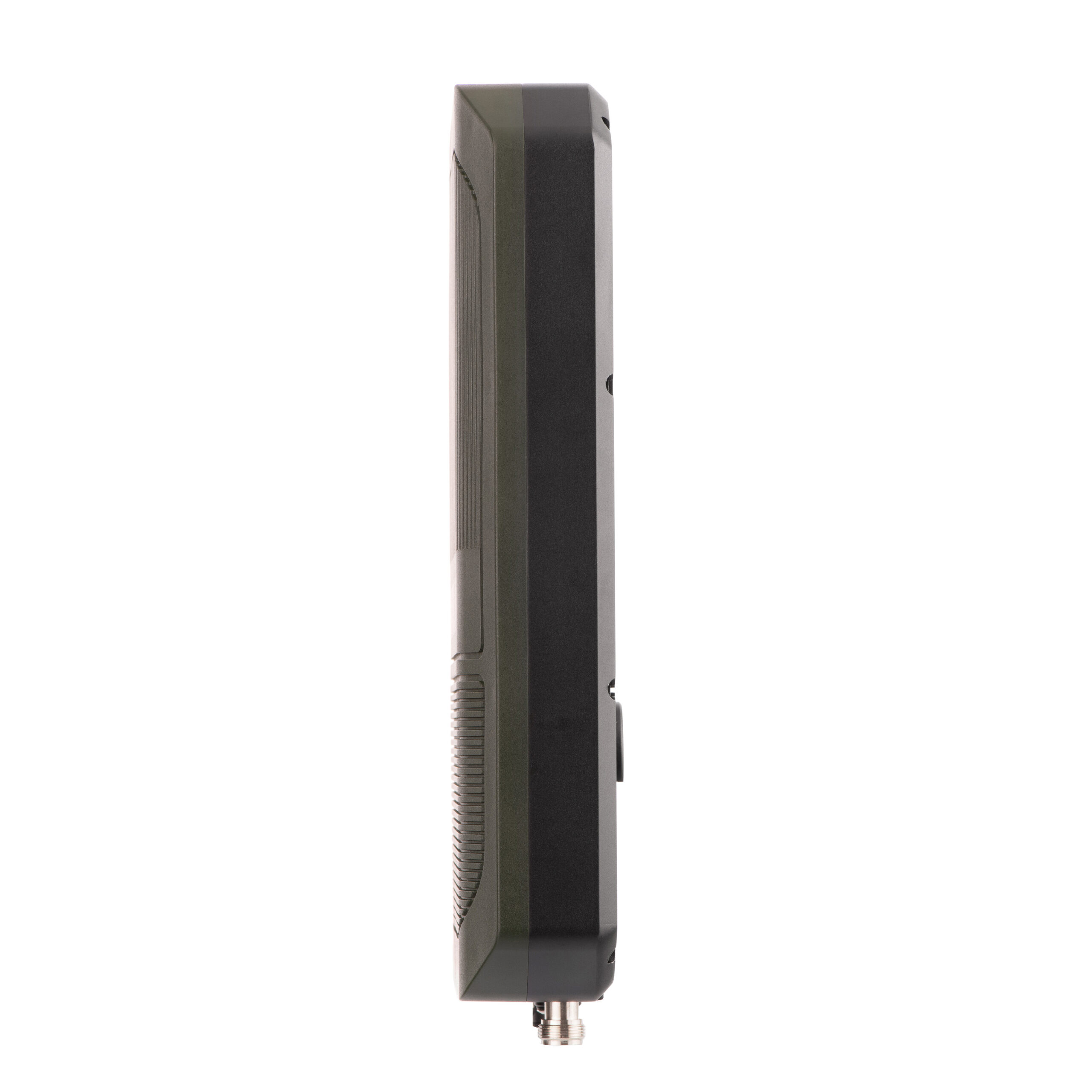

Dimensions	210×310×41 мм
Weight	2.1 kg

The design ensures compatibility with modern DJI models operating in three frequency bands, as well as with FPV systems on digital channels, Autel V2, and other popular UAVs.

Functional Features

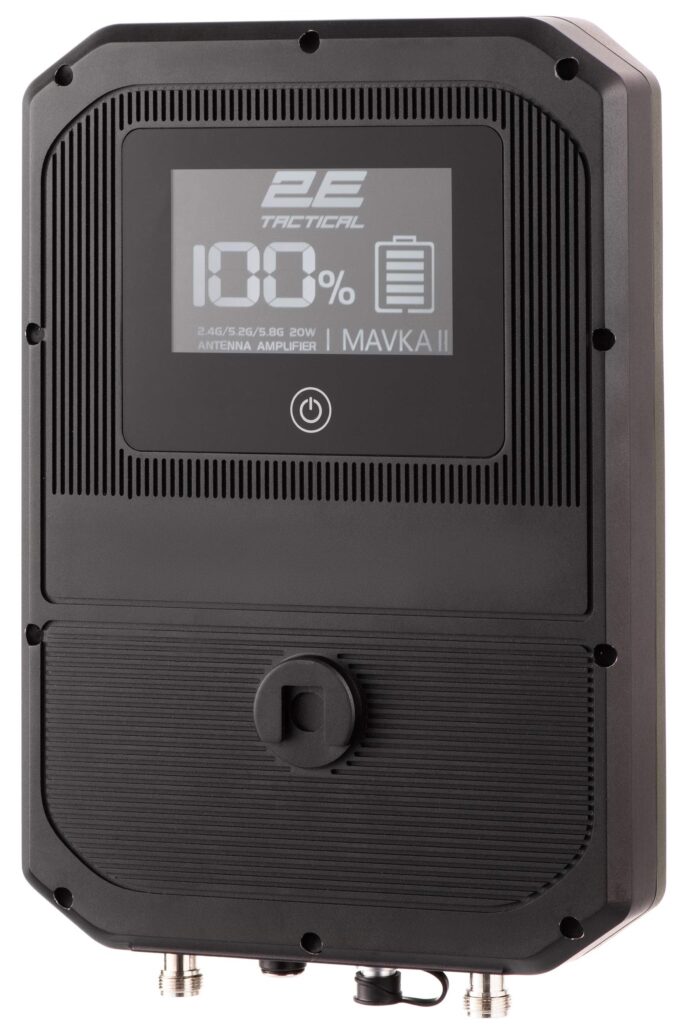

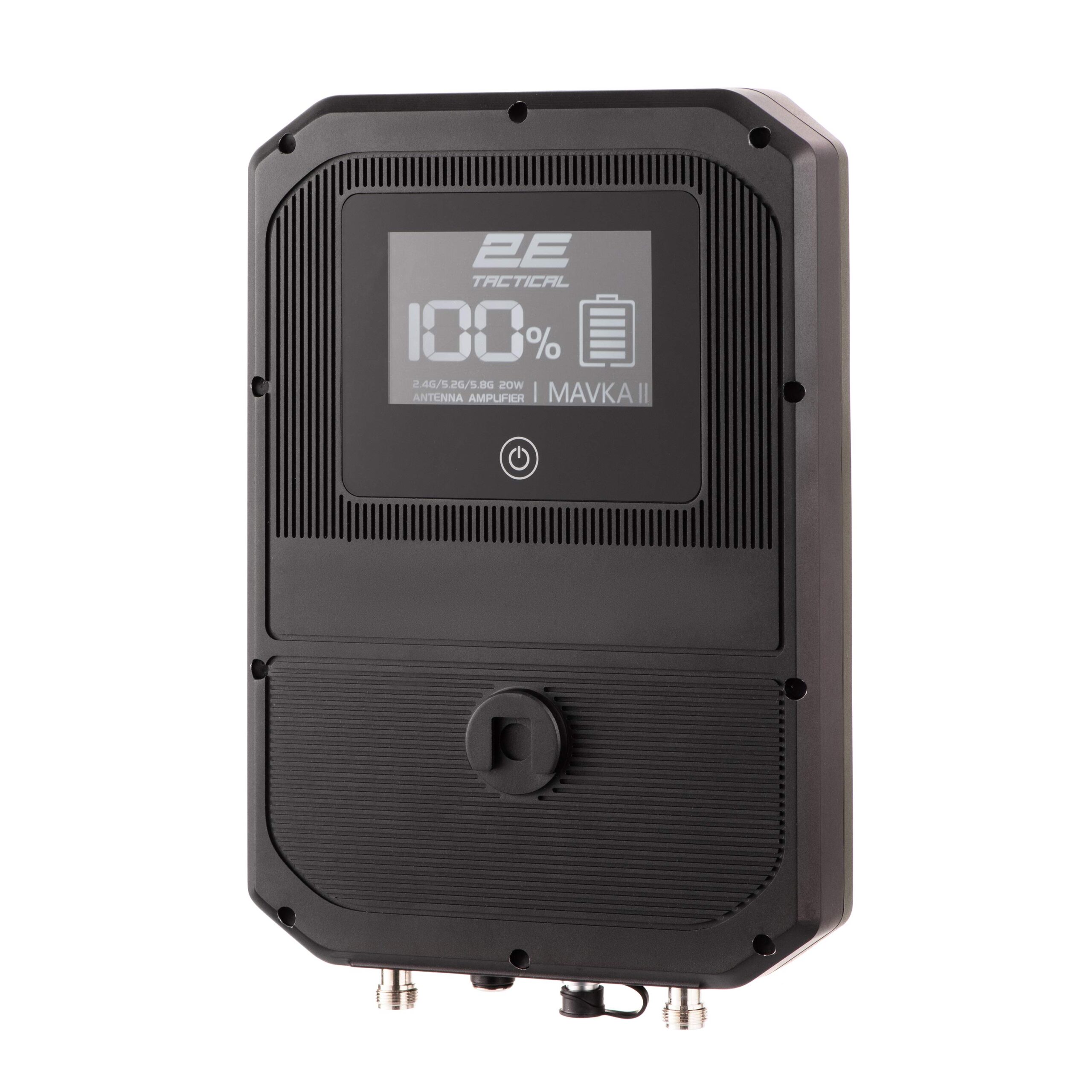

Touch control: Large informative display with a touch button – for quick antenna status and battery level check.
Tactile feedback: Built-in vibration signal confirms device startup or shutdown.

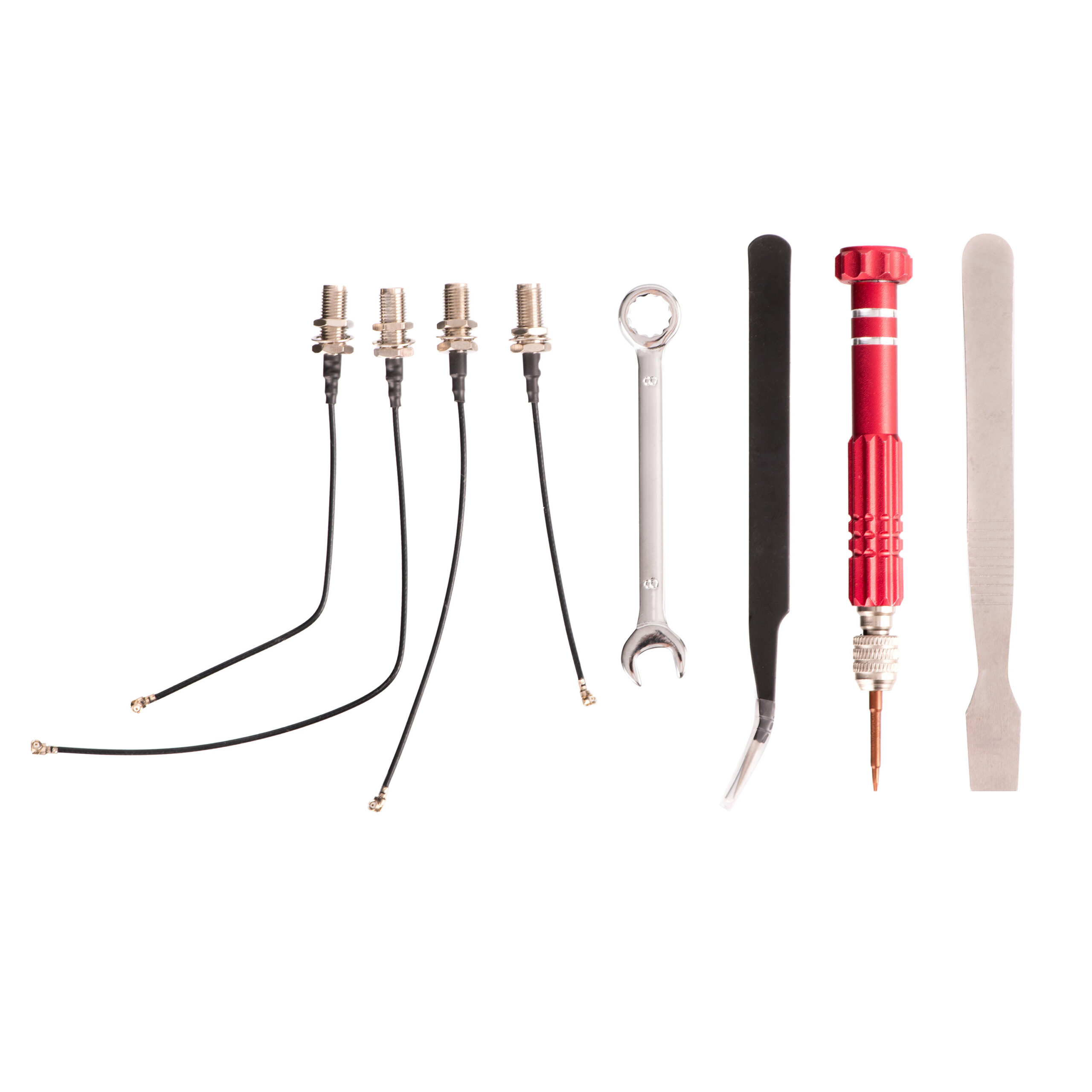

Broad compatibility with controllers modified for Alientech, Avengers, Four Hawks, Alisa, etc. (when using 2E cables and adapters).
