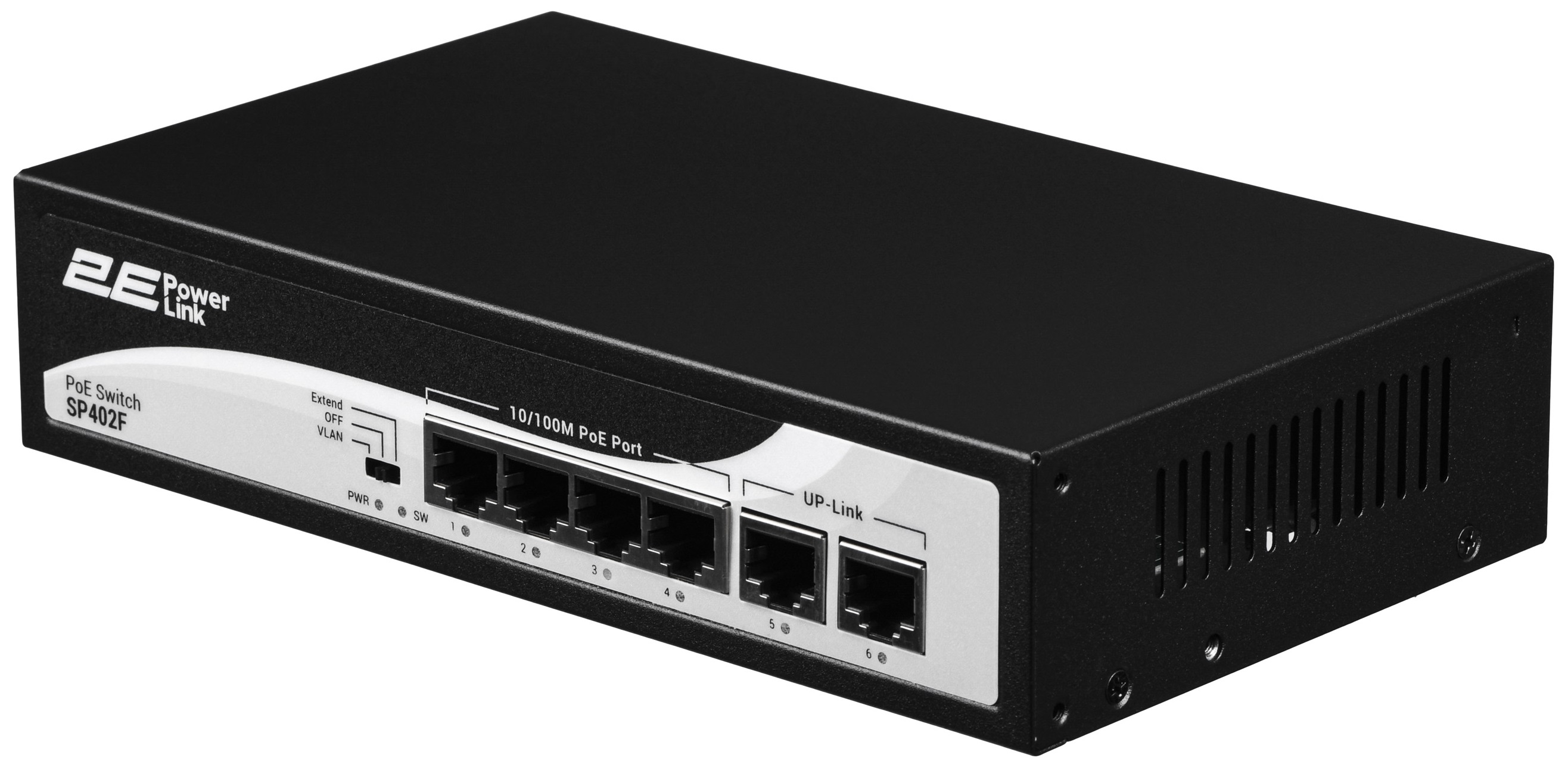

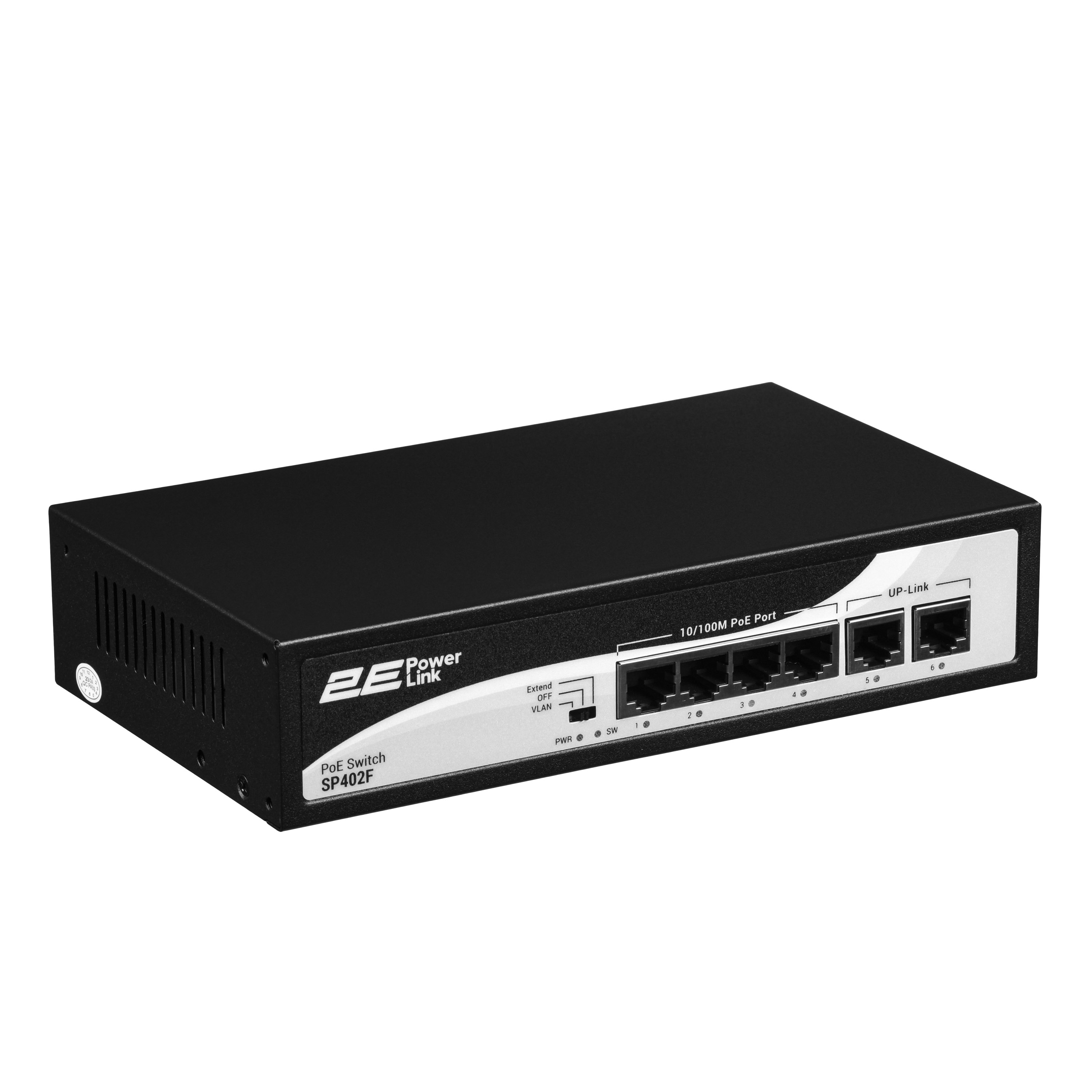

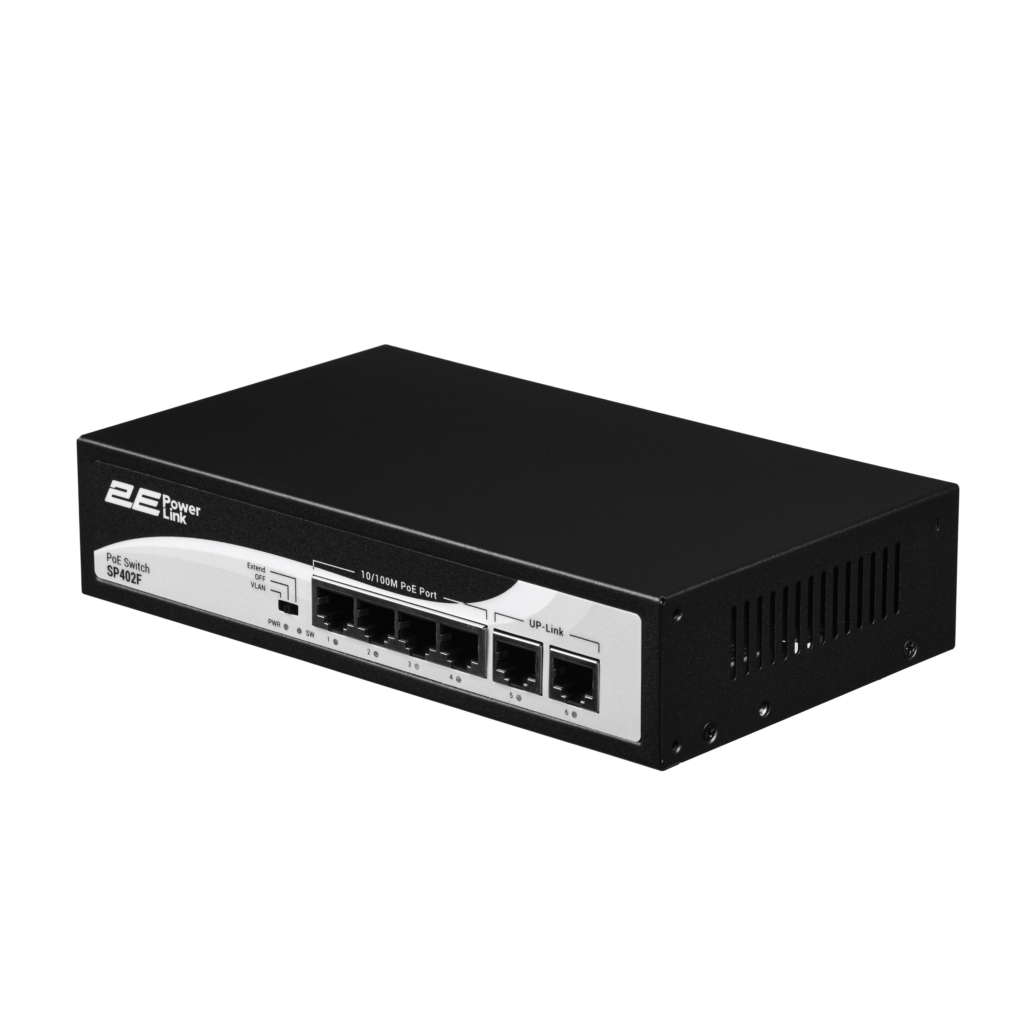

2E PowerLink Switch SP402F 6xFE (4xFE PoE+, 2xFE Uplink, 55W), unmanaged
The switchboards series 2E Powerlink 10/100Mbps or 10/100/1000M Power over Ethernet is based on high-quality network chips in the most stable POE chip. As well as provide support for 802.3af and 802.3at standards. This series of PoE switches, depending on the model, provides reliable speed connection to both Fast Ethernet and Gigabit Ethernet. The PoE controller can automatically detect and provide power to all IEEE 802.3af / at (PD) devices. However, Non-PoE devices are not able to receive power over PoE, but can transmit data. Each model of this series of PoE switchboards includes both ports that support PoE power, as well as 1-2 ports non-PoE ports for uplink, in order to file the necessary data flow to the most PoE devices connected to the switch.
| A type | Switch |

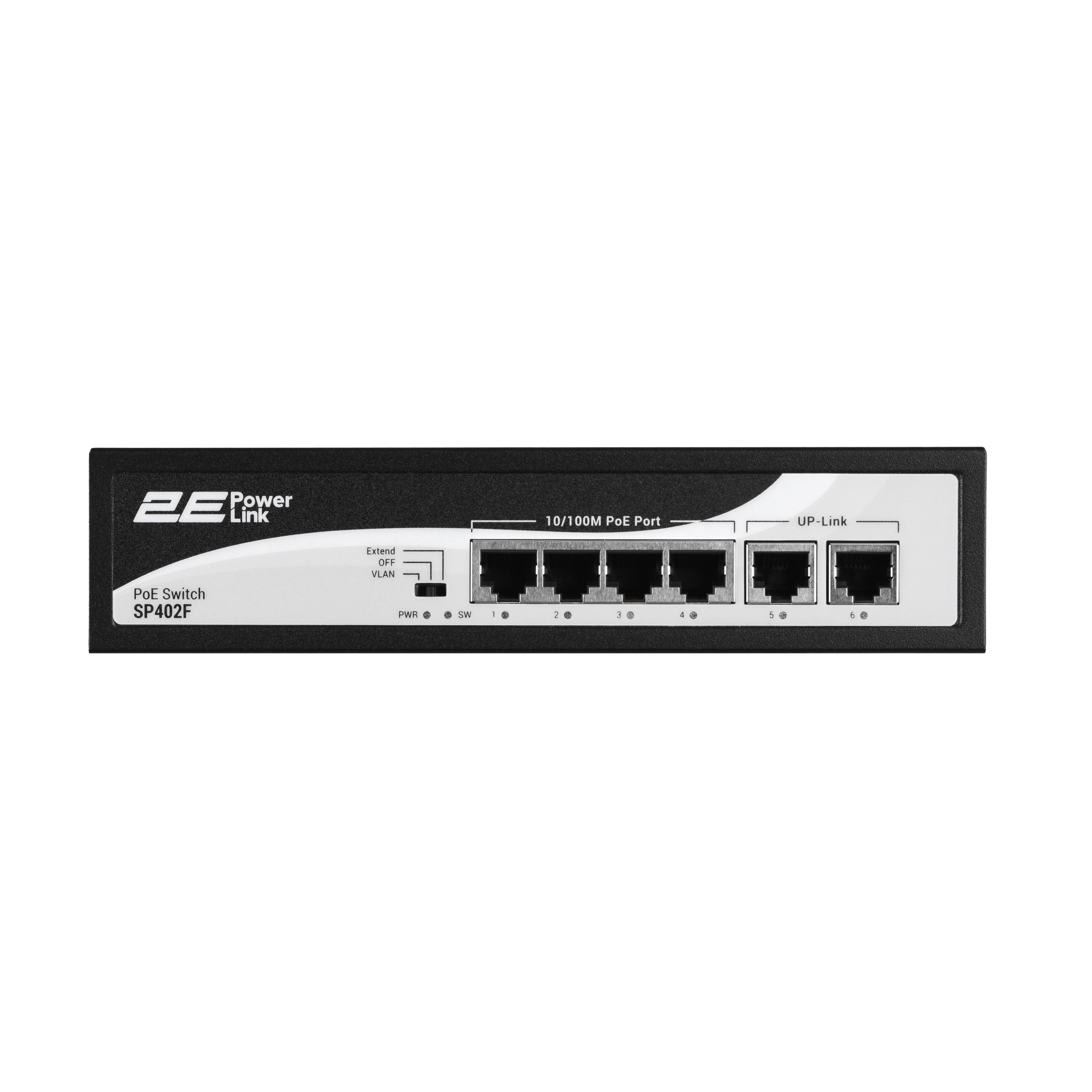

| Ports | 4x FE PoE 10/100 / 2xFE Uplink 10/100 |
| Switch Type | unmanaged |
| Number of ports | 6 |
| Transmission Method | Store-and-forward |
| Indicators | Power supply / Link/Activity / FDX |
| Mac address learning | automatic update |
| Support PoE | ✔️ |
| PoE power budget | 55 W |
| Standards and Protocols | IEEE 802.3 10BASE-T / IEEE 802.3u 100BASE-TX / IEEE 802.3x Flow Control / IEEE 802.3at Power over Ethernet / IEEE 802.3z 1000BASE-X / IEEE 802.3af / IEEE 802.3ab 1000BASE-T |
| Certificates | C-Tick / CE commercial / FCC Class A / VCCI Class A |
| Additional Features | Auto-MDI/MDIX polarity detection |

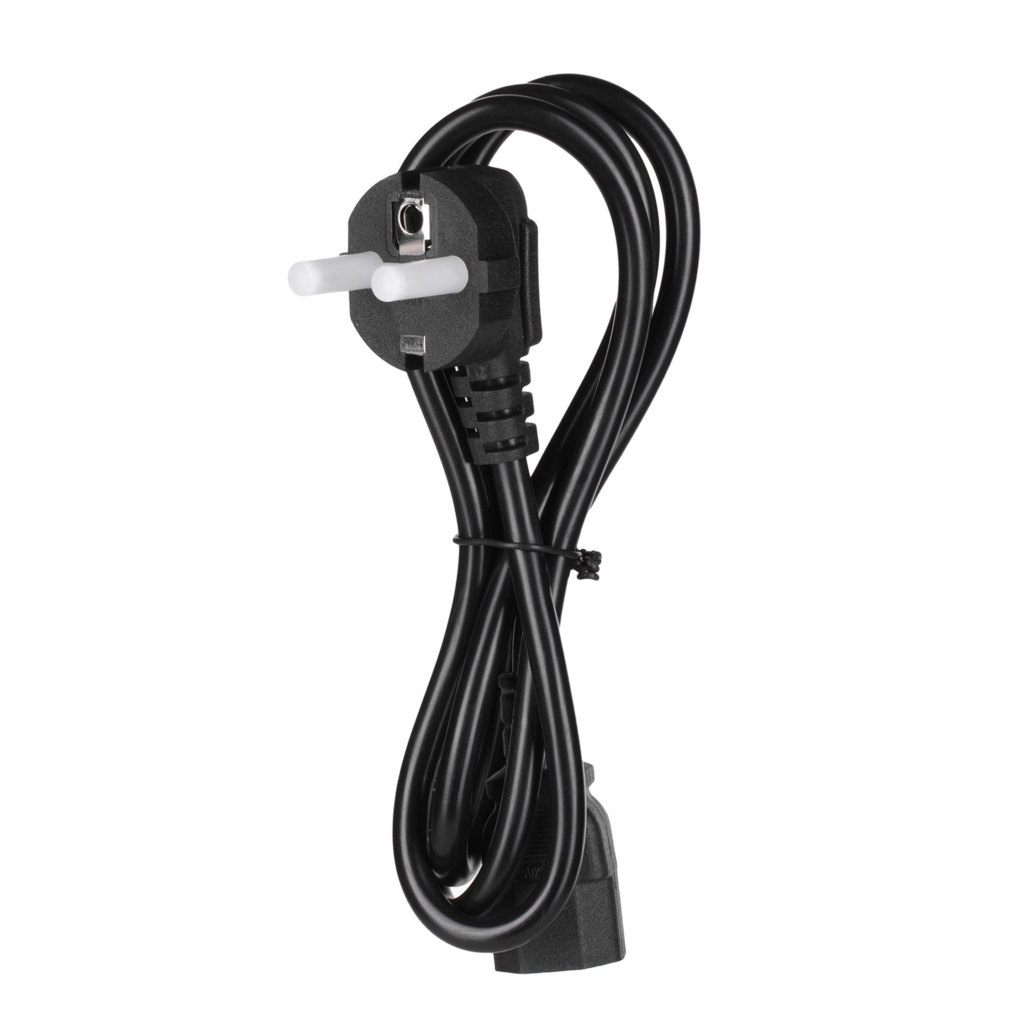

| Contents of delivery | Warranty / Power cord / User guide / Switch |
| Operating humidity | from 10% to 90% without condensation |
| Storage humidity | from 5% to 95% without condensation |
| Operating temperature | from 0˚ to 50˚C |
| Storage temperature | from -40 to 70 °C |
