2E PC case Alfa E130 without PSU, 2xUSB3.0, 1xUSB2.0, 1x80mm, VGA 320mm, ATX, black

Product code: 2E-E130

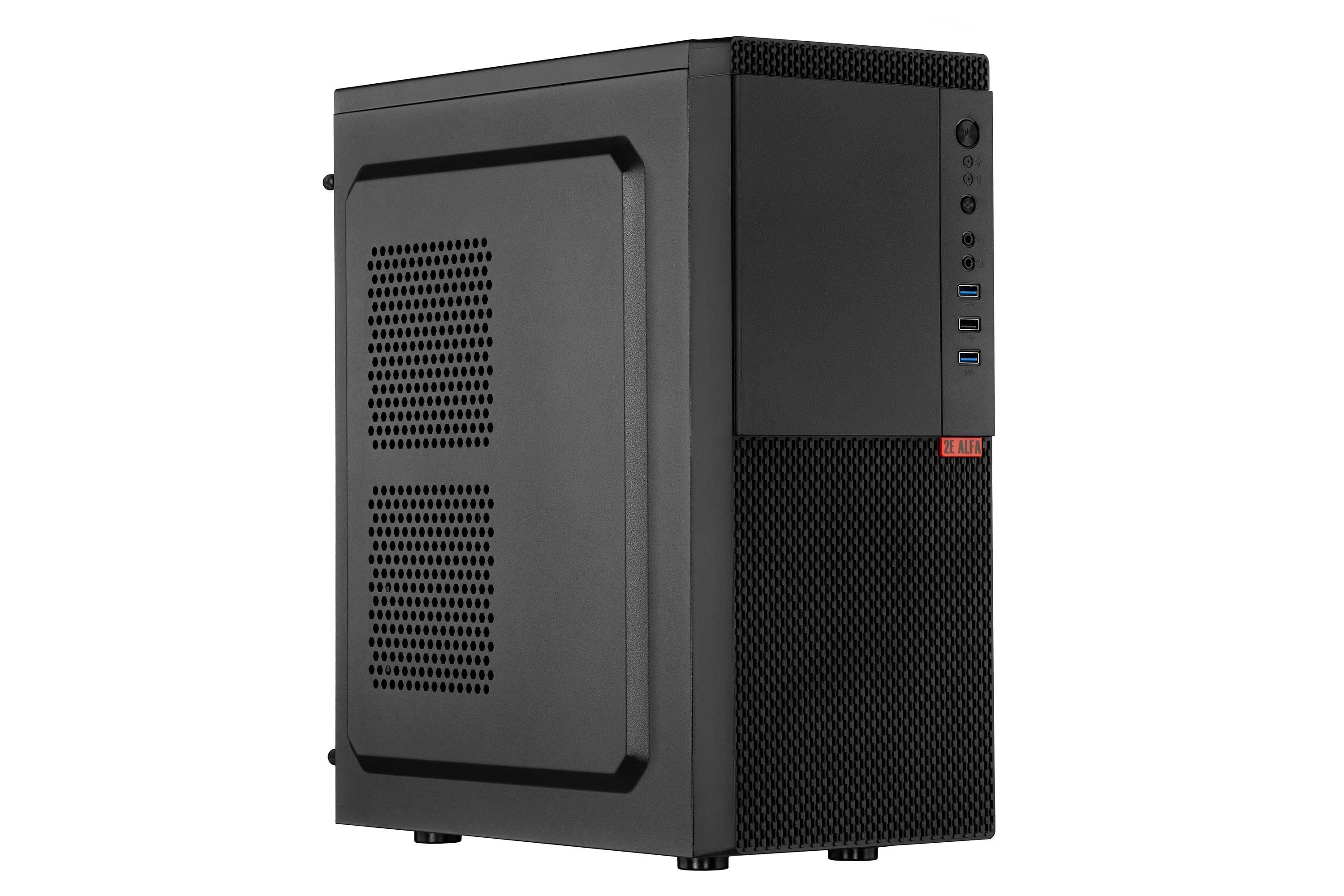

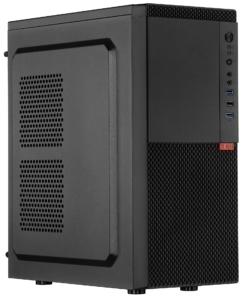

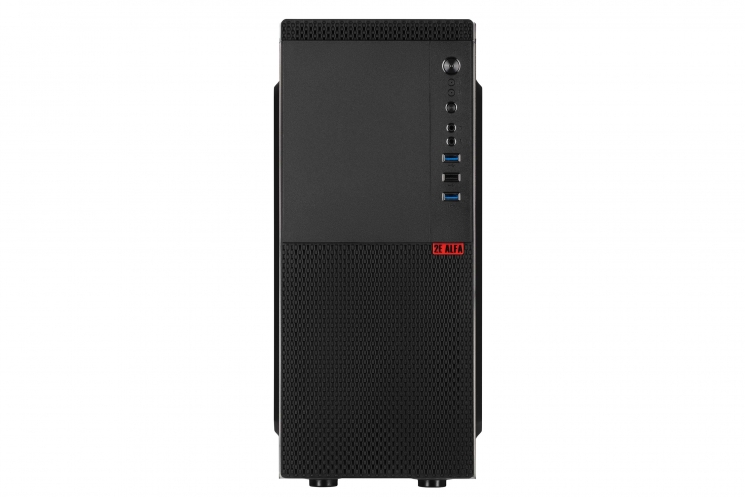

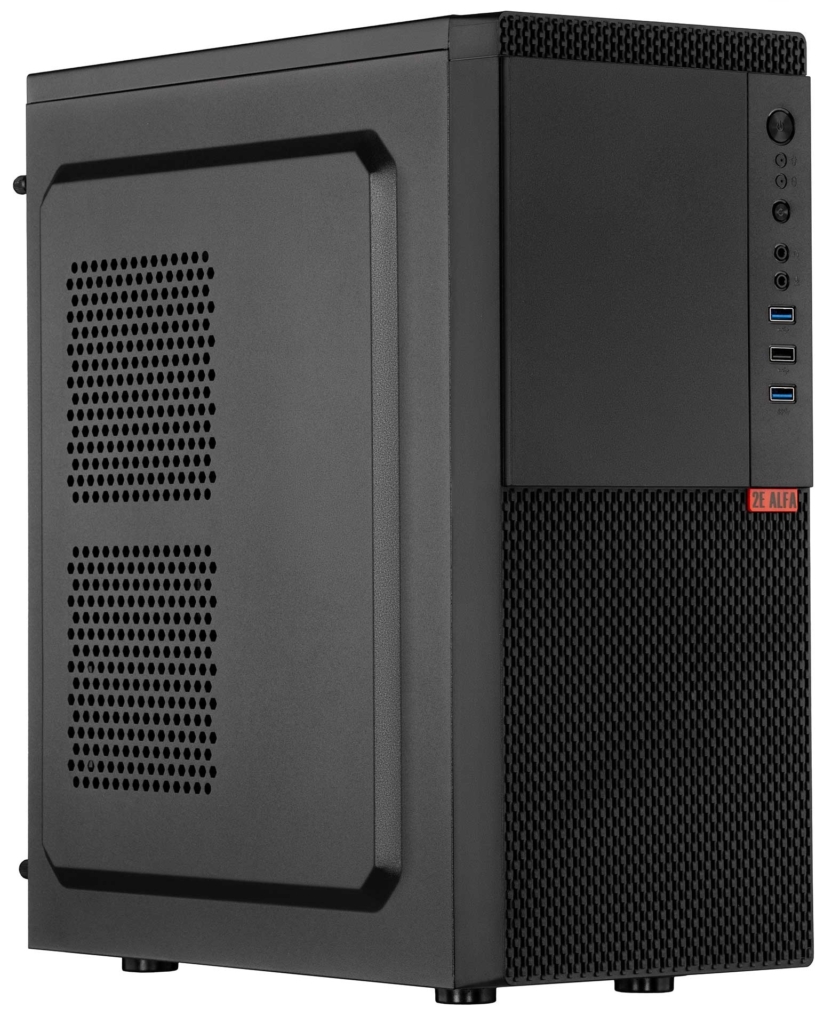

A PC case in an original stylish design. The front panel is combined with perforation. The Mid Tower format allows you to install ATX boards in addition to compact Micro ATX and Mini ITX motherboards. The case is made of 0.5mm steel and durable plastic.

1 049 uah.*
Main:
Category standard/office
Case type Mid Tower
Motherboard type mini-ITX / micro-ATX / ATC

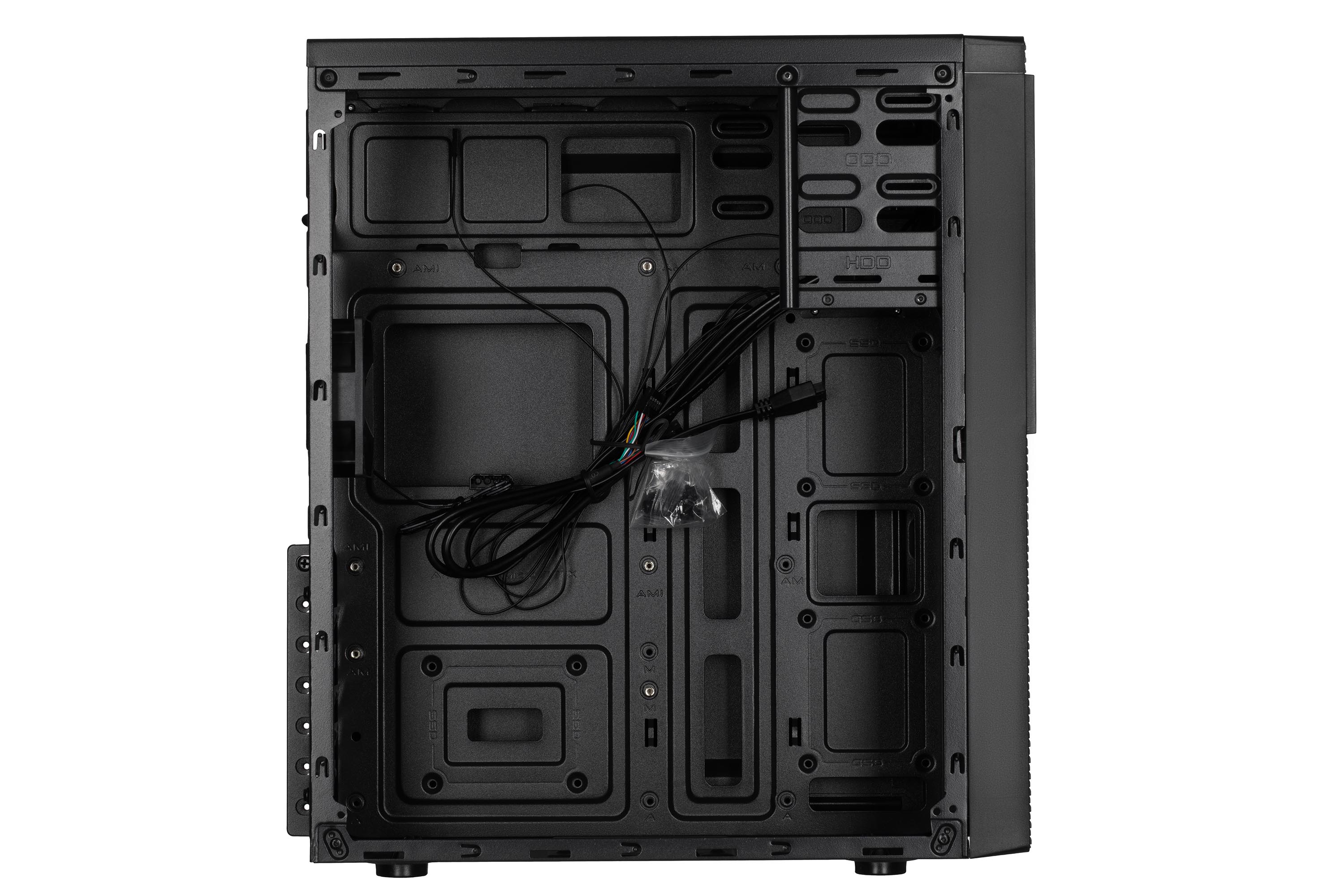

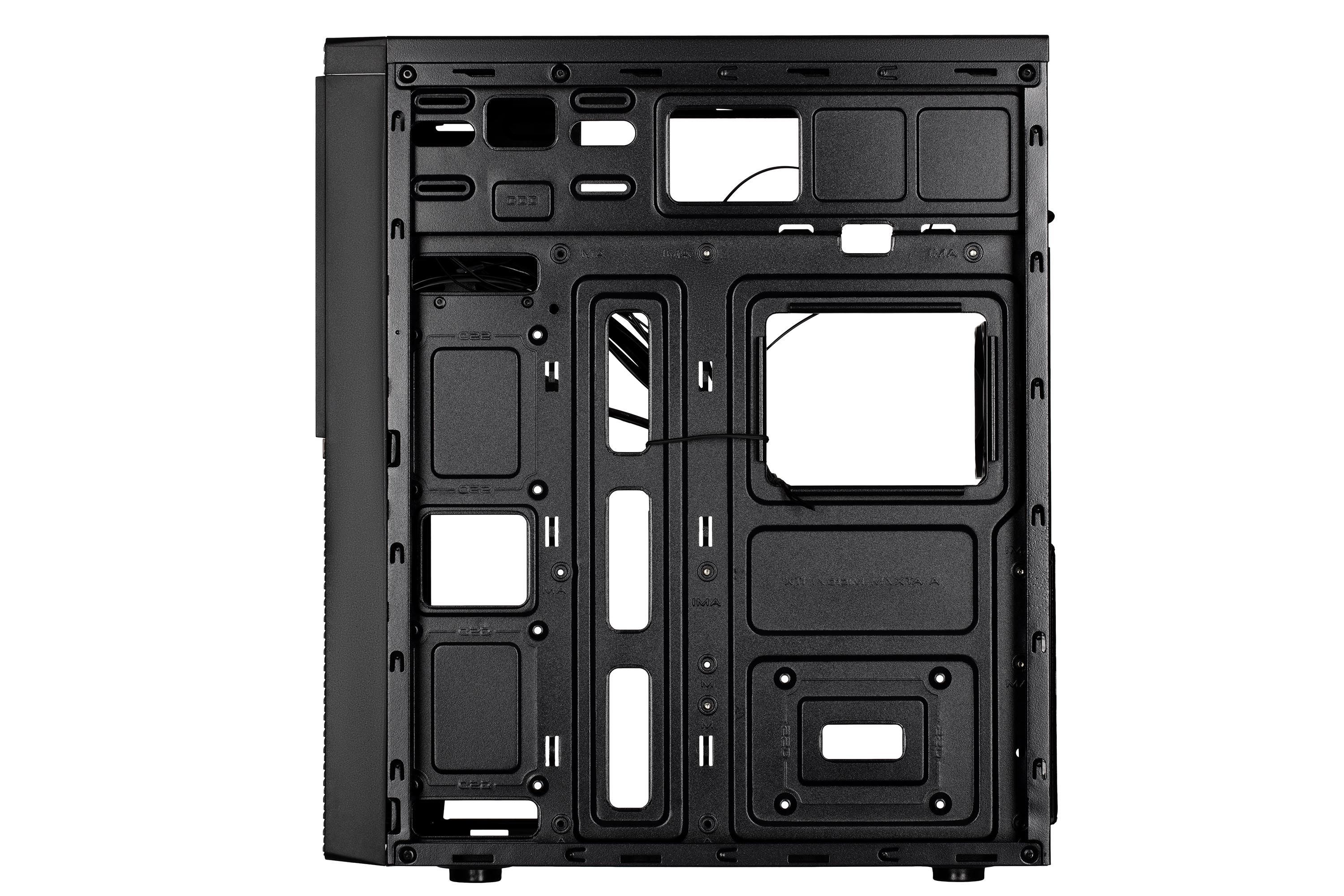

Inner part:
Location PS upper
Internal compartments 2.5" 3 4
Internal compartments 3.5" 2 pcs (1)
Holes for expansion slots 7 pcs
Power complete PSU without PSU
Cooling and airflow:
Installed fans 1 pcs (Задня панель)
12 cm Fan Support 4 pcs (Передня панель: 2х 120, Бокова панель: 2х 120)

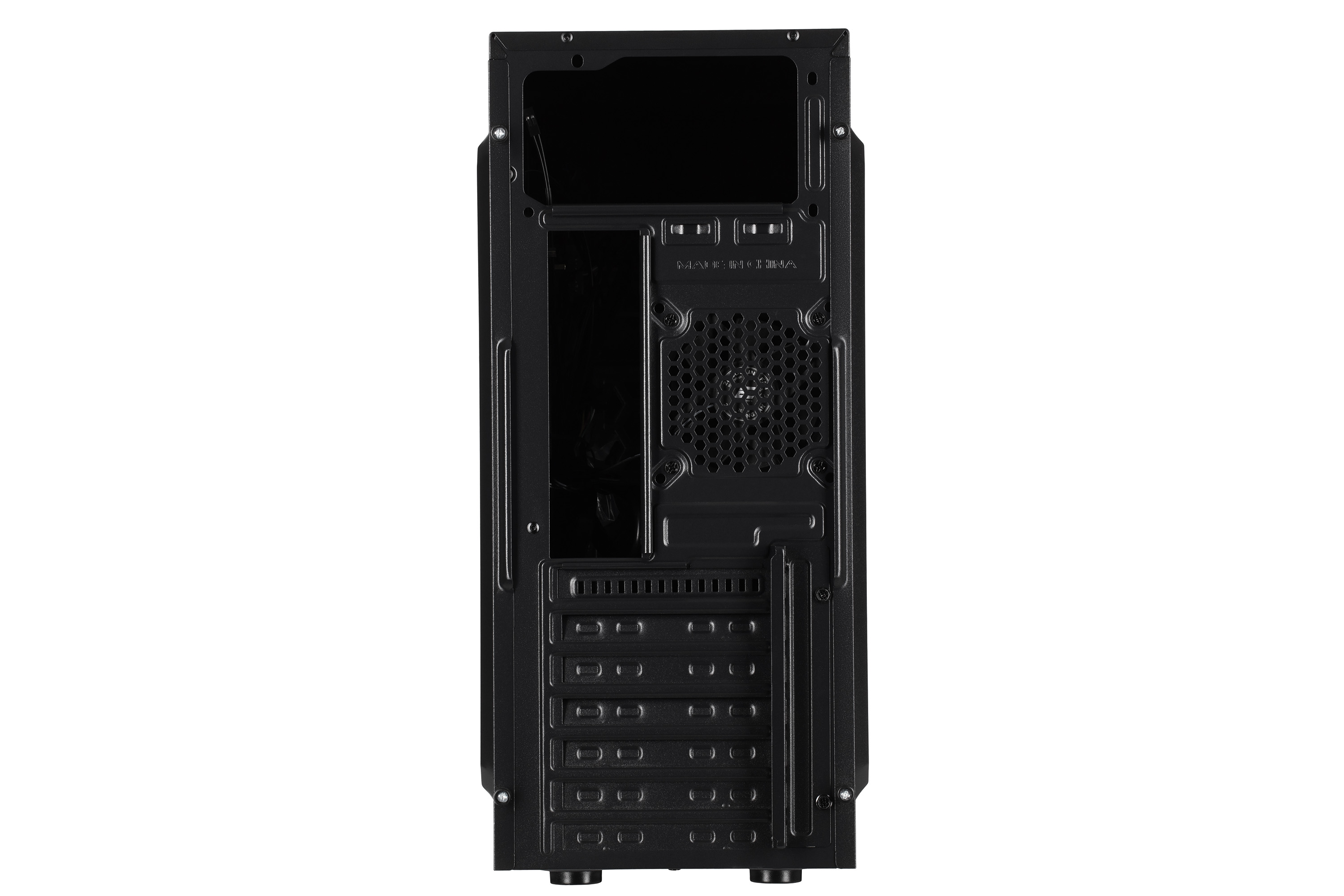

8 cm Fan Support 1 pcs (Задня панель: 1x 80 (90))

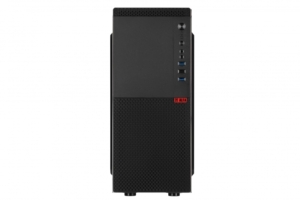

Connectors on the front panel:
USB 2.0 connectors 1 pcs
USB 3.0 connectors 2 pcs
Audio (microphone / headphone ) ✔️
Additionally:
Buttons Power / Reset / Power LED / HDD LED
Physical:
Material steel / plastic
Colour black
The weight 2.3 kg
Height 358 mm
Width 191 mm
Depth 418 mm
Contents of delivery set of fasteners / User's manual
Height of CPU cooler (max.) 148 mm
Maximum length of VGA 320 mm

Practicality

The 2E ALFA (2E-E130) is suitable for assembling a classic home or office system, as well as a mid-range budget workstation. The case provides space for 2(1) 3.5ʺ HDDs and 3(4) 2.5ʺ SSDs, as well as 7 expansion slots. The case is designed for installing a video adapter up to 320mm long and CPU cooling up to 148mm high. There is enough space for rational and convenient cable management, as well as for installing five fans: two 120mm fans on the front and side panels and one 80mm fan on the rear panel (included in the kit).

Optimal Configuration

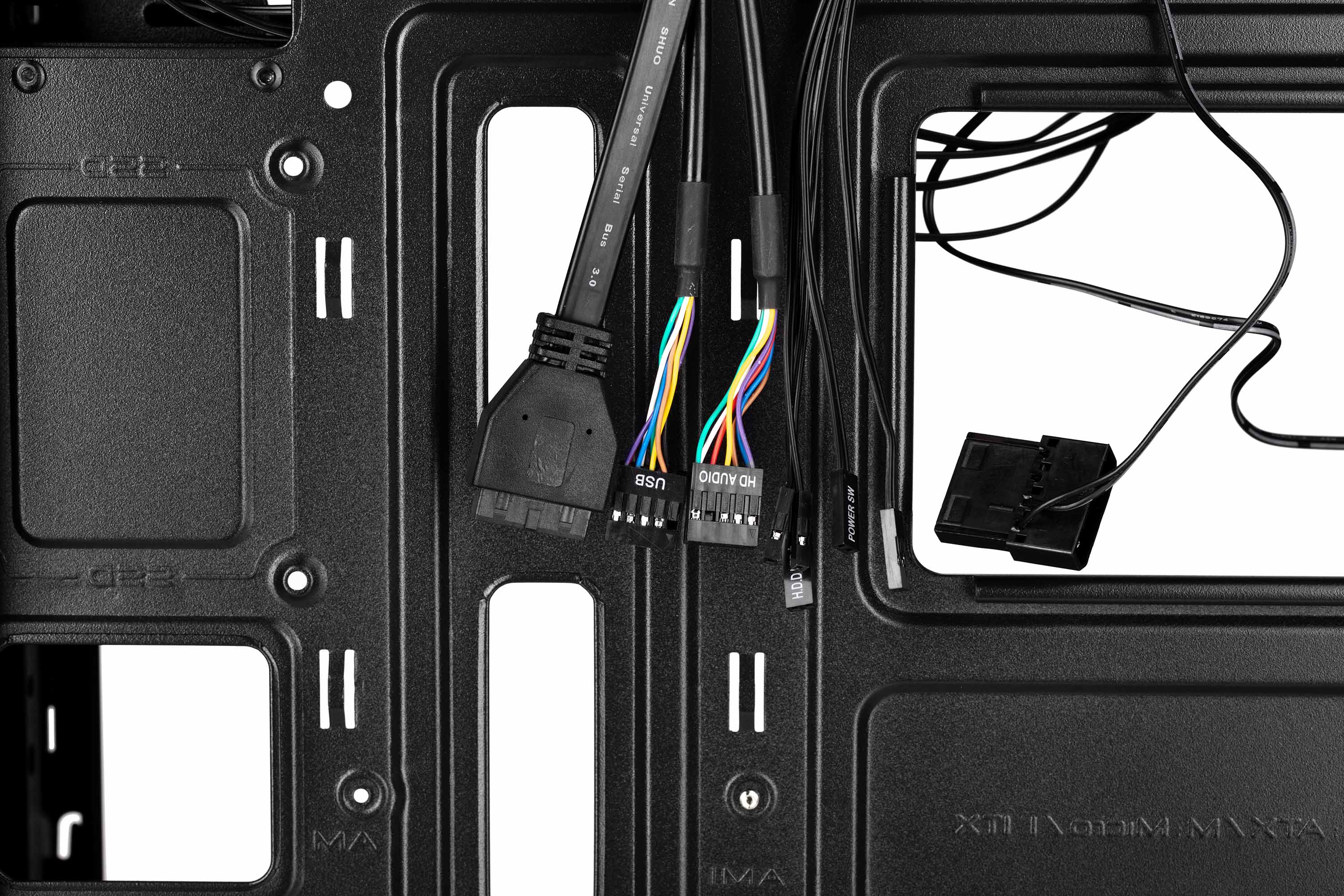

The case has an optimal set of standard connectors for connecting various external devices: 2 × USB 2.0, 1 × USB 3.0, HD AUDIO+MIC, as well as all the necessary buttons and indicators: Power, Reset, Power LED, HDD LED. The kit includes, in addition to the built-in 80mm fan on the rear panel, a 400W power supply (top mounted) with a cable, instructions and a set of fasteners.
