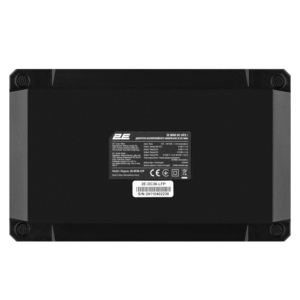

2E Mini DC UPS 36w, LFP

Product code: 2E-DC36-LFP

2E Mini DC provides uninterruptible power, charging of various devices, and supports PoE technology. Unlike traditional UPS units with an output voltage of 230V AC, this model has an output of 5–12V DC, making it compact, quiet, and convenient. Thanks to the 20,000mAh lithium iron phosphate battery, it ensures long-lasting backup power. It can be used for routers, video surveillance systems, smart home hubs, security alarms, voice assistants, and more. The presence of a USB port allows for charging smartphones, tablets, digital cameras, and other compatible devices.

2 502 uah.*
Main:
Device type standby/offline
View Computer and household UPS
Mounting type desktop
Input:
Input voltage 100-240V
Peak current 1 A
Output:
Output USB / DC / POE
Output voltage 12V (DC3: 3 А) / 5 V (USB, DC1: 3 А) / 24 V (POE: 1 А) / 48 V (POE: 0.5 А) / 9 V (DC2: 3 А)
Max. Output Power 36 VA
Battery:
Battery Type lithium iron phosphate (LiFePO4)
Battery capacity 20000
Physical:
Dimensions ( HxWxD ) 40 x 210 x 130
The weight 0.73 kg

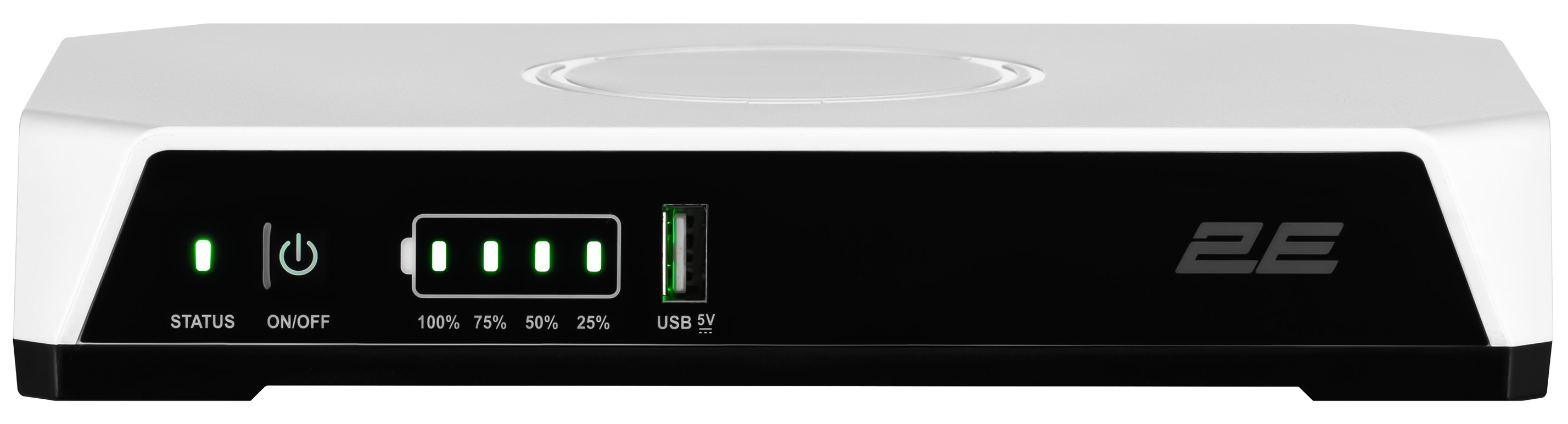

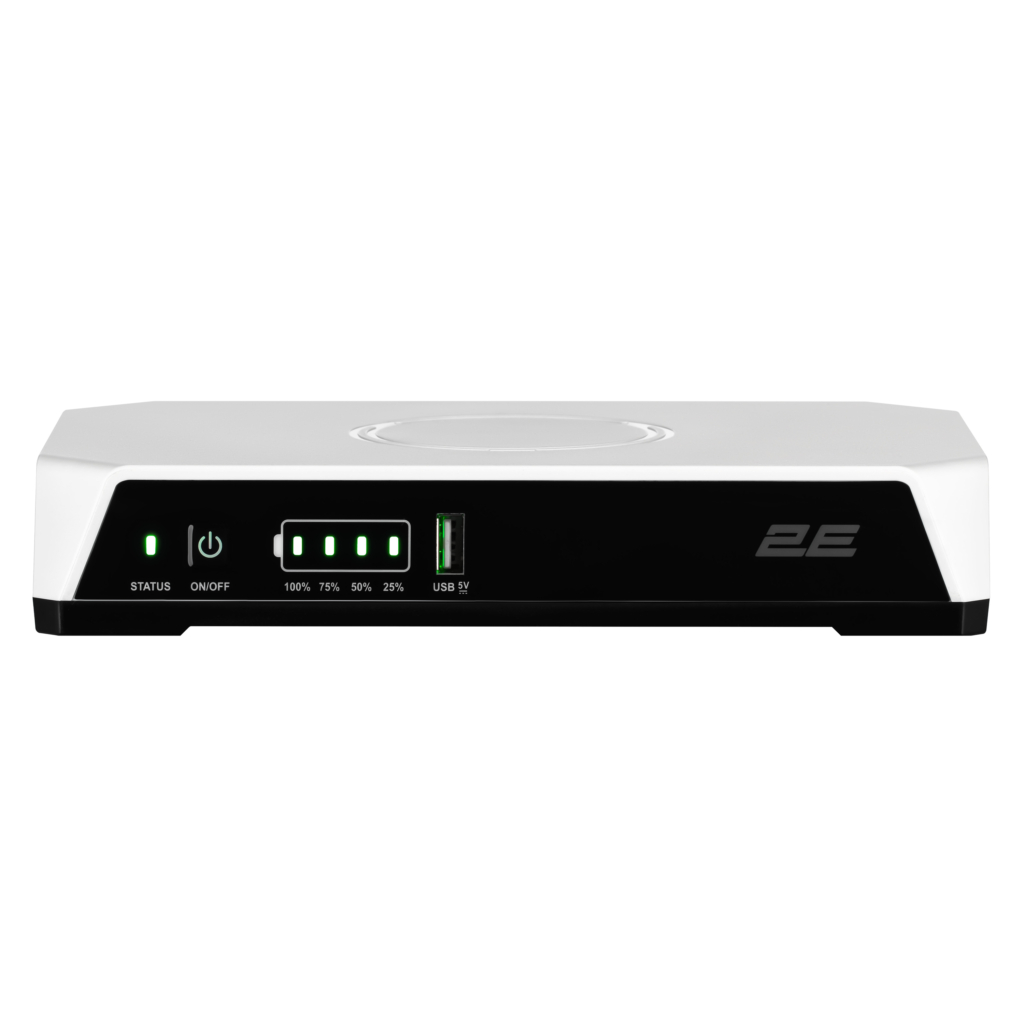

The model is equipped with indicators to monitor the battery status: LEDs show different charge levels – 25%, 50%, 75%, and 100%. There is also an indicator that signals the operational status of the device. The intelligent protection system prevents overcharging, deep discharge, and short-circuiting, ensuring durability and safety during use. The maximum output power is 36W. In addition, the UPS automatically shuts off the sockets if the power exceeds the permissible limit, preventing damage to connected devices. In the event of a power outage, the device automatically switches to battery mode, ensuring continuous operation.

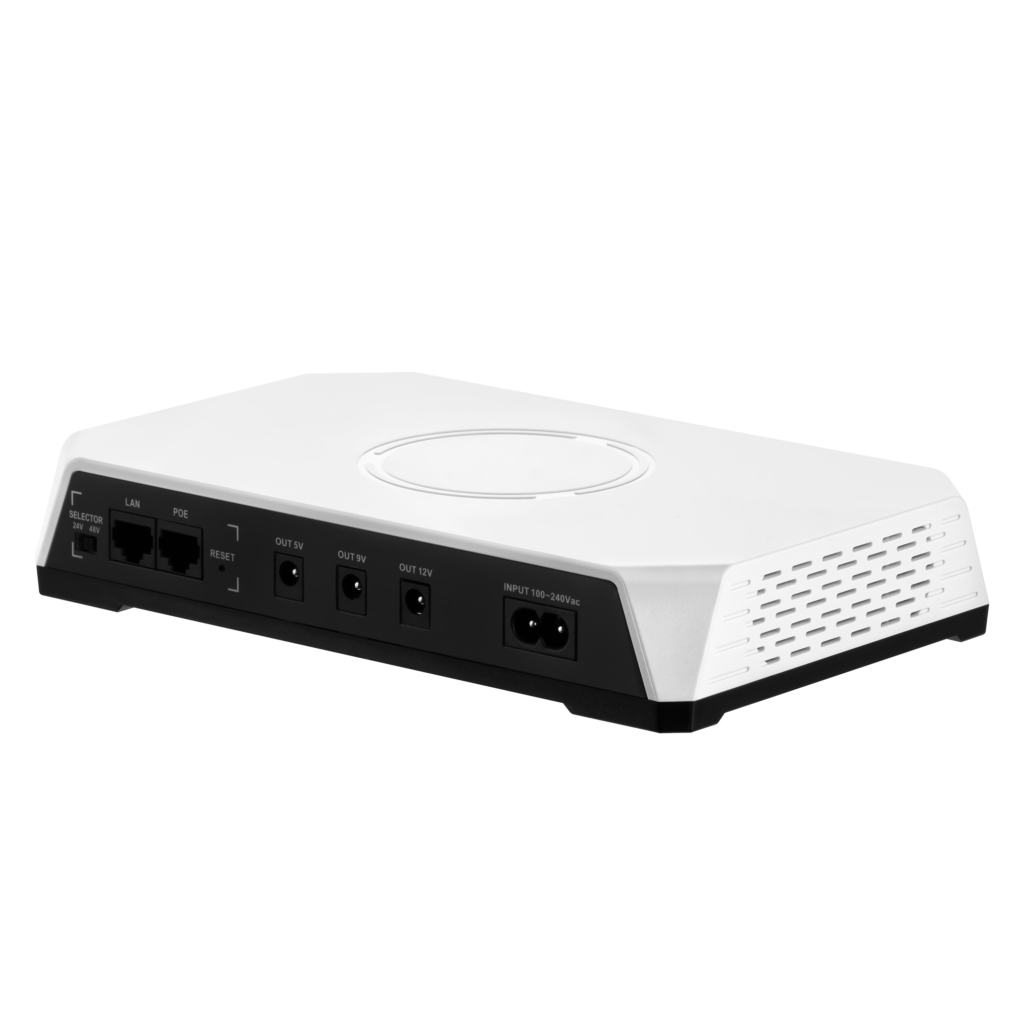

An important feature is the support for Power Over Ethernet (PoE) technology, which allows both power supply and data transmission simultaneously, simplifying setup and reducing the number of necessary cables. The design also includes the most essential interfaces:

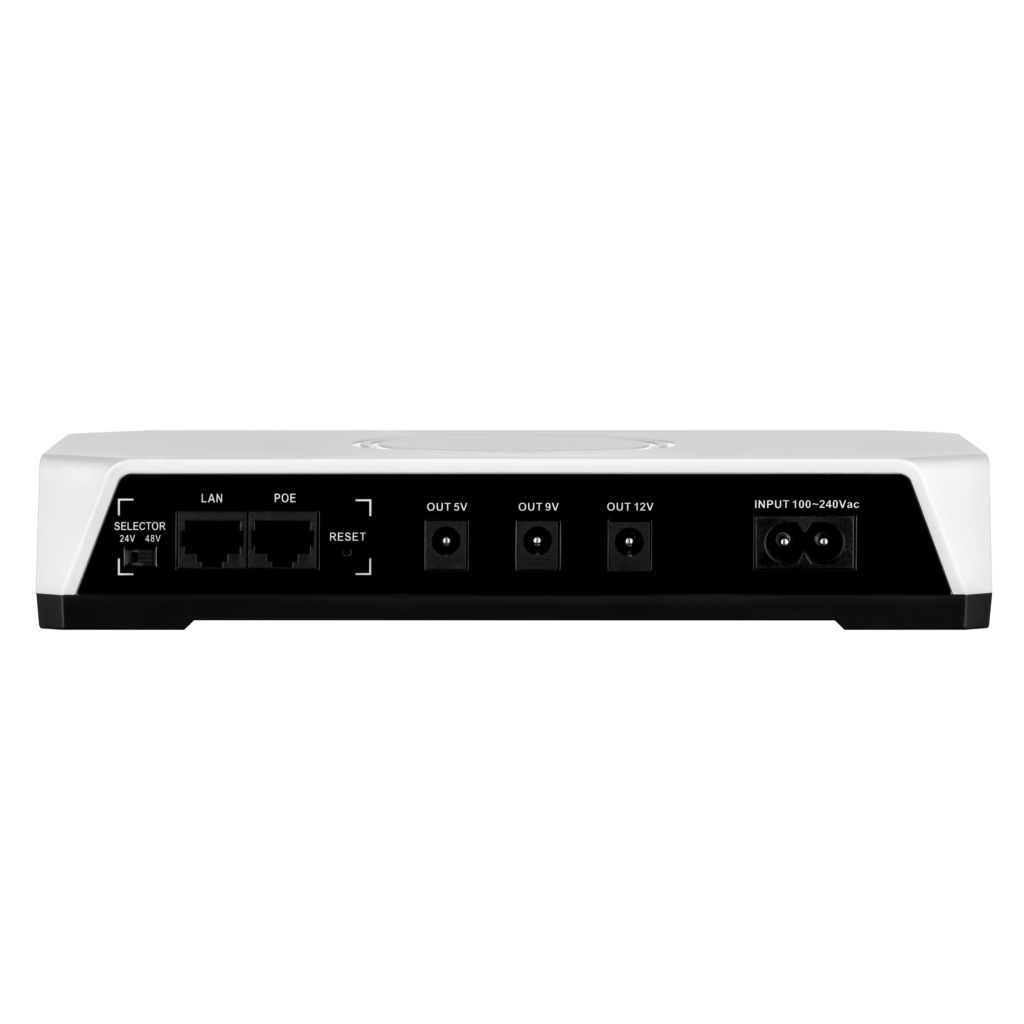

  • USB output port (5V DC): suitable for charging smartphones, tablets, etc.;
  • AC input port 100–240V, 1A: for connecting to a power source;
  • DC output ports (5V, 9V, 12V): for connecting devices with different voltage requirements;
  • Ethernet (LAN and PoE output 24/48V): for data transmission and power supply via a single cable;
  • PoE output voltage selector (24/48V): for precise adjustment of the output voltage based on the connected device's requirements.

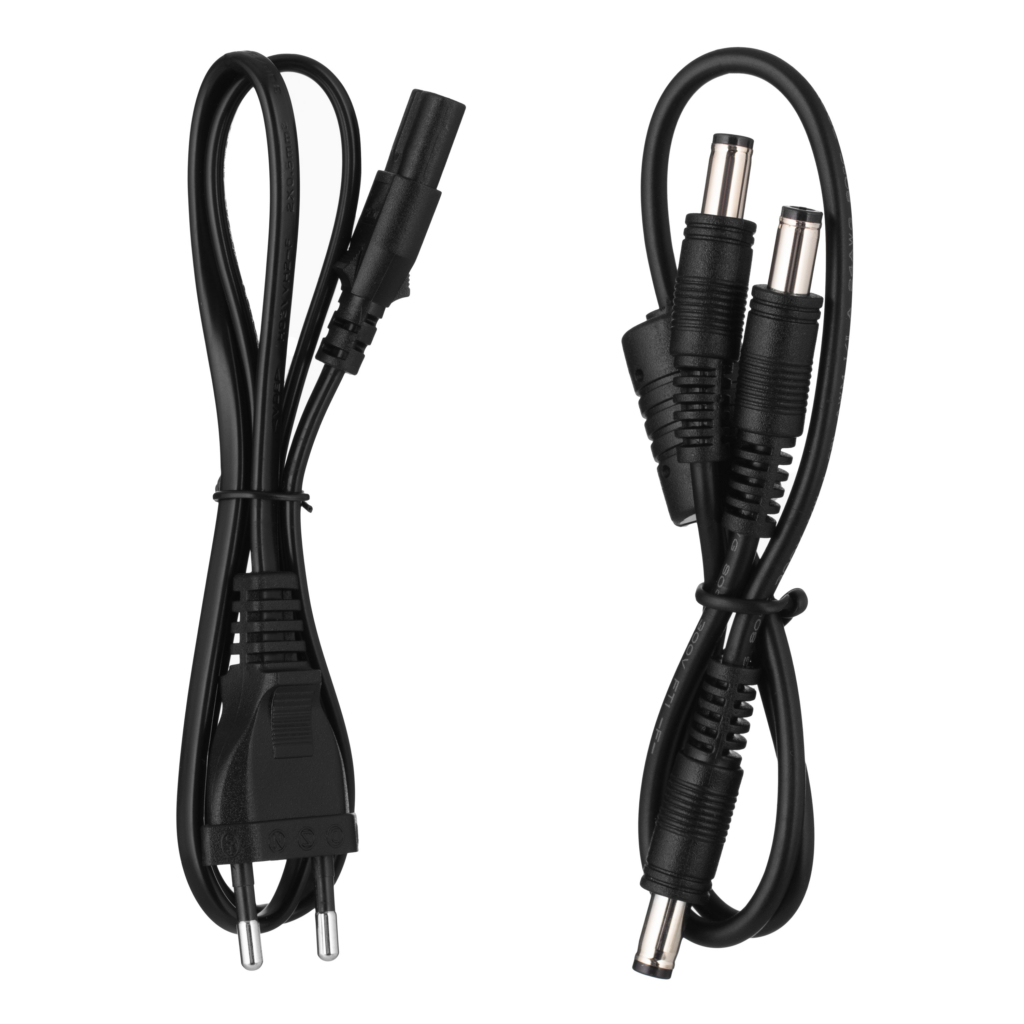

The UPS comes with all necessary accessories, including an AC power cable for connection to the network and a Y-cable for DC output, which allows you to connect devices to the UPS.
