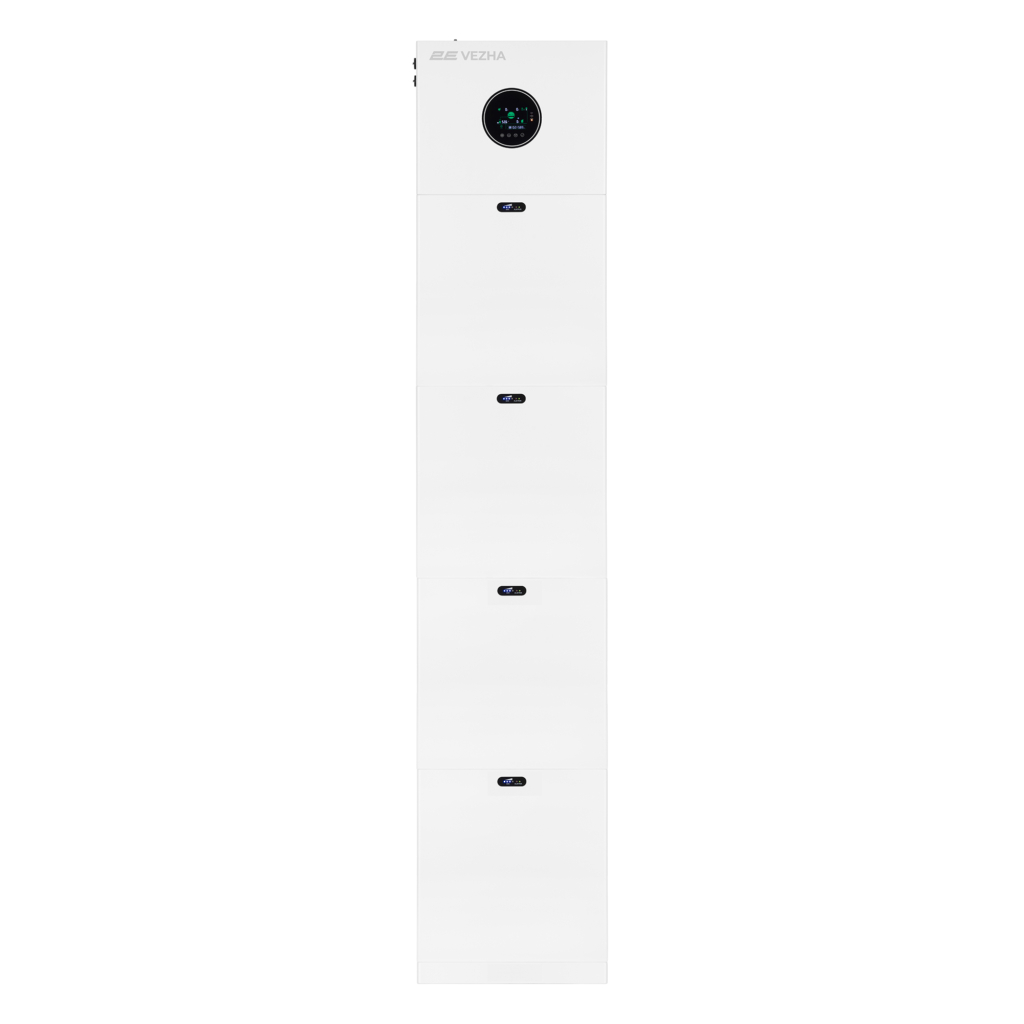

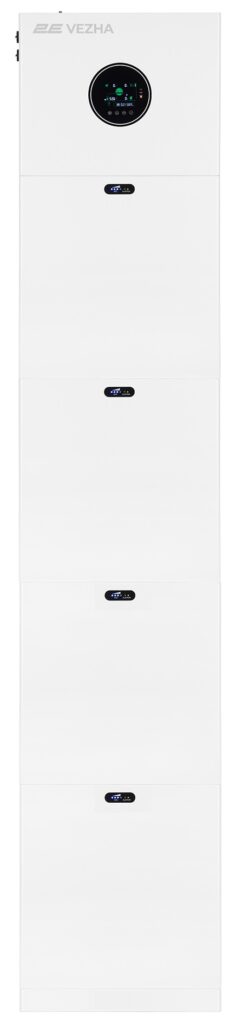

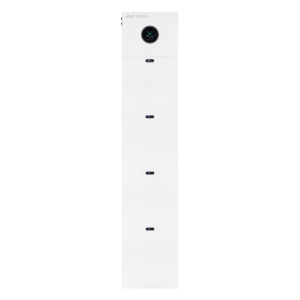

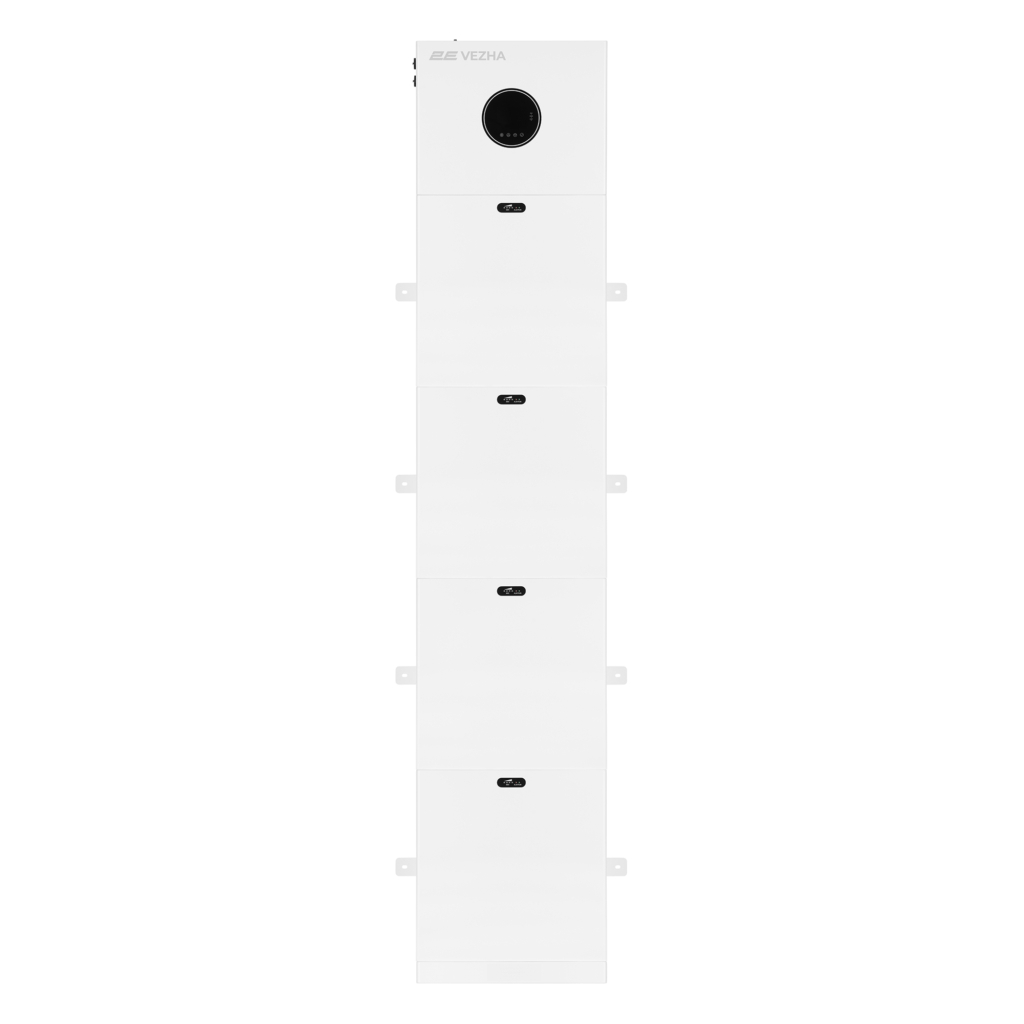

2E Energy Storage System Power Wall Vezha, 5000W, 20.48 kWh, WiFi

Product code: 2E-ESS-PWV5-20

The PowerWall VEZHA is a powerful new generation backup power system. Equipped with a 5,000W hybrid inverter, battery modules and a 5.5 kW MPPT controller, it supports charging from the grid and solar panels, selling energy to the grid and operating with multi-zone tariffs. The innovative wireless architecture, intelligent BMS, pure sine wave and 2E Smart Energy mobile app provide convenience, reliability and full control.

  • Powerful 5,000 W hybrid inverter
  • Wireless module connection
  • Four LiFePO₄ battery modules with a capacity of 5,12 kWh each with a lifetime of up to 6,000 cycles at 80 % DOD
  • Intelligent BMS
  • MPPT 5,500 W PV charging module
  • Parallel connection of up to 6 VEZHA units – increasing power up to 30 kW and capacity up to 120 kWh in single-phase mode
  • Wide MPPT voltage range from 120 to 450 V
  • Fast power switching < 10 ms
  • Pure sine wave with < 3 % distortion
  • Possibility to sell energy to the grid
  • Support for three-phase connection
  • Ability to operate with multi-zone tariffs
  • Remote control via the 2E Smart Energy app
  • IP20 protection class
199 999 uah.*
Main:
Type backup power system
Inverter Parameters:
Rated output power 5000 W
Maximum peak power 10000 VA
Power factor 1
Rated output voltage (VAC) 220
Frequency 50 Hz
Automatic switching time <10 ms
Harmonic distortions <3%
AC Input:
Maximum charging power from AC mains 3150 W
Maximum AC input current 60 A
Rated input voltage переменного тока VAC
Input voltage range 90~280 VAC
AC Output:
Rated output power 5000 W
Maximum output current 30 A
Frequency 50 Hz
Overload current 40 A
PV Input:
Type of charging from a photovoltaic panel MPPT
Maximum input power 5500 W
Maximum input current from the PV panel 100 A
PV panel operating voltage range 120~500 V
MPPT voltage range 120~450 V

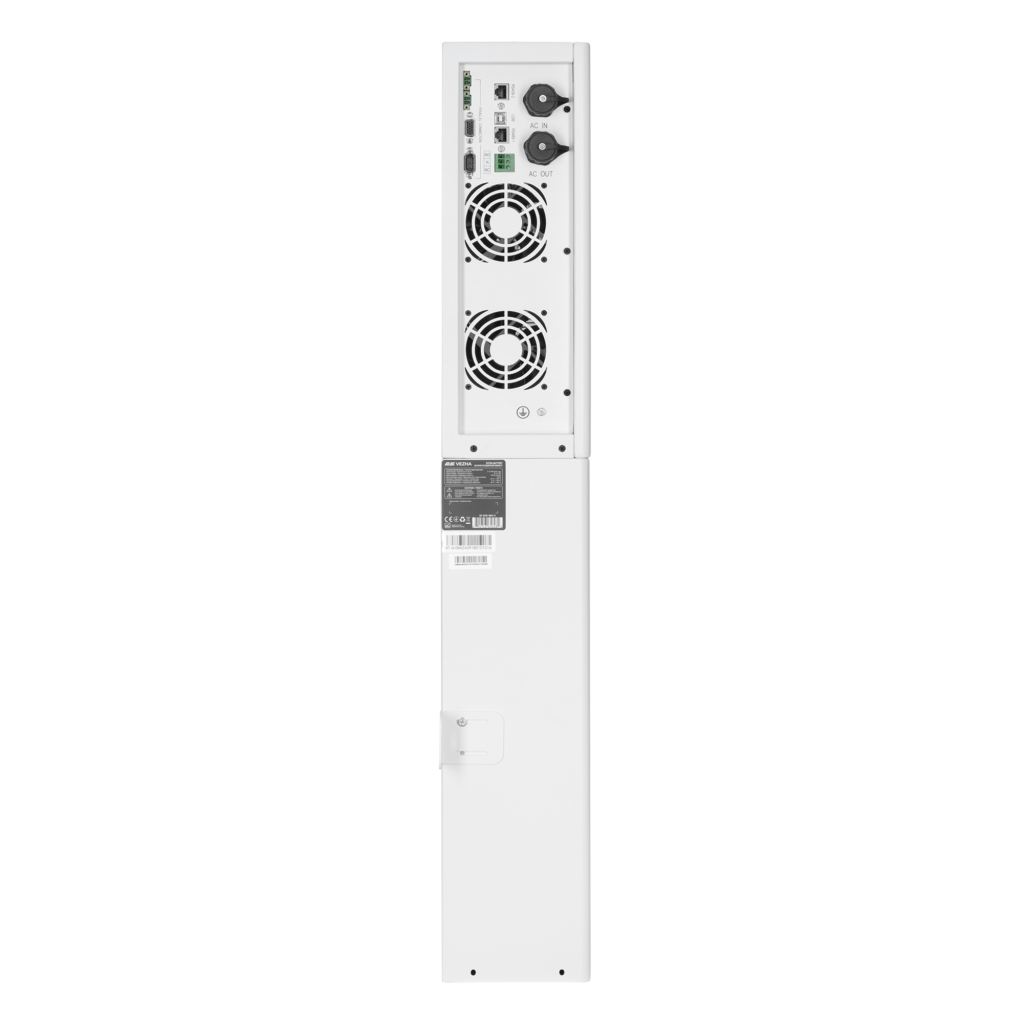

Inverter Physical Parameters:
Operating temperature range 15 °С ~ 55 °С
Storage temperature range -25 °С ~ 60 °С
Humidity range 5% to 95%
Rated operating height <2000 m
Cooling mode air cooling
Noise level 60 dB
Protection level IP20
Certification CE (EN62109-1)
EMC certification level EN61000
Weight 25 kg
Dimensions (LxWxH) 500 х 400 х140
Energy Conservation Module Parameters:
Battery type LiFePO4
Battery power 20.48 kWh
Battery capacity 100 A·h
Rated battery voltage 51.2 V
Battery operating voltage range 44,8 ~ 57,6 V
Standard charging current 50 A
Standard discharging current 50 A
Maximum charging current 100 A
Maximum discharging current 100 A
DOD discharge depth 80 %
Maximum number of parallel connected batteries 4
Estimated battery life 6000 cycles (80% DOD, 0.5C, 25°C)
Operating temperature charging: 0 ~45 °C / discharge: -10 ~45 °C
Operating humidity 5 % ~ 85 %
Rated operating height < 3000 m
Protection level IP20
Recommended operating environment rooms
Installation method vertically
Weight 45 kg
Dimensions (LxWxH) 500 х 500 х 140

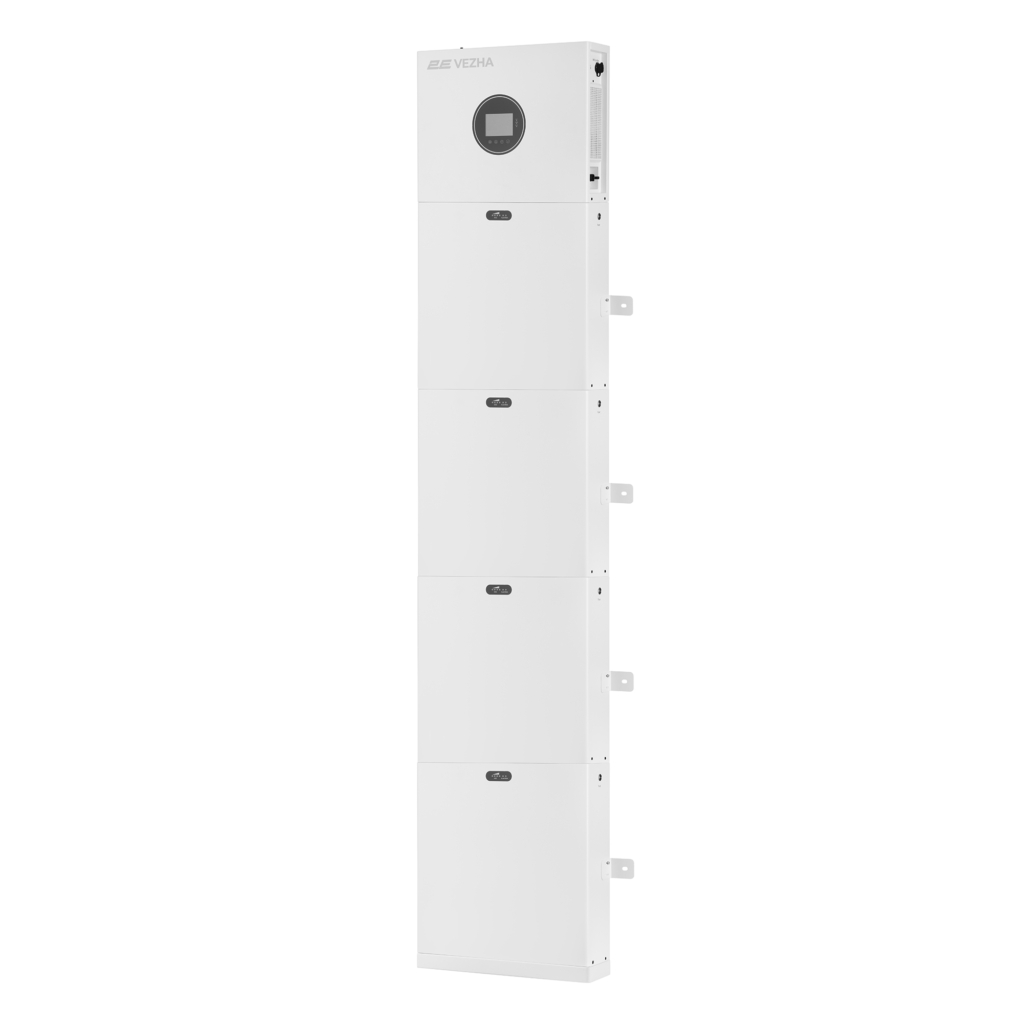

Impressive Compactness

The PowerWall VEZHA is designed to meet the needs of urban apartments, private homes and offices. With a housing depth of only 140 mm, it can be easily integrated into any room without disturbing the harmony of the interior. It has an elegant, modern and technologically advanced look, making it a successful design solution.

A Wire-Free System

One of the significant advantages of the VEZHA is the absence of conventional cables between the inverter and the battery modules. Thanks to the unique power interface, both energy and data are transmitted wirelessly. This not only simplifies installation, but also ensures maximum system safety, durability and reliability.

Powerful Lithium Iron Phosphate Energy Storage

The energy-saving component of the VEZHA is based on lithium iron phosphate (LiFePO₄) batteries. This is a new generation of battery technology that provides high energy efficiency, safety and stability. The module has a capacity of 5.12 kWh. The system includes up to four such modules, for a total of 20.48 kWh of energy available for power supply.

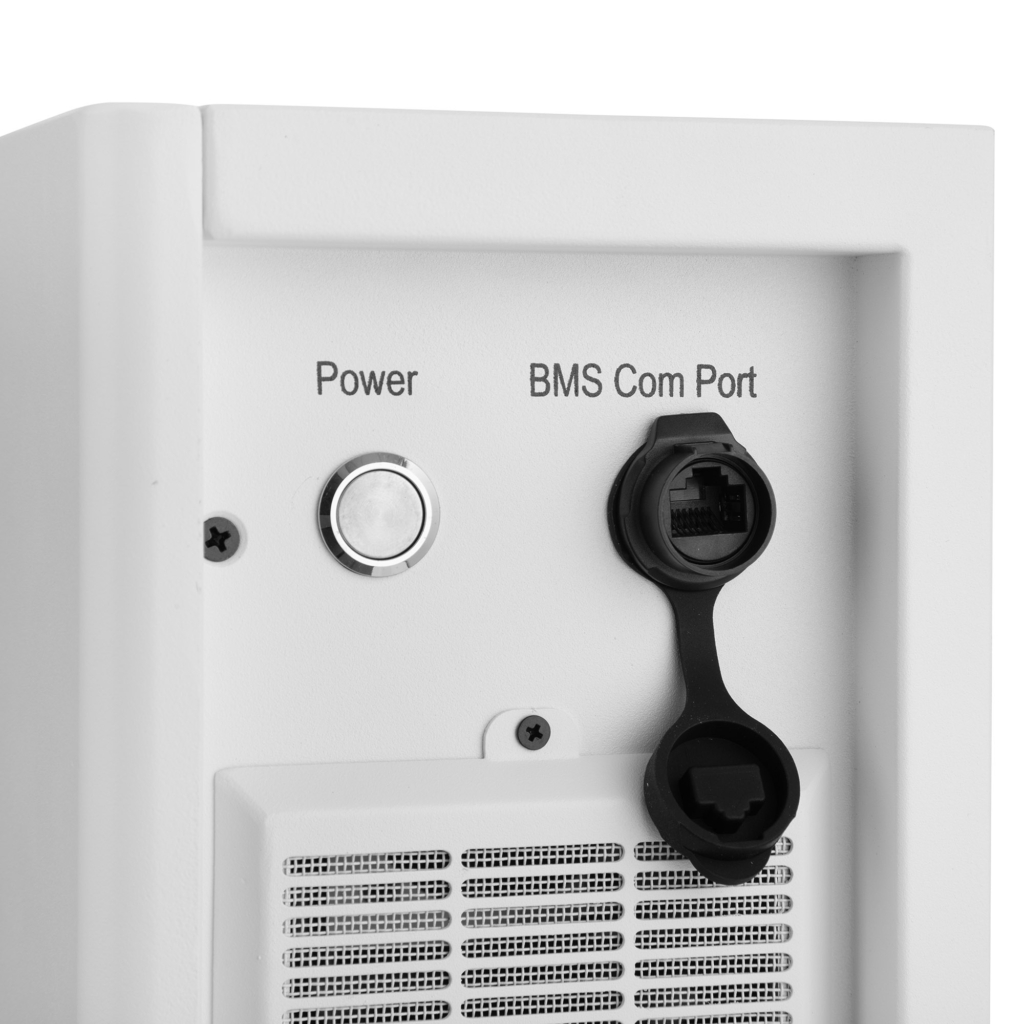

The integrated BMS (Battery Management System) controls each module individually and the entire battery: it monitors voltage, current, temperature, and protects against overvoltage, overheating and overload.

The New Generation Inverter: The Heart of the VEZHA System

The VEZHA inverter does more than just convert direct current to alternating current – it works as a multifunctional energy brain. It has a power output of 5,000 W with a peak output of 10,000 VA. It produces a pure sine wave with less than 3 % distortion, switches instantly in the event of a power outage (< 10 ms) and fully adapts to the needs of household appliances, servers, power tools and even high-power equipment.

The built-in dual digital control algorithms allow for precise voltage and current control, regardless of load or external conditions. The inverter operates over a wide input voltage range of 90 to 280 VAC, making it suitable for use even in unstable power grids.

MPPT Photovoltaic Module

The VEZHA is equipped with a 5,500 W MPPT (Maximum Power Point Tracking) module. Its function is to determine and maintain the maximum power point of the solar array in real time. This means that even in cloudy weather or in the evening, the system will operate as efficiently as possible, getting every available watt from the PV panels.

Tariff Scenarios

The intelligent multi-zone tariff function enables the VEZHA to recharge when it is most beneficial – at night or during the day using solar panels. The user can set the time intervals for charging and discharging the batteries, optimising costs, reducing the load on the grid and maximising benefits.

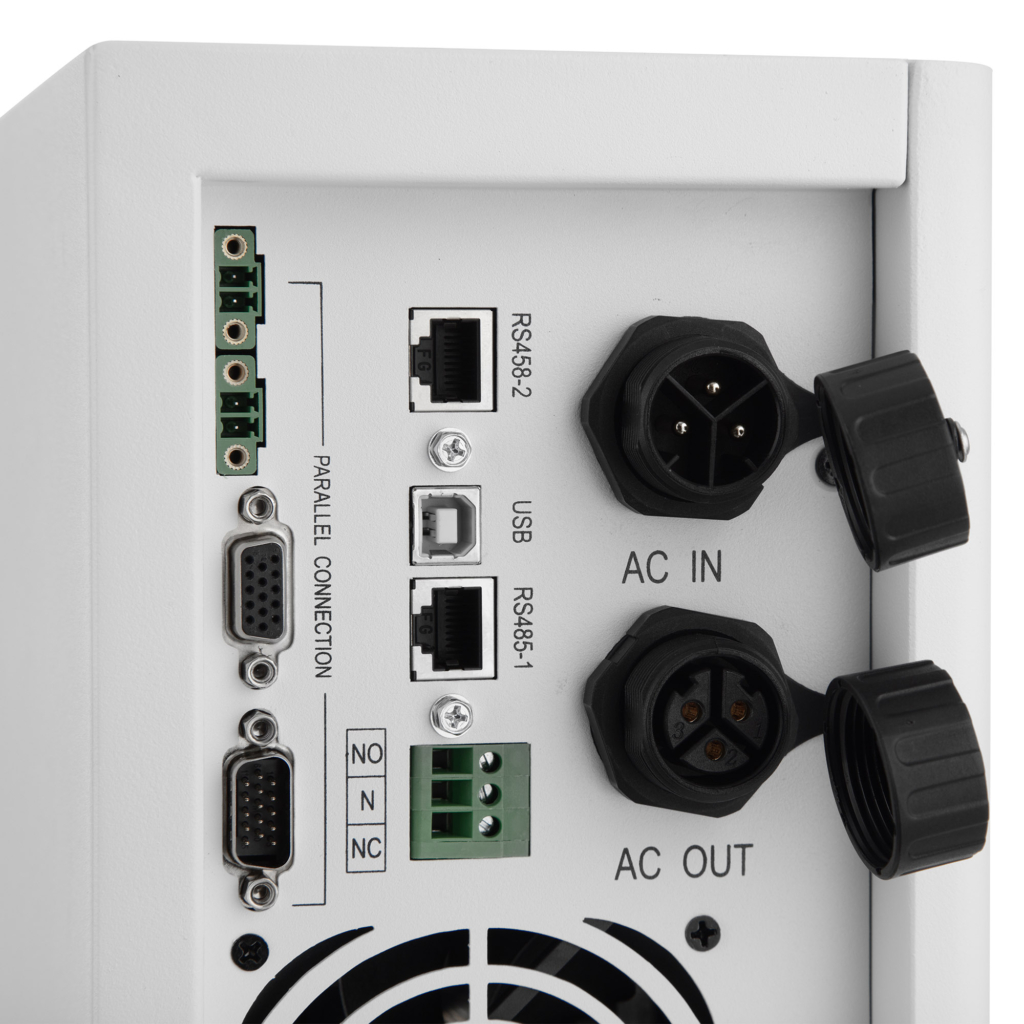

Ready to Scale: Parallel and Three-Phase Connection

For larger installations, the VEZHA is designed to be expandable. You can combine up to 6 inverter systems per phase – that’s 30 kW of power and up to 120 kWh of stored energy. And there is also the possibility of connecting to a three-phase system: three VEZHAs form one 380-volt three-phase station capable of providing power for large enterprises or residential complexes.

Control in the Palm of Your Hand: The 2E Smart Energy App

With the 2E Smart Energy mobile app (available for iOS and Android), you can always have information on how much energy is stored, what the load power is, what the solar output is, and the status of each module. The interface is clear, informative, and most importantly, it operates in real time.
