Мережевий фільтр 2Е на 5 розеток з вимикачем 3G1.5, 5м, білий

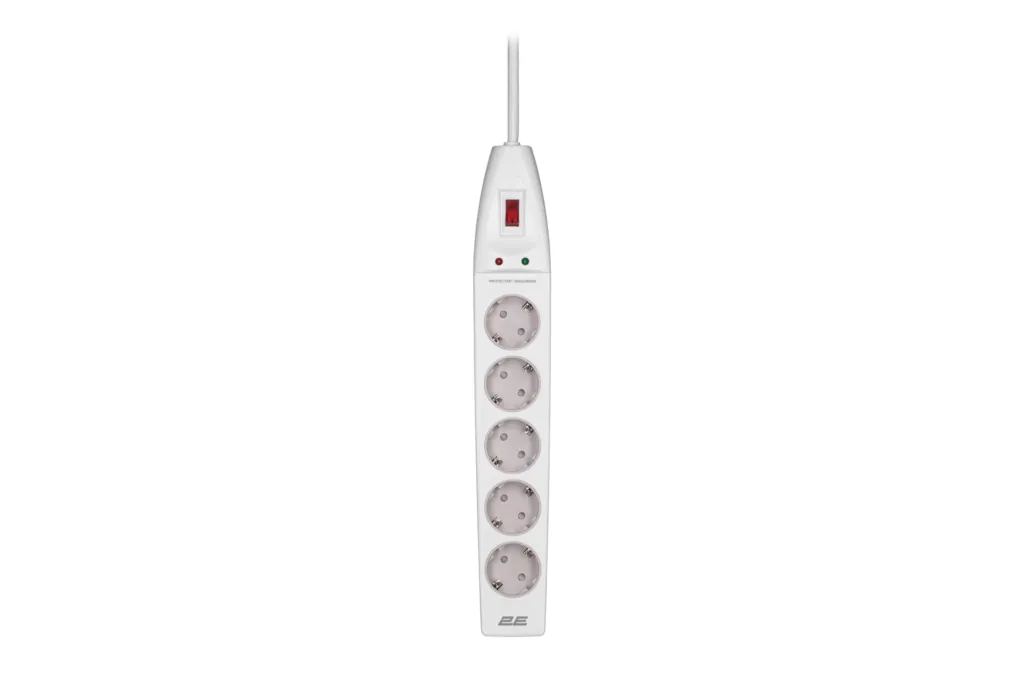

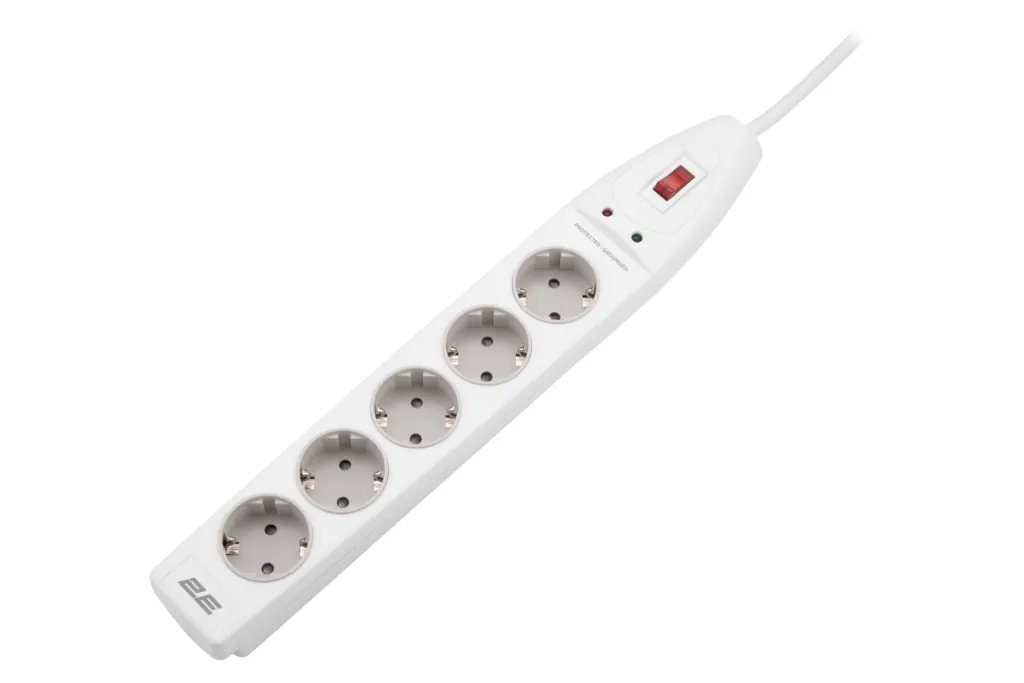

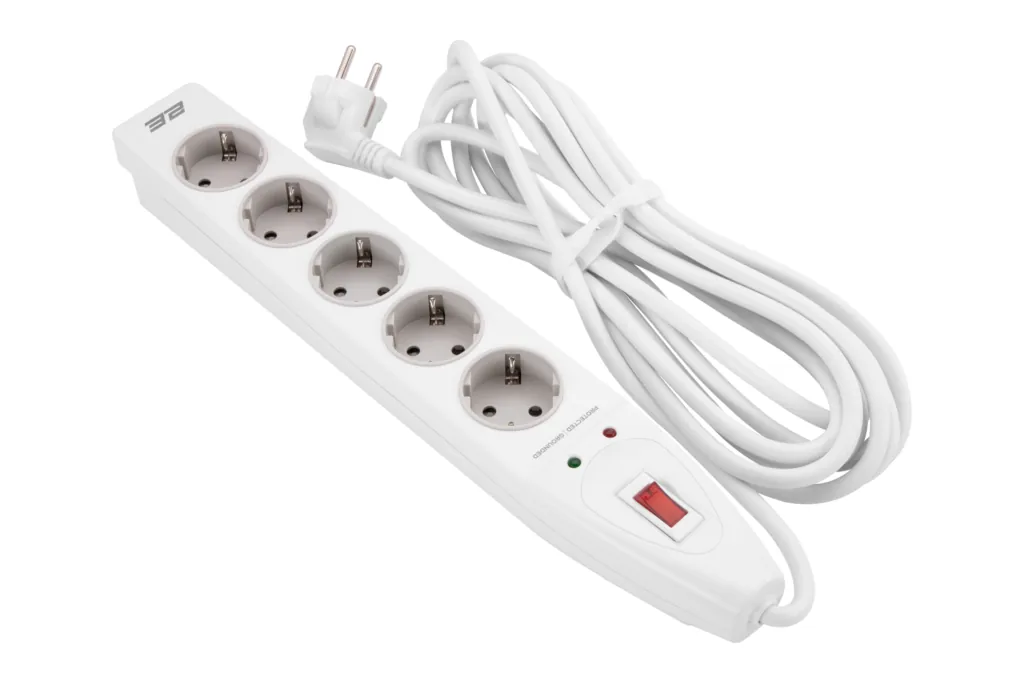

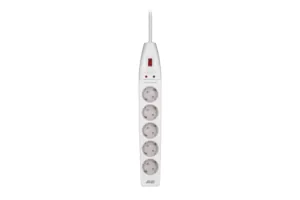

2E mains filter has five outlets located at an angle of 45° so that the plugs of the devices do not interfere with each other. The body is made of fire-resistant PC plastic, which provides high heat resistance and prevents the occurrence of fire. In the mains filter cable 5 m long, each core is insulated: three-core H05VV-F with a section of 1.5 mm. The conductor material is 100% copper. It is these features that determine the permissible device maximum load of 3,680 W. The maximum filter absorbing energy is 350 J.
- Макс. сила струму 16 А
- Макс. загальна потужність навантаження 3 680 Вт
- Макс. поглинаюча енергія фільтра 350 Дж
- 5 × Schuko
- Рівень захисту IP20, захист від дітей
- Вимикач живлення з LED- підсвічуванням
- Індикатори заземлення та захисту

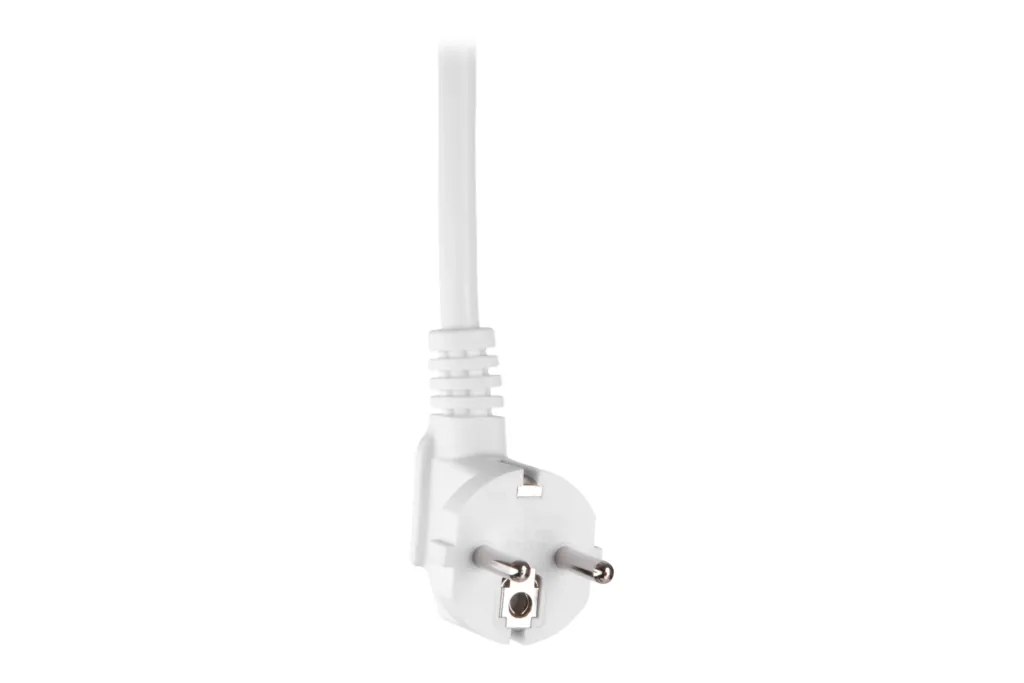

- Кабель H05VV-F 3G*1,5 мм (5 м), 100 % мідь
- Кріплення для монтування на поверхні
- Корпус із вогнетривкого PC-пластику
| Number of outlets | 5 Type F (Schuko) |
| Maximum load current | 16 A |
| Maximum connected load | 3680 W |
| Cord length, m | 5 |
| Key Features | Switching indication / Grounded |
| Switch | ✔️ |
| Maximum peak voltage | 250 V |
| Protection | Child Safety Protection / IP 20 |
| Cable type | H05VV-F3G1,5 |
| Rated voltage | 230 V |
| Material | ABS plastic |
| Colour | White |
| Dimensions | 44х6.7х4.3 |
- Max. current 16 A
- Max. total load power 3,680 W
- Max. filter absorbing energy 350 J
- 5 × Schuko
- Protection level IP20, child protection
- Power switch with LED backlight
- Grounding and protection indicators
- Cable H05VV-F 3G*1.5 mm (5 m), 100% copper
- Fasteners for surface mounting
- Fire-resistant PC plastic body

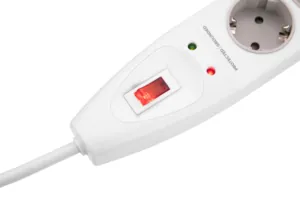

Moreover, the accessory has a switch with backlight that automatically disconnects devices in the event of a short circuit or power surge. The switch works almost silently, so if it is triggered at night, it will not disturb your rest.

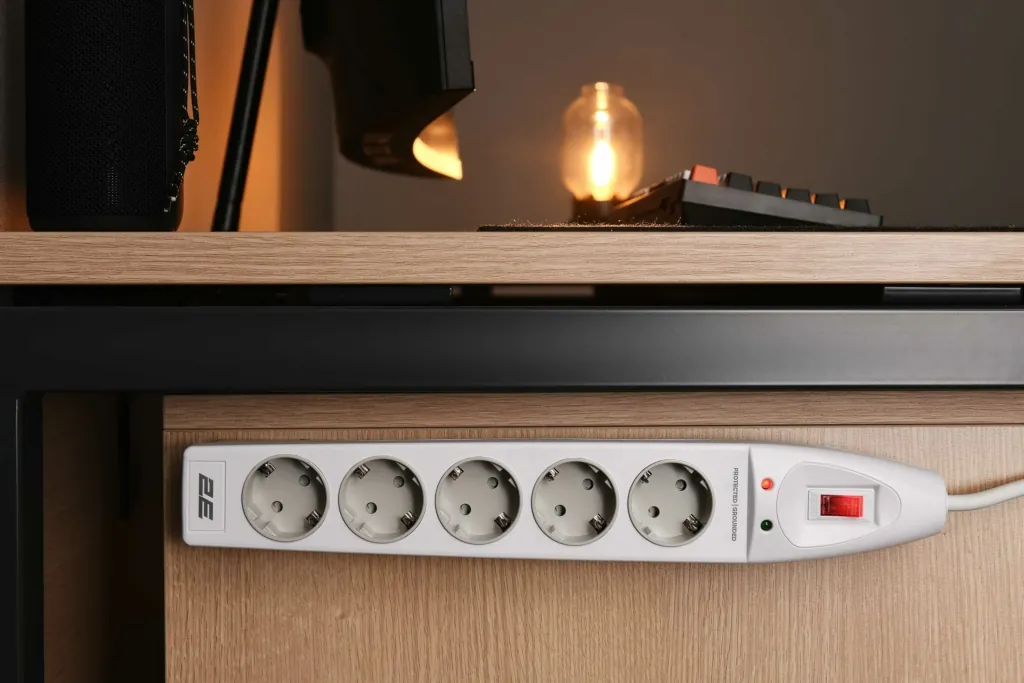

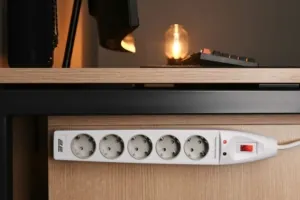

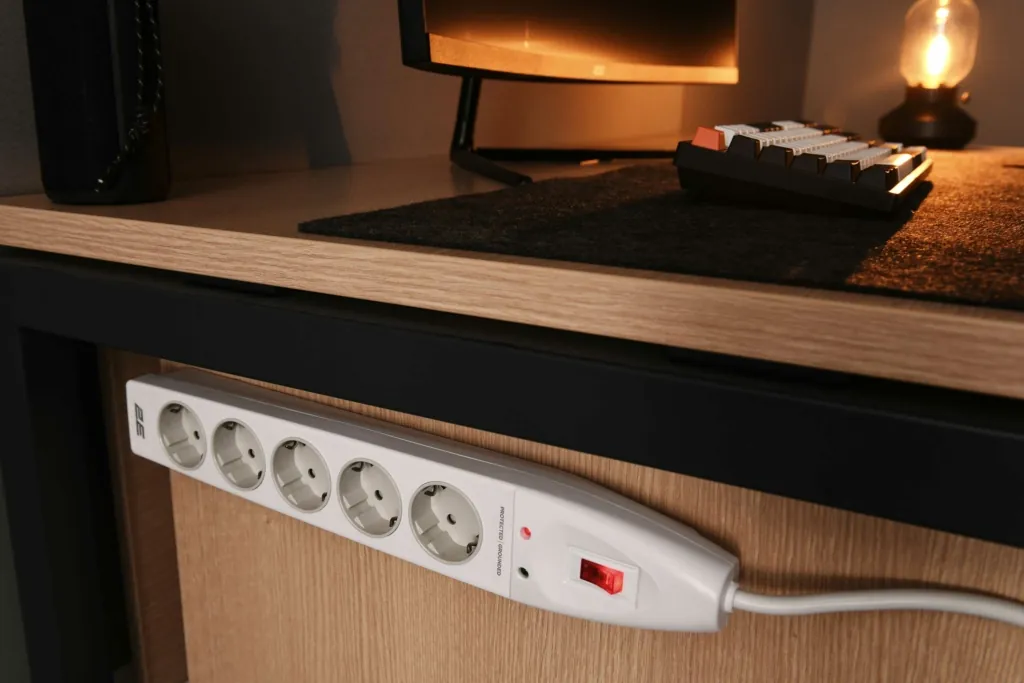

The protection function is implemented as follows: a panel with a fast-flowing varistor in the event of a voltage surge or overload melts and disconnects the power circuit. The case has two LED indicators – grounding and mains stability, it also provides children protection (protective curtains) and fasteners on the back for mounting on vertical or horizontal surfaces. Ergonomic design and neutral white are a guarantee that the device will fit into any interior: both office and home. Reliability and attractive design are successfully embodied in 2E SP515M5WH mains filter.
